Specifications
Conductor Material :
Copper Clad Aluminum
Insulation Material :
PTFE
Model Number :
F4DGP
Brand Name :
Sanco Cable
Place of Origin :
Hunan, China
Application :
heating, Instrumentation is used for signal control connections
Conductor Type :
Stranded
Type :
Insulated
Product name :
Tempreture Insulated Heat Resistant Electric Wire 1Mm 200 Degree
Other Name :
200 Degree High Temperature Cable
Working Temperature :
-60℃~+180℃
Insulation :
PVC Insulated
Jacket :
Nylon Sheathed
Rated voltage :
AC 250V or lower
Color :
Customized
Standard :
Q(L)/XL330-2009
Core number :
Multi Core
MOQ :
1000
Description

Heat Resistant Electric Cable 200 Degree High Temperature Wire

Product Description

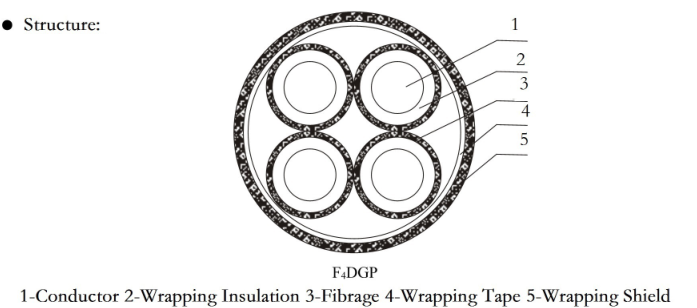

1.F4DGP Type PTFE Film Insulation Polyester Fiber Braided Silicone Cable

2. Application: It is used in the singal control connection of power transmission and instrument

3.Feature: Light weight, fine flexibility, high and low temperature resistance, anti-high temperature, anti-interference

4. Working temperature: -60°C~+180°C

5. Rated voltage: AC 250V or lower

6. Executive standard: Q(L)/XL330-2009

Heat Resistant Electric Cable 200 Degree High Temperature Wire

Specification Core No.* Cross Section Area(mm²)

Conductor Structure No. of pieces/diameter(mm)

Max.Outer Diameter of Wire(mm)

Reference Weight(kg/km)

Max. DC Resistant at 20°C(Ω/km)

1*0.5

63/0.10

2.6

14.2

42

2*0.5

4.8

29.4

4*0.5

5.7

44.5

2*4+2*05

49/0.32; 63/0.10

11.7

140.0

4.95; 39.0

2*2+2*0.5

19/0.37; 63/0.10

7.0

85.6

10.0; 39.0

2*1.0

32/0.2

6.6

63.6

20.5

2*1.5

30/0.25

7.0

78.0

13.3

10*0.35

19/0.16

9.0

133.0

50.9

1*8.0

133/0.28

7.4

132.0

2.37

1*16

133/0.39

10.0

198.0

1.24

2*6

49/0.39

12.0

207.0

3.08

Our Customer

Heat Resistant Electric Cable 200 Degree High Temperature Wire

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.

Heat Resistant Electric Cable 200 Degree High Temperature Wire

Why Choose us

Heat Resistant Electric Cable 200 Degree High Temperature Wire

Awards and Merits

We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:

No.

Item

Faulty Products

Our products

1.

Length

Insufficient length

Sufficient

2.

Wire drawing

thick at both ends and thin in the middle

Same from beginning to end

3.

Conductor

copper clad aluminum ,Copper clad brass

99.999% pure copper

4.

Insulation

Recycled compound

Virgin compound

If you want to know how to identify,welcome click here

Our Service

1.Free technical consultation service before, during, and after sales,help customers to choose right product

2.Free sample and design services

3.Fee service for any special monitor and conduct detection during manufacture process

4.Provide 100% free insurance for internal transportation;

5.OEM & ODM is welcome

6.Small order can be supplied

Packing & Shipping

Heat Resistant Electric Cable 200 Degree High Temperature Wire

100m/coil with

non-woven bag

200m/Roll with film500m with wooden drum

800m with

wooden iron drum

Packaging of wire

1• Plyethylene film winding in roll with non-woven bag or carton box for small diameter wires(100m/roll)

2• Packing in drum with plastic tray(300m/drum)

3• Wooden drums,fumigated wooden drums,Wooden iron drums for large diameter cable(500/drum)

• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
FAQ

Heat Resistant Electric Cable 200 Degree High Temperature Wire

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
