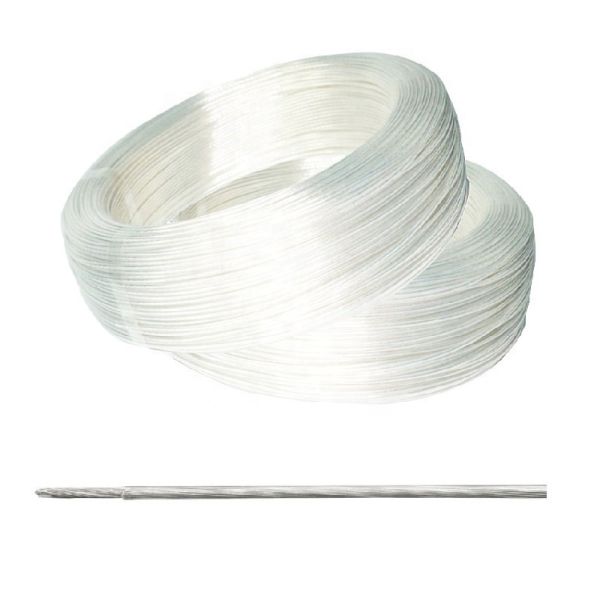

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire
Specifications
Conductor Material :
Tinned or silver plated
Insulation Material :
FEP
Model Number :
AF-200
Brand Name :
Sanco cable
Place of Origin :
Hunan, China
Application :
For electronic devices and appliances
Conductor Type :
Stranded
Type :
Insulated
Product name :
Extruded FEP Insulated Wire
Features :
High temperature resistance
Conductor materials :
Tin or Silver plated
Rated Voltage :
AC1000V 600V 250V
Color :
Single color or Two colors
Core No. :
Single core
Wire gauge :
32~10 gauge
Shield :
Tinned Copper Shielding
Customized product :
Available as per technical data
Service :
OEM ODM Accept
MOQ :
200
Description

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Product Description

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

About FEP Wire:

FEP wire is a type of fluoroplastic insulated wire,It has very similar properties to PTFE and PFA such as low friction and non-reactivity to chemicals.

1. FEP wire corrosion resistance is exactly on par with PTFE’s. As a result, it stands up to caustic agents in the same way. Its pure carbon-fluorine structure and its fluorination enable it to resist corrosive situations. In particular, FEP coated cable withstands exposure to detergents far better than PTFE does.

2. FEP has a lower melting point than other cable materials like PTFE and PFA. The exact point hovers at around 200°C.

3. Electrically speaking, only PFA outdoes FEP wire. That means the material has one of the highest dielectric strengths available. At the same time, FEP dissipates at a rate that is six times that of PFA. The end result is that FEP better conducts electrostatic fields non-linearly.

4. When cable leads are made of FEP, they exhibit outstanding chemical, fluid, age, and ozone resistance.

5. If you have welding requirement on wire’s connection,Tinned Copper FEP wires are recommendated

Application:

The Fep insluated wire is used as a inner circuit connector in hight temperature of aircraft,spacecraft,armor vehicles,missile bodies,ship nacelle and various electric appliance.

In the electronics industry, it can be used for temperature compensation conductors, low-temperature conductors, high-temperature heating conductors, anti-aging wires and flame retardant wires;

In the household appliance industry, can be used in air conditioner, microwave oven, electronic sterilization cabinet, electric rice burger, electronic thermos, electric heater, electric oven, electric frying pan, lamp lighting and other internal wiring.

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Working Contidion:

Insulation: FEP insulated

Conductor: Solid core or stranded silver plated copper or tinned copper wire

Shielding:Tinned copper wire weave shielded(optional)

Temperature range:-65C~+200ºC

Rated voltage:1000V 600V 250V

Color:10 basic colors(transparent,black,brown,red,orange,yellow,green,blue,grey,white,violet)

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Type and Name:

AF-200 Silver coated copper core high temperature FEP cable
AF-200-1 Tinned copper core FEP insulation cable
AFP-200 Tinned or silver coated copper core FEP insulated shielding cable
AFS-200 Tinned or silver coated copper core FEP insulated stranded cable
AFSP-200 Tinned or silver coated copper FEP insulated stranded shielding cable

Cable structures and specification:

Wire gauge Cross-section area Conductor structure Max. OD of cable(mm)
AF-200
AF-200-1		 AFP-200
AWG mm2 mm 250V 600V 250V 600V
36AWG 0.013mm2 7/0.05 0.65 0.85 1.1 1.3
32AWG 0.035mm2 7/0.08 0.75 0.95 1.2 1.4
30AWG 0.05mm2 7/0.10 0.85 1.05 1.35 1.6
28AWG 0.07mm2 7/0.12 0.9 1.1 1.4 1.65
- 0.1mm2 7/0.14 1 1.2 1.55 1.75
26AWG 0.14mm2 7/0.16 1.1 1.3 1.65 1.95
24AWG 0.2mm2 19/0.12 1.2 1.4 1.75 1.98
- 0.3mm2 7/0.23 1.25 1.48 1.8 2.05
22AWG 0.35/0.40mm2 19/0.16 1.4 1.6 1.95 2.2
20AWG 0.5mm2 19/0.18 1.6 1.8 2.2 2.4
- 0.6mm2 19/0.20 1.75 1.98 2.3 2.5
- 0.75/0.80mm2 19/0.23 1.8 2.1 2.4 2.6
18AWG 1mm2 19/0.26 2 2.2 2.6 2.9
16AWG 1.2mm2 19/0.28 2.2 2.4 2.8 3.1
- 1.5mm2 19/0.32 2.4 2.6 3.1 3.3
14AWG 2mm2 19/0.37 2.7 2.9 3.4 3.6
- 2.5mm2 37/0.30 3.4 3.6 4.2 4.4
12AWG 3mm2 37/0.32 3.6 3.8 4.4 4.6
- 4mm2 37/0.37 4 4.2 4.8 5.1
10AWG 5mm2 37/0.41 4.5 4.7 5.3 5.6
- 6mm2 37/0.45 4.8 5 5.7 5.9
8AWG 8mm2 133/0.28 6 6.5 6.8 7.3

Noted:Specification and core no. are not limited to above regulation,they could be customized.

Company Informations

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Factory

Shenzhou Special cable is a reputed manufacturer of military and consumer cables.Our main products:

1.High temperature wires,PTFE wire,ETFE wire,PFA wire,FEP wire

2.Robot cable,Drag chain cable,PUR cable,TPU cable

3.Hook up wire,electronic wire

4.Control cable,power cable and so on

Team

To meet customer's demand,we have:

1.Advanced R&D staff

2.Professional transport team

3.High-quality engineering installtion team

4.Professional talented technicians group

5.International sales department:6 person

6.Domestic sales:15 person

7.QC team

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Workshop

1.Production line:9 line

2.Month production capacity:90000m

3.Production workers:about 250 persons

3.Annual production capacity:RMB20million

4.Advanced electrical,chemical and mechanical properties test equipment

Warehouse

More than 600 square meters finished product warehouse.T

The cable materials produced by ourselves.

1.Low smoke zero halogen compounds

2.Xlpe compound

3.Soft PVC compound for cable insulation or sheath

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Product test

We focus on quality, Over the past years, our company serously carries out its responsibility for product quality,guarantees repair,replacement and return for product that has quality problem during manufacture,and compensates for direct economic loss caused by quality problem.

Our Customer

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen India....More than 20 years experience in cable production,hope that our profession and high quality service will bring you success and satisfied purchasing experience.

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Why Choose us

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Awards and Merits

We are a stable wire and cable supplier of China's aerospace and military,Customer satisfition is our primay aim.More details pls refer to below form:

No.

Item

Faulty Products

Our products

1.

Length

Insufficient length

Sufficient

2.

Wire drawing

thick at both ends and thin in the middle

Same from beginning to end

3.

Conductor

copper clad aluminum ,Copper clad brass

99.999% pure copper

4.

Insulation

Recycled compound

Virgin compound

If you want to know how to identify,welcome click here

Our Service

1.Free technical consultation service before, during, and after sales,help customers to choose right product

2.Free sample and design services

3.Fee service for any special monitor and conduct detection during manufacture process

4.Provide 100% free insurance for internal transportation;

5.OEM & ODM is welcome

6.Small order can be supplied

Packing & Shipping

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

Packaging of Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

1• Plyethylene film winding in roll with non-woven bag or carton box

2• Packing in carton box with plastic trayTransparent High Temp Electrical Wire,Extruded FEP Insulated Wire

3• Wooden drums,fumigated wooden drums,Wooden iron drums

• We can supply fumigation package and certificate.
• Shipping by air, train, express or upon clients' demands.
FAQ

Transparent High Temp Electrical Wire,Extruded FEP Insulated Wire

1).Q:Are you a manufacturer or trading company?

A:We are a professional manufacturer,research,development and sales of military and consumer cable wire and cable compound.The company is located in Hunan Province,China

2).Q:What is your company's strengths?

A:We are a stable wire and cable supplier of China's aerospace and military,21 years experience,cable compounds produced by ourselves,This is how we keep superior quality and competitive offers for global valued customers.

3).Q:How do you guarantee your product quality?

A:Quality is our priority,we treat quality control as the first most important thing from the very beginning to the very end.In design,materials procurement,manufacturing semi-finished products testing,finished product inspection such as strick control to ensure product quality.

4).Q:What's the warranty of your products?

A:We provide 1 year complete warranty service,If the products have quality problems,We plant to replace or return unconditionally.
