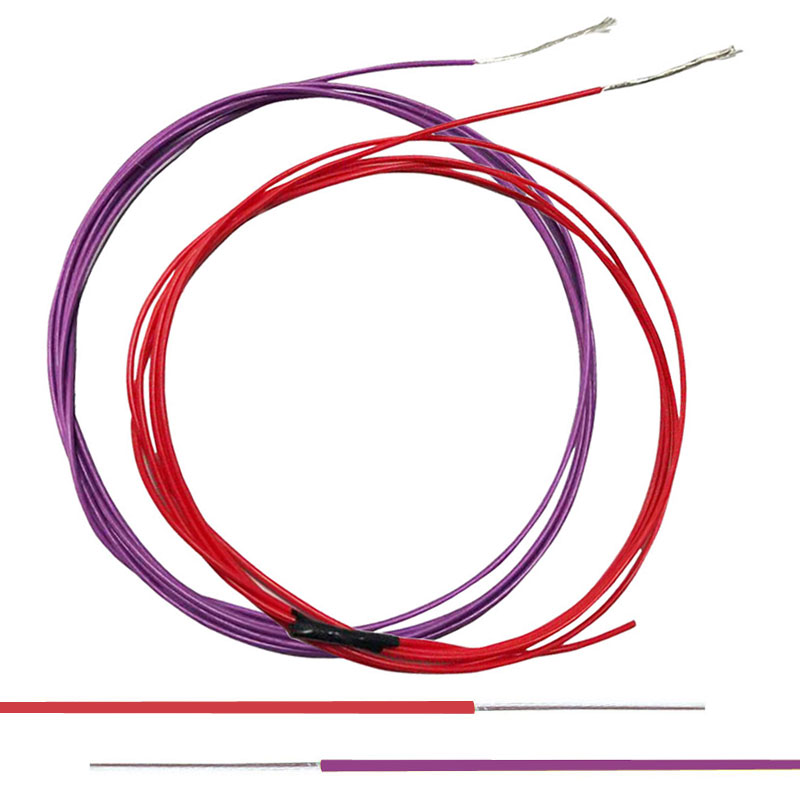

Silver Plated Copper FEP Wire 200 Degree Temperature Resistant 20 22 24 AWG
Silver Plated Copper FEP Wire 200 Degree Temperature Resistant 20 22 24 AWG
Silver Plated Copper FEP Wire 200 Degree Temperature Resistant 20 22 24 AWG
Silver Plated Copper FEP Wire 200 Degree Temperature Resistant 20 22 24 AWG
Specifications
Insulated :
FEP Insulated
Temperature Range :
-65~+200℃
Core Number :
1 Core, 2 Core, 3 Core, 4 Core, 5 Core, 6 Core...
AWG :
20AWG, 22AWG, 24AWG...
Conductor Materials :
Silver Plated Copper or Tinned Plated Copper
Rated Voltage :
AC 600V or Lower
Colors :
White, Black, Brown, Grey, Blue, Yellow, Red, Yellow, Purple, Clear, Green..
Sample :
Free Supply
Conductor Type :
Stranded or Solid
Customized Service :
Yes
Brand Name :
SANCO
Model Number :
AF-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray or Packing in roll with carton box
Description

200 Degree Temperature Resistant Silver Plated Copper FEP Wire 20 22 24 AWG

Electronic industry,Fluorine Plastic FEP Electrical Wires can be used for temperature compensation wire, low temperature wire, high temperature heating wire, aging wire and flame retardant wire; In the household electric appliance industry, it can be used for the internal wiring of air conditioner, microwave oven, electronic disinfection cabinet, electric rice bun, electronic hot water bottle, electric heater, electric oven, electric frying pan, lamps and lanterns, etc.

Properties:

1. Rated voltage: AC600V or lower
2. Working temperature: -65~ +200° C

3. Conductor Type: Stranded
4. Conductor Materials: Silver Plated Copper or Tinned Plated Copper
5. Insulated Materials: FEP Insulation

6. Wire Gauge: 10AWG, 12AWG, 16AWG, 18AWG, 22AWG, 24AWG, 26AWG, 28AWG...
7. Available Colors: White, Black, Grey, Yellow, Blue, Violet, Red, Clear, Brown, Green...

Type
FEP insulation Silver plated copper conductor lead wire
FEP insulation Tinned copper conductor lead wire
FEP insulation Tinned or silver coated copper conductor shielding lead wire
FEP insulation Tinned or silver coated stranded copper twisted lead wire
FEP insulation Tinned or silver coated stranded copper twisted shield lead wire


Silver Plated Copper FEP Wire 200 Degree Temperature Resistant 20 22 24 AWG

Wire gauge
(AWG)		 Section area
(mm2)		 Conductor construction
piece/diameter
(mm)		 Insulation thickness
(mm)		 Outer diameter
(mm)		 Max. Conductor resistance at 20℃
(Ω/Km)		 Packing length
(m)
10awg 5mm2 37x0.43mm 0.33mm 3.67 3.546 305
12awg 3mm2 19x0.49mm 0.33mm 3.11 5.64 305
14awg 2mm2 19x0.37mm 0.33mm 2.51 8.96 305
16awg 1.2mm2 19x0.3mm 0.33mm 2.16 14.6 305
17awg 19x0.26mm 0.33mm 1.96 18.3 305
18awg 1mm2 19x0.23mm 0.33mm 1.81 23.2 305
20awg 0.5mm2 19x0.2mm 0.33mm 1.61 36.7 305
1x0.8mm 0.33mm 1.46 35.2 305
22awg 0.3mm2 19x0.16mm 0.33mm 1.46 59.4 610
1x0.65mm 0.33mm 1.31 56.4 610
24awg 0.2mm2 7x0.2mm 0.33mm 1.26 94.2 610
1x0.5mm 0.33mm 1.16 89.3 610
26awg 0.12mm2 7x0.16mm 0.33mm 1.14 150 610
1x0.4mm 0.33mm 1.06 143 610
28awg 0.08mm2 7x0.12mm 0.33mm 1.02 239 610
1x0.32mm 0.33mm 0.98 227 610
30awg 0.06mm2 7x0.1mm 0.33mm 0.96 381 610
1x0.254mm 0.33mm 0.914 361 610
32awg 0.035mm2 7x0.08mm 0.41mm 1.06 664.8 610
1x0.2mm 0.41mm 1.02 588.3 610

Noted:Specification and core no. are not limited to above regulation,they could be customized.
