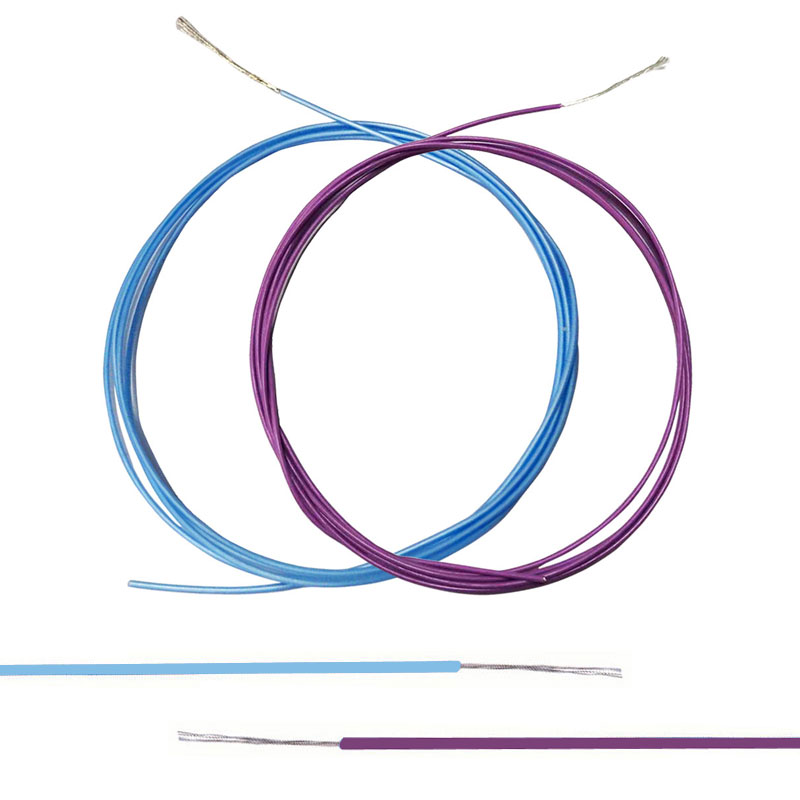

Silver Copper PTFE Insulated Wires 20 24 22 Gauge Insulated Stranded Copper Wire
Silver Copper PTFE Insulated Wires 20 24 22 Gauge Insulated Stranded Copper Wire
Silver Copper PTFE Insulated Wires 20 24 22 Gauge Insulated Stranded Copper Wire
Silver Copper PTFE Insulated Wires 20 24 22 Gauge Insulated Stranded Copper Wire
Specifications
Brand Name :
SANCO
Model Number :
AF-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray / Packing in roll with carton box
Application :
For Automotive cables, Outdoor lighting, PTC thermistors
Conductor Materials :
Silver or Nickel Copper
Insulation :
PTFE Insulated
Features :
Heat Resistance
Working Temperature :
-60℃ ~+250℃
Gauge :
10AWG~32AWG
Available Colors :
Orange, Red, Yellow, Grey, Blue, White, Black...
Rated voltage :
600V or Below
Conductor Type :
Stranded or Solid
Core Number :
1 Core, 2 Cores, 3 Cores, 4 Cores, 5 Cores...
Description

Silver Plated Copper PTFE Fluoroplastic Insulation High Temp Resistant Wire Cable

Application:

Used for Oil equipment, Electric machinery, Automotive cables, Outdoor lighting, PTC thermistors, Electric components etc.

PTFE wire can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire; household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.

Properties:

1. Rated voltage: 600V or Below
2. Working temperature: -65℃~+250℃
3. Conductor Material: Silver or Nickel Plated Copper

4. Conductor Type: Stranded
5. Insulated: PTFE Insulation
6. Available Colors: Orange, Red, Yellow, White, Blue, Brown, Black, Brown, Grey, Green, Purple...

7. Core Number: Single Core

Silver coated copper conductor PTFE insulation lead wire
Silver coated copper conductor PTFE insulation shield lead wire
Silver coated stranded copper conductor PTFE insulation shield lead wire
Silver coated stranded copper conductor PTFE insulation twisted shield lead wire

Nominal Section

(mm2)

Conductor

Construction
(No/mm)

Insulation Thickness

(mm)

Outer Diameter

(mm)

D.C. conductor resistance at

20ºC(Ω/km)
Tinned copper Silver coated copper
0.05 10/0.08 0.3 0.9 383 370
0.06 7/0.10 0.3 0.9 348 339
0.08 7/0.12 0.3 0.96 286 280
0.1 7/0.14 0.3 1.02 157 150
0.12

7/0.15

30/0.07

 0.3 1.05 152 145
0.14

7/0.16

19/0.10

 0.3 1.08 136 130
0.15 30/0.08 0.3 1.1 111 105
0.2

7/0.02

19/0.12

 0.3 1.2 87 82
0.35 19/0.16 0.3 1.4 57 54
0.5 19/0.18 0.3 1.5 40 37.5
0.8 19/0.23 0.32 1.79 24 23
1 19/0.26 0.35 2 21 20
1.2 19/0.28 0.45 2.3 19 18
1.5 19/0.32 0.45 2.5 13 12
2 19/0.37 0.45 2.75 10 9
2.5 37/0.30 0.55 3.2 8 7
3 37/0.32 0.68 3.6 6.8 6.4

Noted: Specification and core no. are not limited to above regulation, they could be customized.
