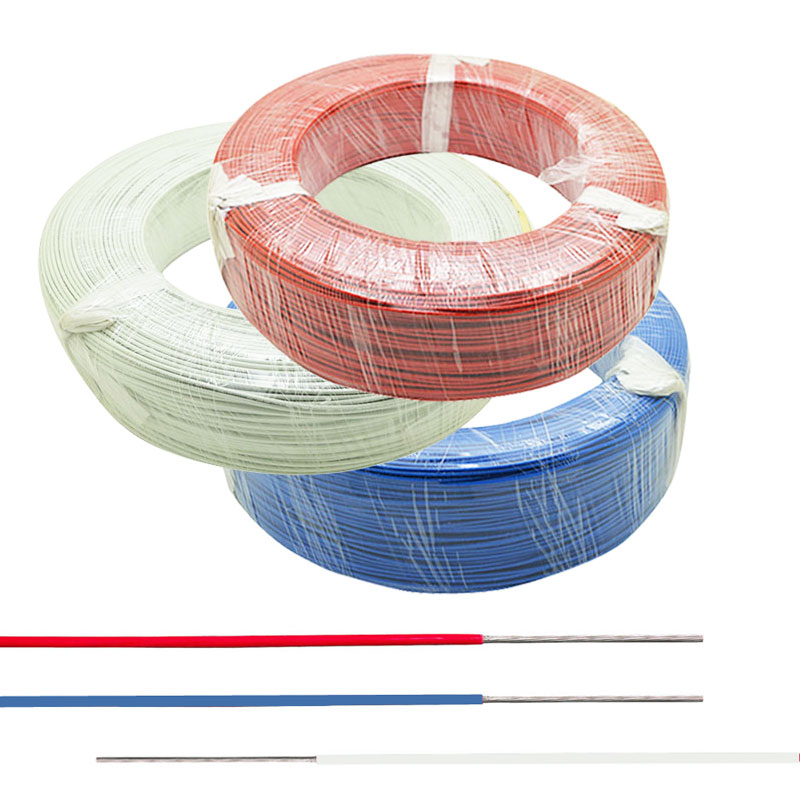

16 18 20 22 Gauge PTFE Insulated Wires High Temperature Extruded
16 18 20 22 Gauge PTFE Insulated Wires High Temperature Extruded
16 18 20 22 Gauge PTFE Insulated Wires High Temperature Extruded
16 18 20 22 Gauge PTFE Insulated Wires High Temperature Extruded
Specifications
Application :
Internal wiring for electronic equipment and small electrical equipment
Conductor :
Silver Coated Stranded Copper
Insulation :
Ptfe Insulation
Advantage :
Heat resistance
Working Temperature :
-60 ~+250℃
Wire Gauge :
16AWG, 18AWG, 20AWG, 22AWG..
Available Colors :
Blue, Red, Green, Gray, White, Black, Yellow
Rated voltage :
125V, 300V, 600V
Customized Product :
Yes
Core Number :
Single Core or Multicores
Brand Name :
SANCO
Model Number :
AF-250
Certification :
ISO9001
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
250000M/Per Month
Delivery Time :
3~8days
Packaging Details :
Cable tray / Packing in roll with carton box
Description

16 18 20 22 Gauge High Temperature Extruded PTFE Hook Up Wire

PTFE insulated equipment/ hookup wires are generally used for internal wiring of various electronic and electrical equipments and other electrical purposes. They are most suitable to use in equipments involving for high frequency signals. Uniformity of insulation thickness around the conductor and very low dielectric constant of PTFE enables the transmission of high frequency signals with minimized signal losses as compared to other wires resulting in high quality signal transmission.

.

Features:

Good corrosion-resistance,almost doesn't melt any organic imp regnant, Oil-resistance, strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on. bear the good electric insulated capability, high voltage-resist, moisture-resistance, high insulation resistance; flame-retardant, Anti-ageing, long age of usage.

Properties:

1. Rated voltage: 125V, 300V, 600V
2. Working temperature: -65℃ ~ +250℃
3. Conductor: Silver Coated Copper Stranded Wire
4. Insulation: Ptfe
5. Colors: Blue, Red, Yellow, White, Black, Brown, Gray, Green, Purple...

Silver coated copper conductor PTFE insulated lead wire
Silver coated copper conductor PTFE insulation shield lead wire
Silver coated stranded copper conductor PTFE insulated shield lead wire
Silver coated stranded copper conductor PTFE insulated twisted shield lead wire

Nominal Section

(mm2)

Conductor

Construction
(No/mm)

Insulation Thickness

(mm)

Outer Diameter

(mm)

D.C. conductor resistance at

20ºC(Ω/km)
Tinned copper Silver coated copper
0.05 10/0.08 0.3 0.9 383 370
0.06 7/0.10 0.3 0.9 348 339
0.08 7/0.12 0.3 0.96 286 280
0.1 7/0.14 0.3 1.02 157 150
0.12

7/0.15

30/0.07

 0.3 1.05 152 145
0.14

7/0.16

19/0.10

 0.3 1.08 136 130
0.15 30/0.08 0.3 1.1 111 105
0.2

7/0.02

19/0.12

 0.3 1.2 87 82
0.35 19/0.16 0.3 1.4 57 54
0.5 19/0.18 0.3 1.5 40 37.5
0.8 19/0.23 0.32 1.79 24 23
1 19/0.26 0.35 2 21 20
1.2 19/0.28 0.45 2.3 19 18
1.5 19/0.32 0.45 2.5 13 12
2 19/0.37 0.45 2.75 10 9
2.5 37/0.30 0.55 3.2 8 7
3 37/0.32 0.68 3.6 6.8 6.4

Noted: Specification and core no. are not limited to above regulation, they could be customized.
