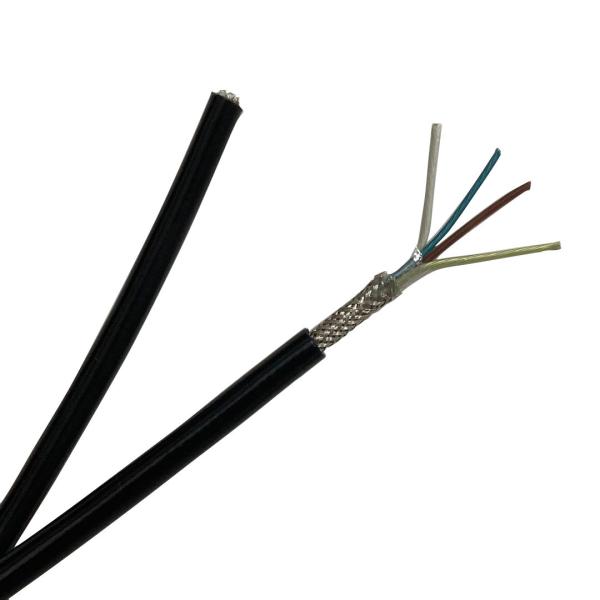

4 Core Fluoroplastic Insulated PVC High Temperature Control Cable

Application

This cable is suitable for metallurgy, petroleum, chemical industry and power plants and other industrial and mining enterprises, under high temperature conditions and harsh environment (such as acid, alkali, oil and water low temperature conditions) as a variety of electrical appliances, instruments and automatic devices of the connection wire

Features: Flexible, low temperature resistant, heat resistant, anti-aging and anti-interference.

Type

1. KFV copper wire conductor fluoroplastic insulated PVC sheathed high temperature control cable

For laying indoors, cable trench, pipeline and other fixed occasions.

2. KFF copper wire conductor fluorine plastic insulated and sheathed high temperature control cable

For laying indoors, cable trench, pipeline and other fixed occasions.

3. KFVP copper wire conductor fluorinated plastic insulated PVC sheathed copper wire braded shield high temperature control cable

For laying indoors, cable trench, pipeline and other fixed occasions with strong electromagnetic interference.

4. KFFP copper wire conductor fluorinated plastic insulation and sheath copper wire braded shielding high temperature control cable

For laying indoors, fixed occasions with strong electromagnetic interference.

5. KFV-22 copper wire conductor fluorine plastic insulated PVC sheathed steel tape armored high temperature control cable

For laying indoors, cable trench, pipeline, directly buried and other fixed occasions, can withstand large mechanical external force.

6. KFF-22 copper wire conductor fluorine plastic insulated and sheathed steel tape armored high temperature control cable

for laying indoors, cable trench, pipeline, directly buried and other fixed occasions, can withstand large mechanical external force.

Properties

1. Working temperature: KFF－200℃,KFF22－200℃ KFV,KFVP,KFV22 －80℃
2. Rated voltage:U0/U 450/750KV
3. The min. bending radius: not be less than 15 times of cable diameter
4. Voltage test 3.5kV /5min, no breakdown

Note: Specifications are not limited to the above table, can be customized as customer's requirements.
