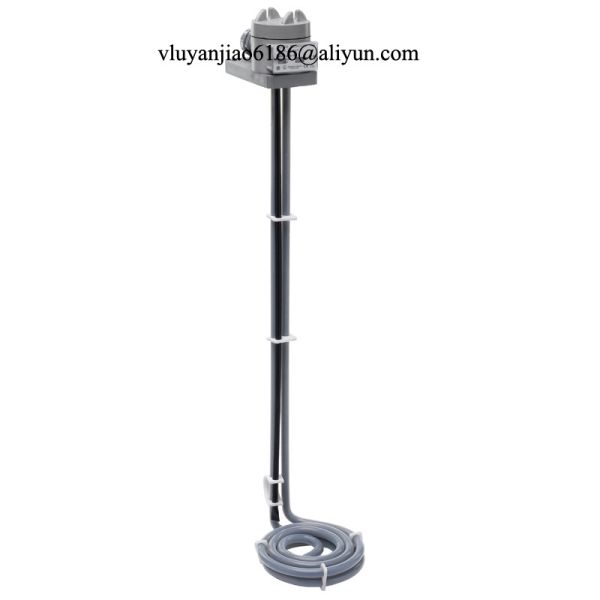

480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
Specifications
Supply voltage (V/Phase): :
110V-480V
Application :
Acid Heating And Corrosive Chemical Heating
Inside material :
SUS
Frame Material :
PTFE
Power(KW) :
1KW-6KW
Cable length :
2 meters/3meters/others
Brand Name :
Surplus
Model Number :
PTFE immersion Heater 09
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
480V 3P 3KW 610MM Fluoropolymer PTFE Six Element Over the Side Immersion Heater
Type of temperature control :
Overheat protection
Description
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
480V 3P 3KW 610MM Fluoropolymer PTFE Six Element Over the Side Immersion Heater
Excellent chemical resistance to aggressive acids.
Features
  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C)
  • Low watt density design 10 watts/square inch (1.5w/cm²)
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C)
  • Certification: cULus, CE certified and CSA
Specifications
  • 3000 - 18000 watts
  • 120 to 600 volts (600 volts on 12,000 watts or lower only)
Options Available (Consult Factory)
  • Resettable thermal protectors
  • Polypropylene guards (sold separately)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Other Applications
Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
3HX Series HXT SERIES - SCREWPLUG 9HX SERIES
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
6HX SERIES 3HXOL SERIES HXSL SERIES
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
MOTS TRIPLE - VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.		 9HS SERIES - TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.		 V SERIES - VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side 480V 3P 3KW 610MM Fluoropolymer Immersion Heater Six Element Over The Side
