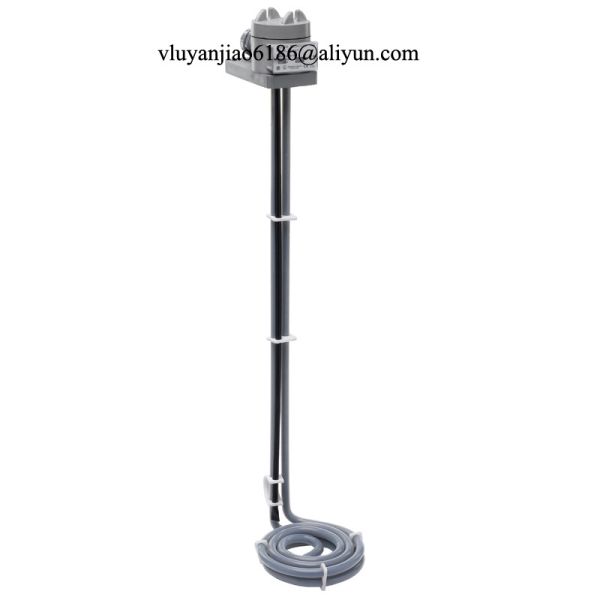

TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
Specifications
Supply voltage (V/Phase): :
110V-480V
Application :
Acid Heating And Corrosive Chemical Heating
Inside material :
SUS
Frame Material :
PTFE
Power(KW) :
1KW-6KW
Cable length :
2 meters/3meters/others
Brand Name :
Surplus
Model Number :
PTFE immersion Heater 04
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
T/T
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
HXFL Style TEFLON/PTFE/Fluoropolymer Bottom Electric Process Immersion Heaters
Type of temperature control :
Overheat protection
Description
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
HXFL Style TEFLON/PTFE/Fluoropolymer Bottom Electric Process Immersion Heaters
PTFE HEATERS:
Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Excellent chemical resistance to aggressive acids.
PTFE Immersion Heater For Corrosive Chemical Heating FEATURES
  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
  • Low watt density design 10 watts/square inch (1.5w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: ISO9001, CE
SPECIFICATIONS
  • 500 - 9000 watts
  • 120 to 600 volts (600 volts on 4500 watts or lower only)
OPTIONS AVAILABLE (CONSULT FACTORY)
  • Resettable thermal protectors
  • Polypropylene guards (sold separately)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
Other Applications
Point Of Use Heating
Point of Use (POU) Heating refers to the energy-efficient heating method of placing a small heater near the processing bath to reduce heat-up wait times.
Products For Point Of Use Heating
Applications
  • Semiconductor Wafer Cleaning
  • Etching
  • Inline Chemical Heating
  • Point of Use Heating (POU)
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
High-Purity PFA Inline Chemical Heater
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
PTFE Inline Heater
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
Inline Chemical Heater
RO/DI Water Heating
Deionized water (DI Water) has become a crucial part of many industrial process applications' impurity removal process. Cleaning semiconductors or other ultra-clean end-use devices requires the highest level of purity to reduce product failure.
Products For RO/DI Water Heating
Applications
  • Semiconductor
  • Flat Panel Display
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
Heating Systems for Purified, DI Water
TEFLON PTFE Immersion Heaters Fluoropolymer Bottom Electric Immersion Heaters
PTFE Inline Chemical Heater
