4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
Specifications
Brand Name :
Surplus
Model Number :
PTFE immersion Heater 026
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Contact Us
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50 PC/Month
Delivery Time :
10-15 working days
Packaging Details :
Wooden Case or Carton Box
Name :
4000 Watt 6 Element Fluoropolymer(PTFE) Immersion Heaters 21″ Hot Zone – 30″ Overall Length
Supply voltage (V/Phase): :
110V-480V
Power(KW) :
4KW
Type of temperature control :
Overheat protection
Application :
Acid Heating And Corrosive Chemical Heating
Frame Material :
PTFE
Inside material :
SUS
Cable length :
2 meters/3meters/others
Description
4000 Watt 6 Element Fluoropolymer(PTFE) Immersion Heaters 21″ Hot Zone – 30″ Overall Length
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
4000 Watt 6 Element Fluoropolymer(PTFE) Immersion Heaters 21″ Hot Zone – 30″ Overall Length

Excellent chemical resistance to aggressive acids.

Compatible with virtually any chemistry

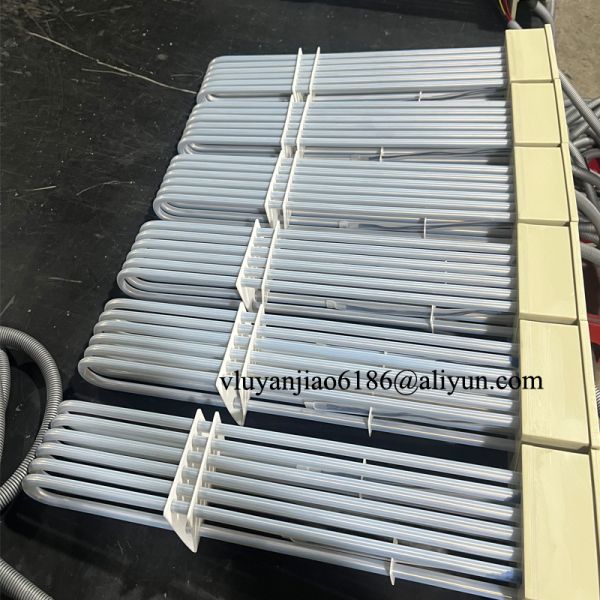

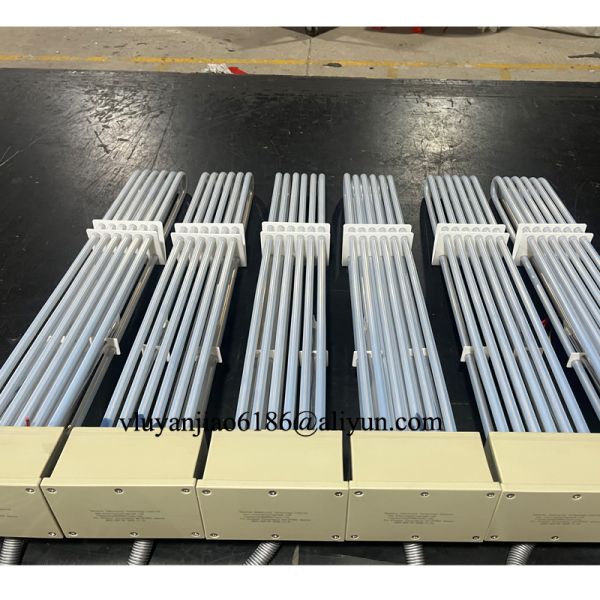

The 6HX PTFE Heater provides exceptional chemical resistance to aggressive acids, featuring a 6-element design with low watt density. It includes a built-in thermal protector and grounded element. The fluoropolymer (PTFE) sleeved 304 stainless steel elements are inert to most solutions, and the heater is equipped with a corrosion-resistant head. Available in three-phase with power ratings from 2000-12000 watts and voltages from 208-600 volts.

Applications
Anodizing
Precious Metal Deposition
Electrochemical Deposition
Water Treatment
Electropolishing

Features
  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C)
  • Low watt density design 10 watts/square inch (1.5w/cm²)
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C)
  • Certification: cULus, CE certified and CSA
Specifications
  • 3000 - 18000 watts
  • 120 to 600 volts (600 volts on 12,000 watts or lower only)
Options Available (Consult Factory)
  • Resettable thermal protectors
  • Polypropylene guards (sold separately)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
Specify thermal overload protection desired. Guards are recommended on over the side heaters and required on L-Shaped heaters. Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Other Applications
Acid Heating And Corrosive Chemical Heating
Built to withstand the stress of acids or other corrosive chemicals while maintaining the highest quality and safety standards, Process Technology fluoropolymer (PTFE) heaters and exchangers are engineered to perform.
3HX Series HXT SERIES - SCREWPLUG 9HX SERIES
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
6HX SERIES 3HXOL SERIES HXSL SERIES
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
Electrochemical Deposition
Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.
MOTS TRIPLE - VERTICAL
MOTS Triple Vertical: L-shaped, vertical metal over the side heater. 3,000-36,000 watts, 208-600 volts.		 9HS SERIES - TUBULAR
9HS PTFE Heater: Over the side, 9 element, tubular heater. Three phase. 9000-31500 watts, 208-600 volts.		 V SERIES - VARIPOWER
Metal or Fluoropolymer (PTFE) sheath heater. Single phase. Heats up to 212°F (100°C). 100-1000 watts, 120-240 volts.
4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length 4000 watt 6 Element Fluoropolymer(PTFE) immersion heaters 21″ Hot Zone – 30″ Overall Length
