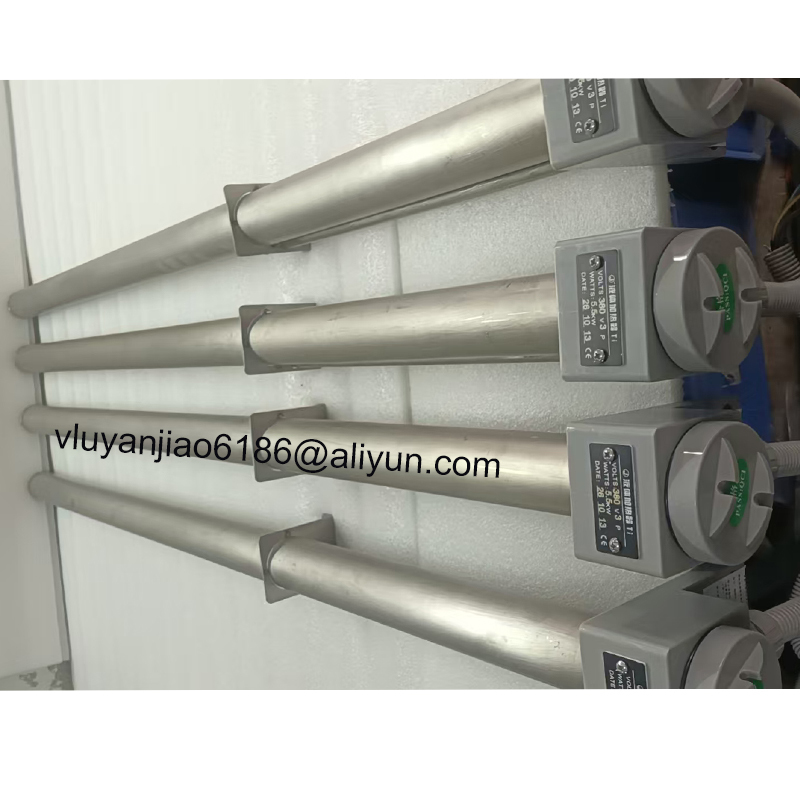

Electric Immersion Heaters are ideal for direct heating of nearly all process liquids and corresponding applications. Excellent chemical resistance is ensured through various immersion tube materials and customizable fitting options to meet specific heating installation requirements.

Constructed with high-quality materials for long lifespan and optimal reliability, these heaters ensure flawless system operation.

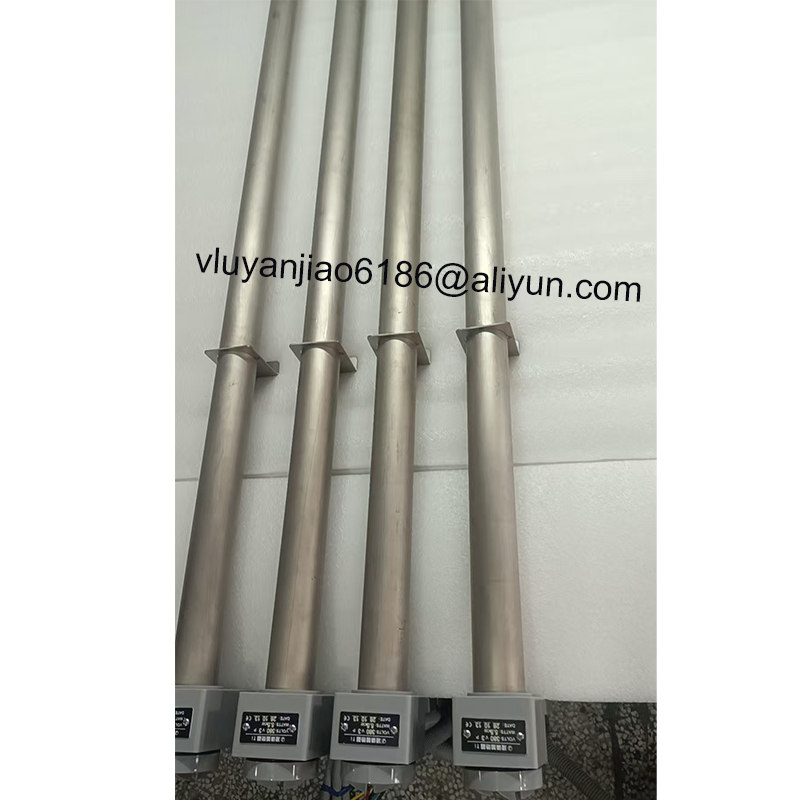

We provide optimal materials for every application. The heated length (minimum immersion depth) is marked by a ring at approximately two-thirds of the tube length. The tube remains unheated above this mark, and the heated portion must always remain submerged in liquid, even with significant liquid level fluctuations.

Our heating cartridges feature:

• Ceramic groove bodies with high electrical insulation values
• Excellent mechanical strength
• High-temperature resistance heating wire coiled for optimal heat radiation
• Available in rated power voltages up to 500V for single, two, and three-phase connections

SUPERIOR CHEMICAL RESISTANCE:

Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

OUTSTANDING PERFORMANCE: Low watt densities of 18 watts per square inch (2.8 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD: Vapor tight, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

Our products safely heat IPA and low flash-point solvents, meeting stringent cleanliness requirements for next-generation semiconductor technologies.

PFA Inline Chemical Heater	PTFE Inline Chemical Heater	Inline Chemical Heater

Anodizing is an electrochemical process that converts metal surfaces into durable oxide layers, primarily used for aluminum but also applicable to titanium and magnesium. The process provides corrosion resistance, durability, and decorative finishes.

MOTS SINGLE - BOTTOM, DERATED	MOTS TRIPLE - L SHAPED	6HS SERIES - TUBULAR
Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. 500-6000 watts, 120-480 volts.	L-shaped, bottom style metal over the side heater. Three phase. 3000-36000 watts, 200-600 volts.	Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
Additional Anodizing Products
MOTS TRIPLE - DEEP TANK Deep tank, metal over the side heater. Three phase. Heats up to 300°F (149°C). 18000-54000 watts, 208-600 volts.	G (GRID) SERIES COIL Efficient horizontal, vertical and L-shaped Immersion Coils for larger tanks. Available in steel, 316 stainless steel and titanium.	9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements. Three phase. 3000-18000 watts, 208-600 volts.
6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements. 3000-18000 watts, 208-480 volts.
