Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Specifications
Material :
SUS
Brand Name :
Surplus
Sizes :
375 – 3000 Watts (Dependent on Voltage)
Place of Origin :
China
Voltages :
120 VAC to 240 VAC 1-Phase (Dependent on Wattage)
Application :
suitable for nitrogen, CDA (Clean Dry Air) or other high purity, inert gases
Delivery Time :
10-15 working days
MOQ :
1 PCS
Packaging Details :
Wooden Case or Carton Box
Payment Terms :
TT, Paypal, Western Union
Wetted Surface :
316L Stainless Steel Electropolish
Model Number :
Stainless Steel N2 Heater 02
Certification :
ISO9001
Price :
Contact Us
Name :
Japanese-Style SUS316 Nitrogen (Clean Type) N2 Gas Heater
Supply Ability :
50 PC/Month
Description
Japanese-Style SUS316 Nitrogen (Clean Type) N2 Gas Heater
High Purity Wafer Drying And Parts Cleaning Semiconductor Stainless Steel N2 Heater
Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power RangeJapanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Japanese-Style 316L Stainless Steel N2 Heater for High Purity Inert Gases with 375W to 3000W Power Range
Overview

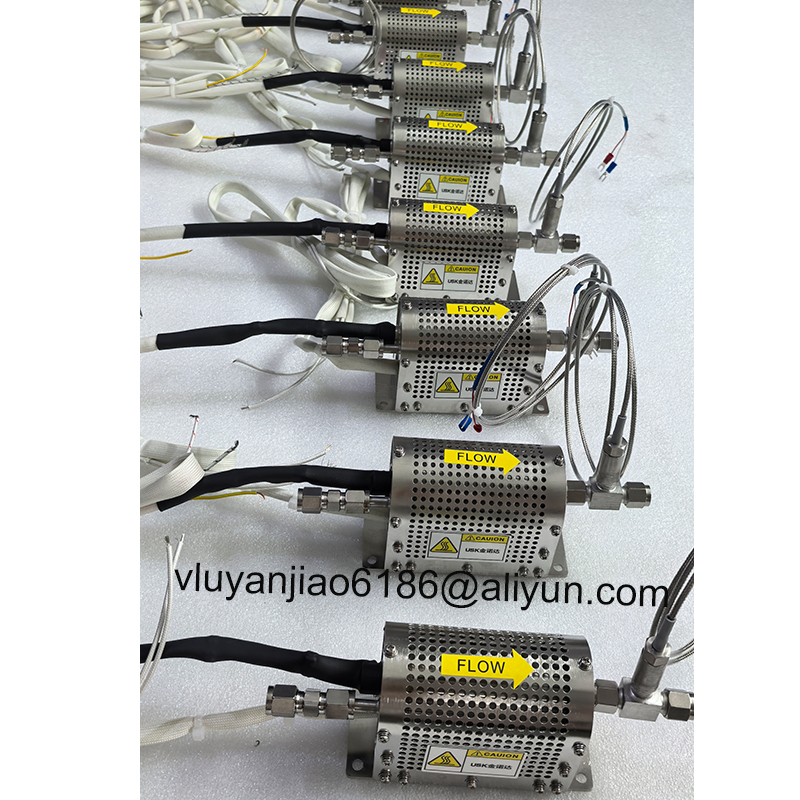

Designed for high purity wafer drying and parts cleaning, this Stainless Steel N2 Heater is compatible with nitrogen, CDA (Clean Dry Air), and other high purity inert gases. The electropolished 316L stainless steel housing features passivated wetted surfaces for superior compatibility with most process fluids. Its compact design minimizes footprint while offering a replaceable heater element. Available in multiple models ranging from 375 watts to 3,000 watts.
Built-In Safety
The N2 heater incorporates multiple safety features including high limit and process thermocouples for precise temperature regulation, a thermal cut-off sensor to prevent overheating, and an electrical ground wire. Optional microprocessor-based temperature controller in a NEMA-rated external switching chassis is available.
Highlights
  • Power range: 375W to 3,000W (voltage dependent)
  • Voltage options: 120 VAC to 240 VAC, 1-phase (wattage dependent)
  • Capable of series connection for higher wattage and flow capacities
  • Operating temperature: 200°C (392°F)
  • Pressure rating: 60 PSIG at 200°C
Features & Benefits
  • 316L stainless steel with electropolished and passivated wetted surfaces
  • Sanitary fitting design eliminates threads to reduce particle entrapment and bacteria growth
  • Compact ~13-inch height design
  • Plug-and-play system for easy installation
  • Optional microprocessor-based temperature controller in NEMA-rated enclosure
  • Flexible configurations with various power requirements and options
  • No N2 purge required
Options
  • Enclosure for Heater
  • Various sizes of Input/Output Fittings
  • Upside Down Heater Design for system drainage
  • Additional safety features
  • Dry Contact on Controls
Specifications
Heater N2 SS Heater
Wetted Surface 316L Stainless Steel Electropolish
Sizes 375 - 3000 Watts (Dependent on Voltage)
Voltages 120 VAC to 240 VAC 1-Phase (Dependent on Wattage)
Temperature 392°F (200°C)
Pressure 60 PSIG at 200°C
