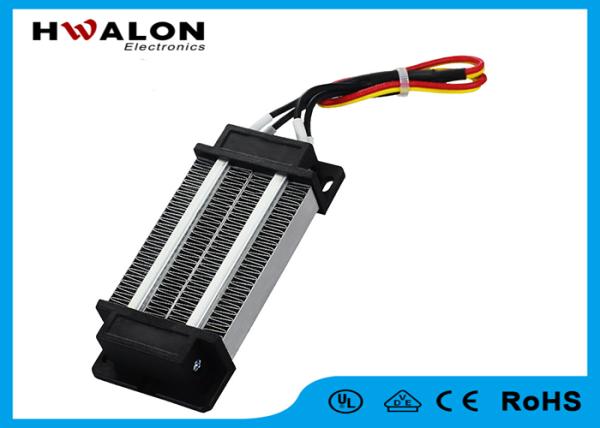

12V 200W 120x50.5x26mm PTC Mini Air Heater Fan Incubator Ceramic Heater Element Heating Equipment
12V 200W 120x50.5x26mm PTC Mini Air Heater Fan Incubator Ceramic Heater Element Heating Equipment
12V 200W 120x50.5x26mm PTC Mini Air Heater Fan Incubator Ceramic Heater Element Heating Equipment
12V 200W 120x50.5x26mm PTC Mini Air Heater Fan Incubator Ceramic Heater Element Heating Equipment
Specifications
Brand Name :
HWALON
Model Number :
12V 200W
Certification :
CE
Place of Origin :
CHINA
MOQ :
500pcs
Price :
4-5usd/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
7-15days
Packaging Details :
cartons
Material :
Aluminum case + insulation film
Dimension :

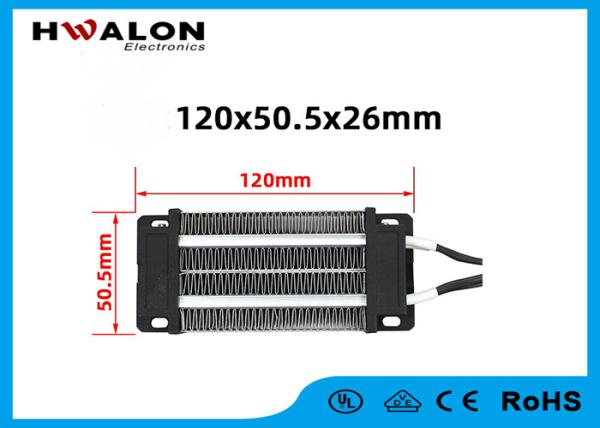

120x50.5x26mm
Power :
200W
Voltage :
12v
Funcation :
heating
Thickness :
15mm
Application :
Air conditioning systems, household appliances
Description

12V 200W 120x50.5x26mm PTC Mini Air Heater Fan Incubator Ceramic Heater Element Heating Equipment

Product Description:

Hwalon Electronic Limited is specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.

Operating voltage
12-600V AC/DC or customized
Heating element
PTC resistor, temperature limiting
Heater body
aluminium, anodised
Operating/Storage temperature
-45 to +240 °C
Heat Methods
Heat Radiation by Air Flow
Operating/Storage humidity
max. 90 % RH (non-condensing)
Application
Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier/PTC Heater
Ceramic Electric Heating Element

Instruction:

1, The power line does not distinguish between positive and negative, you can freely link power 48V.
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, for the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, Both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of
about 50-60 degrees Celsius.
8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
