PTC Ceramic air Heater Heating element Electric Heater 110V 167x35x26mm 300W for Cars Farms air conditioner
PTC Ceramic air Heater Heating element Electric Heater 110V 167x35x26mm 300W for Cars Farms air conditioner
PTC Ceramic air Heater Heating element Electric Heater 110V 167x35x26mm 300W for Cars Farms air conditioner
PTC Ceramic air Heater Heating element Electric Heater 110V 167x35x26mm 300W for Cars Farms air conditioner
Specifications
Brand Name :
HWALON
Model Number :
110V 167x35x26mm 300W
Certification :
CE
Place of Origin :
CHINA
MOQ :
500pcs
Price :
4-5usd/pcs
Payment Terms :
T/T,Western Union
Supply Ability :
10000pcs/day
Delivery Time :
7-15days
Packaging Details :
cartons
Size :
167x35x26mm
Power :
300W
Material :
Aluminum case + insulation film
Usuage :
air conditioner
Voltage :
110V
Description

PTC Ceramic air Heater Heating element Electric Heater 110V 167x35x26mm 300W for Cars Farms air conditioner


Product Description:


PTC Heater Heating Element

1. Rated Voltage: 110V

2. Rated Power: 300W (R=24℃,3.3m/s wind flow velocity)

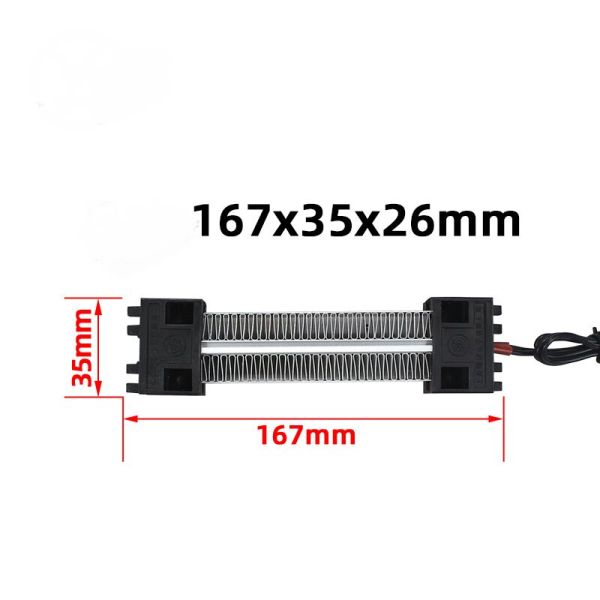

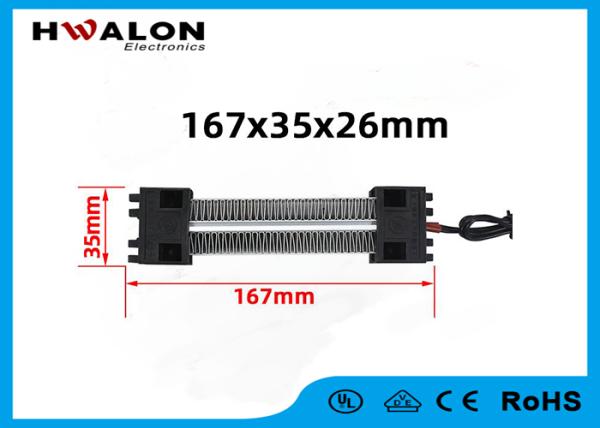

3. Dimension: 167*35*26mm

4. Dimension of Fin:96*102mm

5. Dimension of Mounting hole:120*93mm

6. Remarks:with 150 degrees normally closed thermostat protector


Product Name
PTC Air Heater(PTC Heater Heating Element)
Heat Material
PTC Thermistor
Heat Methods
Heat Radiation by Air Flow
Lead Wire
Silicone High Temperature Line
the Length of Lead Wires
200mm
the Length of Bare Wires
10mm
Surface Insulate
Yes
Application
Air Conditioning Units / Electric Heater /Car /Air Curtain Machine / Humidifier/PTC Heater Heating Element



Products Show:


Instruction manual:


1, The power line does not distinguish between positive and negative, you can freely link power 220V.

2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.

3, Can be placed under a wet environment, but can not be placed in water.

4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.

5, Built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.

6, Both ends of the product wearing bracket (PA66 high temperature nylon)

7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.

8, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!

9, Life: about: 3--5 years.


Packing & Delivery:


Packing Details : Packing, 50pcs/carton
Delivery Details : 1-5 days after order
