High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin
High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin
High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin
High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin
Specifications
Resistance :
1K ~ 1M Ohms
Brand Name :
HWALON
Model Number :
10k 3977
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
0.09-0.15USD
Payment Terms :
T/T,Western Union
Supply Ability :
100000pcs/day
Delivery Time :
7-15days
Packaging Details :
cartons
Style :
Glass or Epoxy type
Temperature range :
-40~150°C
B value :
3380, 3435, 3950, 3977,etc.
Tolerance :
1%, 2%, 3%, 5%
Description
Custom Ntc 10k 3950 3977 3435 Thermistor -40 to 150 Degrees Epoxy Ntc Temperature Sensor
Product Information:

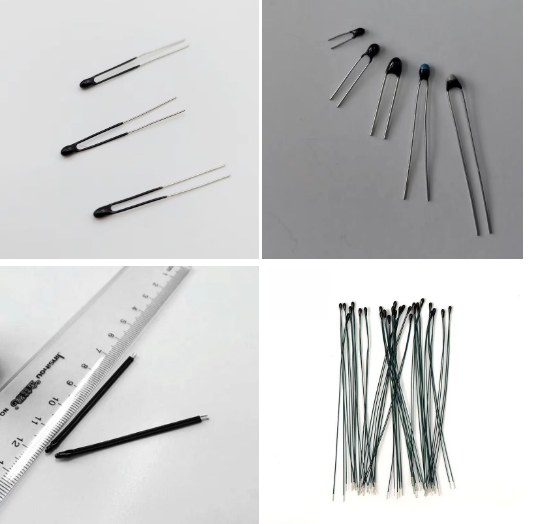

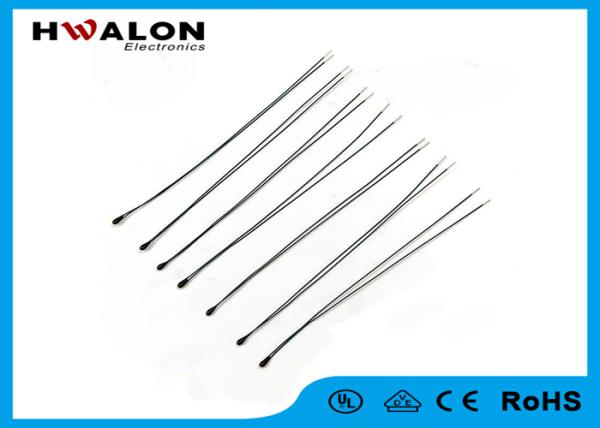

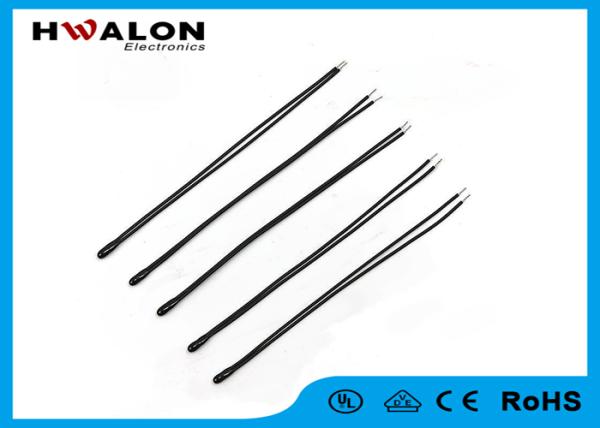

Introducing a custom NTC thermistor temperature sensor that offers exceptional accuracy and reliability. This sensor be equipped with various resistance values and B values, allowing for precise temperature measurement within the wide range of -40 to 150 degrees Celsius. The epoxy encapsulation ensures robustness and durability, making it ideal for applications in harsh environments.This custom NTC temperature sensor is designed to provide accurate and consistent temperature readings.

High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin

  • Tin plating steel wire radial type epoxy resinen encapsulation
  • Wide range of resistance
  • High precision
  • Small size and fast response
  • High stability
  • Available in temperature ranges from -40ºC to +150ºC.
PARAMETER OPTIONS UNIT
Resistance @ 25°C 1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000 kohms
Resistance Tolerance 1, 2, 3, 5 %
Beta Value 3435, 3950, 3977, 3984, 4000 K
Temperature Range -40 to +150 °C
Thermal Time Constant < 10 s
Temperature Coefficient Resistance -4.4 %/°C
Max Power 30 mW
Dissipation Constant (in air) 2 mW/K
Wire Material Enamelled Cu, Tinned Copper, PVC,Parall mm
Application:
  • Ambient temperature sensing, control and compensation.
  • Liquid or gas temperature control and monitoring.
  • Assembly into probes.
  • Automotive (Air Conditioning, Cabin Climate Control/Management, Heated Seats).
  • Industrial applications.
  • Computer and Communications Industry.
  • HVAC, White Goods
Packing and Delivery:

High Precision Fast Response Custom 10K NTC Thermistor 3950 3977 3435 Epoxy Temperature Sensor with -40~150°C Wide Temp Range for HVAC Household Appliance Battery Pack Industrial Temperature Monitorin
