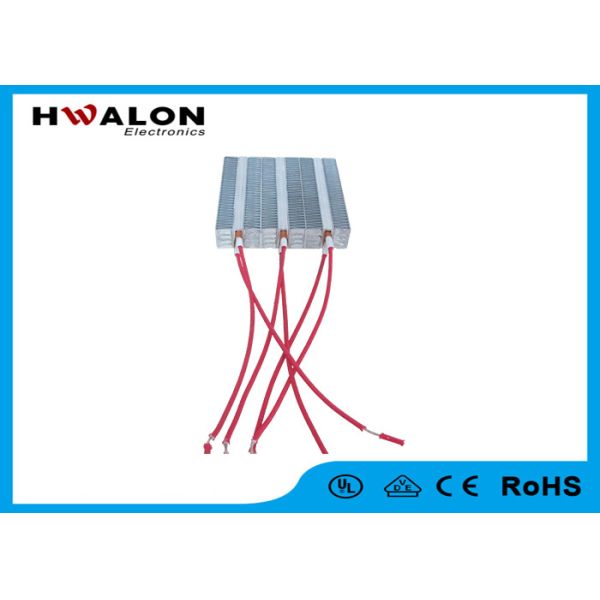

Energy Saving Fast Heating Self-regulating Customized PTC Ceramic Air Heater Electric PTC Ceramic Heating Element with Anti-overheat Insulation for Air Conditioner, Car, Air Curtain, Humidifier
Energy Saving Fast Heating Self-regulating Customized PTC Ceramic Air Heater Electric PTC Ceramic Heating Element with Anti-overheat Insulation for Air Conditioner, Car, Air Curtain, Humidifier
Energy Saving Fast Heating Self-regulating Customized PTC Ceramic Air Heater Electric PTC Ceramic Heating Element with Anti-overheat Insulation for Air Conditioner, Car, Air Curtain, Humidifier
Energy Saving Fast Heating Self-regulating Customized PTC Ceramic Air Heater Electric PTC Ceramic Heating Element with Anti-overheat Insulation for Air Conditioner, Car, Air Curtain, Humidifier
Specifications
Material :
Ceramic
Name :
PTC Ceramic Air Heater
Size :
Customized Size
Other Name :
PTC Ceramic Heating Element
Power :
40-1000W
Voltage :
12V 110V 220V 240V
Brand Name :
Hwalon
Model Number :
PTC Heating Device
Certification :
RoSh
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
20000 pieces per month
Delivery Time :
10-20 working days
Packaging Details :
Poly bags + Carton boxes
Description
Customized PTC Ceramic heating element Air Electric Heater
PTC Ceramic Air Heater Application

Air Conditioning Units / Electric Heater /Car / Equipment/ Air Curtain Machine / Humidifier / Medical Instruments

PTC Ceramic Air Heater Features:
  • With the characteristic of constant temperature ,the PTC heater does not need the temperature-controlling system.
  • If the PTC heater is used to the heater the cold wind ,it will not be destroyed when the wind is stopped.
  • If the PTC heater is used to heat the liquid,it will not be destroyed when the liquid is burnt to be dry.
  • Not sensitive to voltage fluctuating,and wide range of operating voltage.
  • Restore automatically after invalidation.
PTC Ceramic Air Heater Parameters:
Name PTC Ceramic Air Heater
R25 Value 1-5000ohms
PTC Size 24*15mm or customized
Rated Voltage 3.6-240V
Withstand Voltage 400-900V
Surface Temp. 50-300℃
Operating Temp. -25~125℃
Power: 100W -5000W
PTC Ceramic Air Heater Details

PTC Ceramic Air Heater Models

PTC Ceramic Air Heater Usage

Hwalon Electronic Limited with 15 years experience on NTC temperature sensor field.

  • Competitive price
  • On time handle over
  • Competitive price
  • Inquiry answered in 24hrs
  • Good team waiting here to serve for you
  • RoHS &UL compatible
  • OEM & ODM business accept
  • Main Market:Europe,North America,Asia
Trade Process

How to order

In order to help you get the exact model, please offer the following necessary info.:

  1. application of the PTC heater:_________
  2. working environment of PTC heater:________
  3. the range of operation temperature:___°c to ___°c
  4. *4. dimension and the drawing of the heater
  5. *5. dimension: _____mm* _____mm* _____mm
  6. *6. power: _____W
  7. *7. voltage: _____V
  8. *8. wind speed: _____m/s
  9. *9. insulated or not insulated

* Fill " * " items necessarily.

FAQ

 Questions Answers
1 What is the MOQ? 1000pcs.
2 What is the payment terms? Negotiation.
3 Can you accept special requirement? Yes, we can.we can design for your special requirement.
4 Can you make the printing artworks(such as user manual/packing/rating label) in our language? Yes we can.we do OEM work for a long time.
5 Can we order samples? Yes, you can ,and free samples are available.
