Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler
Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler
Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler
Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler
Specifications
Description
Product Description

PTC-UAV-MP6Pwith Manpack and Handbag designed for blocking the Drone Signal up to 6channels (the frequencies can be customized), it is a light weight easy-to-use drone Jamming model to defend airspace against the commercial UAVs/Drones Signals. It has been Successfully and widely in many fields.

Product Parameters
Channel Working Frequency Channel Power(±3dBm)
CH1 1505-1620MHz 10W
CH2 2400-2500MHz 30W
CH3 2400-2500MHz 30W
CH4 5150-5250MHz 30W
CH5 5725 - 5850MHz 30W
CH6 860-930MHz 5W
Total Working Channels 6 channels
Total Working Output 135W
Jamming distance 50-1000meters
Signal Source and Jamming Solution AI Technology
Jamming Target Commercial Drones
Battery working time for Jamming 40minutes
Battery Consumption Indicator Battery consumption level LED Indicator
Internal Modulation FM Hopping Frequency and Sweeping
Power Supply 220VAC
Antenna Built-in internal High gain Directional antenna
Power consumption 400W
Weight 8Kg
Dimension 370mm×270mmx250mm
Humidity 5%-95%
Operation temperature -20 to +50ºC


Technical Features

  1. Ultrahigh frequency board-band and the State-of-art Digital jamming technology

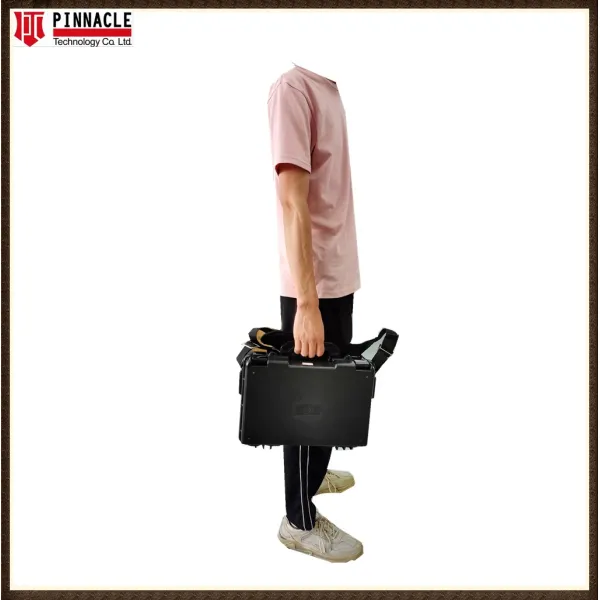

  2. Manpack and Handbag design, Easy to carry, more hidden.
  3. Wide coverage of 6 Frequencies with high effective power
  4. Long Battery working time: about 40 minutes, easy and fast design for changing the battery. More batteries can be available with additional cost for option.
  5. Jamming Range may up to 1000m.
  6. Effective segmentation to block each drone controlled signals.
  7. Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation.
  8. Perfect self-protection function, when the device is overheated, over output -power, standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.


Operation Instructions


Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler
How to Use

Backpack the Drone jammer, the high gain Omni antennas will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).


Rechargeable Battery
Battery type: Lithium Iron Battery
Battery quantity: 1pcs
Battery capacity: 25.9V/4Ah
Battery working time: 40-minutes
Battery Usage Level Indicator
Low battery warning: available
Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler


Product Application
Manpack Anti Drone FPV 400Mhz/900Mhz/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G Drone Jammer UAV Scrambler

Applications:

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Arm-y Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities etc.
