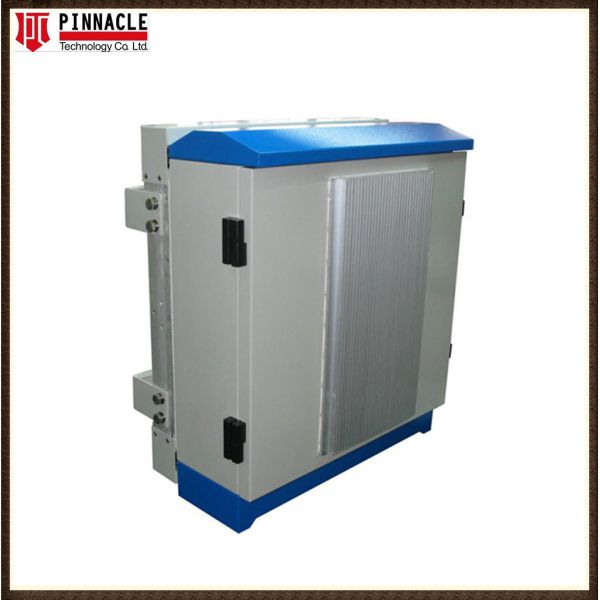

Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Outdoor High Power Wateproof Digital Signal Repeater
Specifications
MOQ :
1set
Packaging Details :
Carton
Certification :
ISO 9000
Model Number :
PTC-HPA1.2G-800W
Supply Ability :
50000
Place of Origin :
Shenzhen China
Price :
Contact Us
Delivery Time :
10-20days
Brand Name :
PTC
Description
Product Overview
The PTC CarrierPro™ Outdoor Digital Signal Repeater is a next-generation broadband RF coverage solution designed for large-scale outdoor cellular and WiFi coverage projects.
Built with the latest digital RF processing technology, each RF channel delivers 100W independent RF output power, providing a total output power of 600W (6 Bands) or 800W (8 Bands).
Unlike conventional repeaters requiring multiple service antennas, the CarrierPro™ adopts an integrated broadband RF combining architecture, allowing all frequency bands to share one ultra-wideband high-gain directional panel antenna, significantly simplifying installation while reducing feeder loss and deployment costs.
Designed for telecom operators, enterprises, oil & gas fields, mining sites, ports, airports and remote communities.
Typical Frequency Configuration
6 Band Version
Channel Frequency
CH1 700 MHz
CH2 850 MHz
CH3 AWS 1700/2100 MHz
CH4 1900 MHz
CH5 2600 MHz
CH6 WiFi 2.4 GHz
8 Band Version
Channel Frequency
CH1 700 MHz
CH2 850 MHz
CH3 900 MHz
CH4 1800 MHz
CH5 AWS 1700/2100 MHz
CH6 1900 MHz
CH7 2600 MHz
CH8 WiFi 2.4 GHz / 5.8 GHz
Custom frequency combinations available upon request.
Technical Specifications
Item Specification
RF Channels 6 / 8 Independent Channels
RF Output Power 100W per Channel
Total Output Power 600W / 800W
Technology Fully Digital Broadband Repeater
Maximum Gain 95-105 dB
Gain Adjustment 1 dB Step
Automatic Gain Control Yes
Automatic Level Control Yes
Digital Filtering Yes
Low Noise Figure ≤4 dB

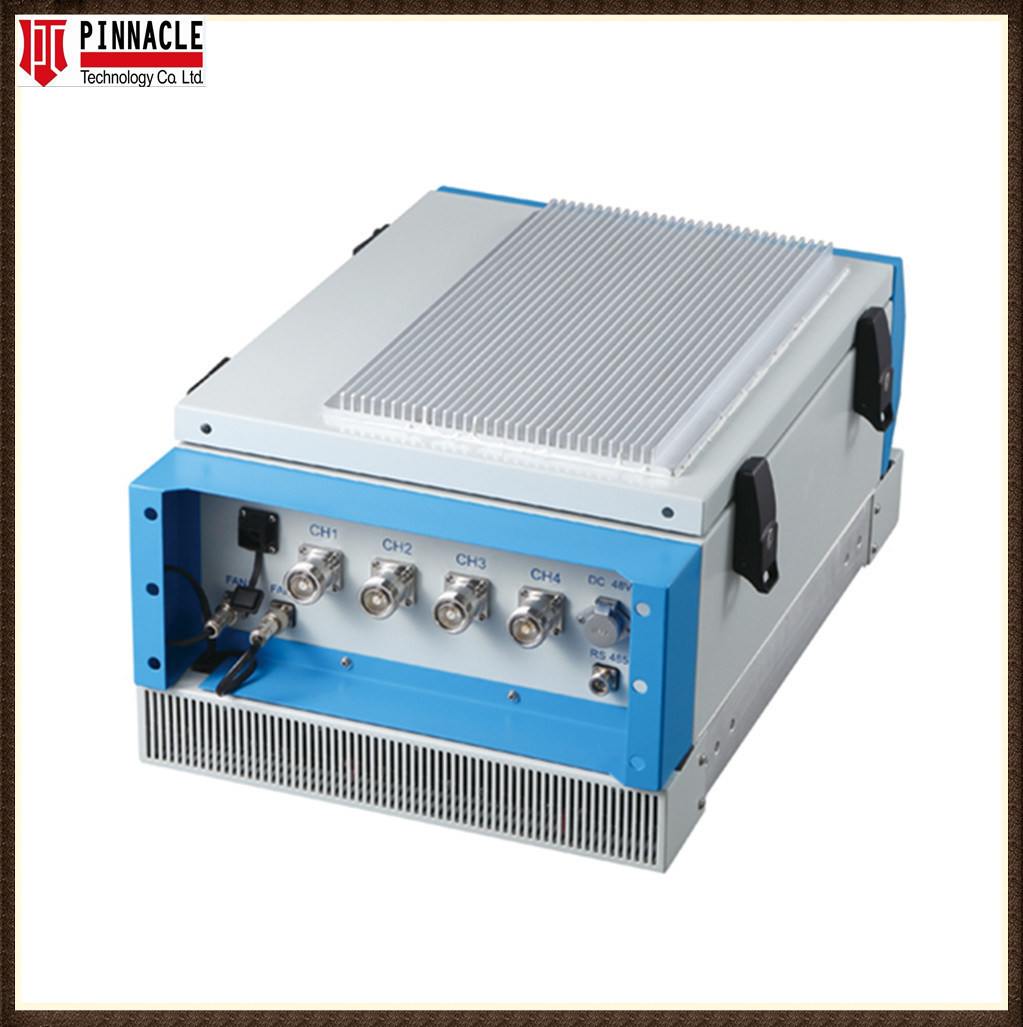

RF Connector 4.3-10 Female / N Female
VSWR ≤1.5
Impedance 50 Ω
Isolation >100 dB
Frequency Stability ±0.005 ppm
Network Interface RJ45 Ethernet
Remote Management Web GUI / SNMP / Cloud
Alarm Email / SMS / Platform (Optional)
GPS Synchronization Optional
Power Supply AC 100-240 V
DC Input 48 VDC Optional
Power Consumption ≤1800 W
Cooling Intelligent Multi-Fan System
Waterproof Rating IP67
Operating Temperature −40°C to +65°C
Humidity 5-95% RH
Dimensions 620 × 480 × 240 mm
Weight 50kg
Advanced RF Technology
  • Digital RF Signal Processing (DSP)
  • Adaptive Gain Control
  • Intelligent Echo Suppression
  • Automatic Oscillation Detection
  • Ultra-Low Noise Amplifier
  • High Linearity Power Amplifier
  • Digital Channel Filtering
  • Wideband RF Combining Network
  • Carrier-Grade Signal Stability
  • High Dynamic Range Design
  • Low Intermodulation Distortion
  • Remote Firmware Upgrade
  • Intelligent Self-Diagnosis

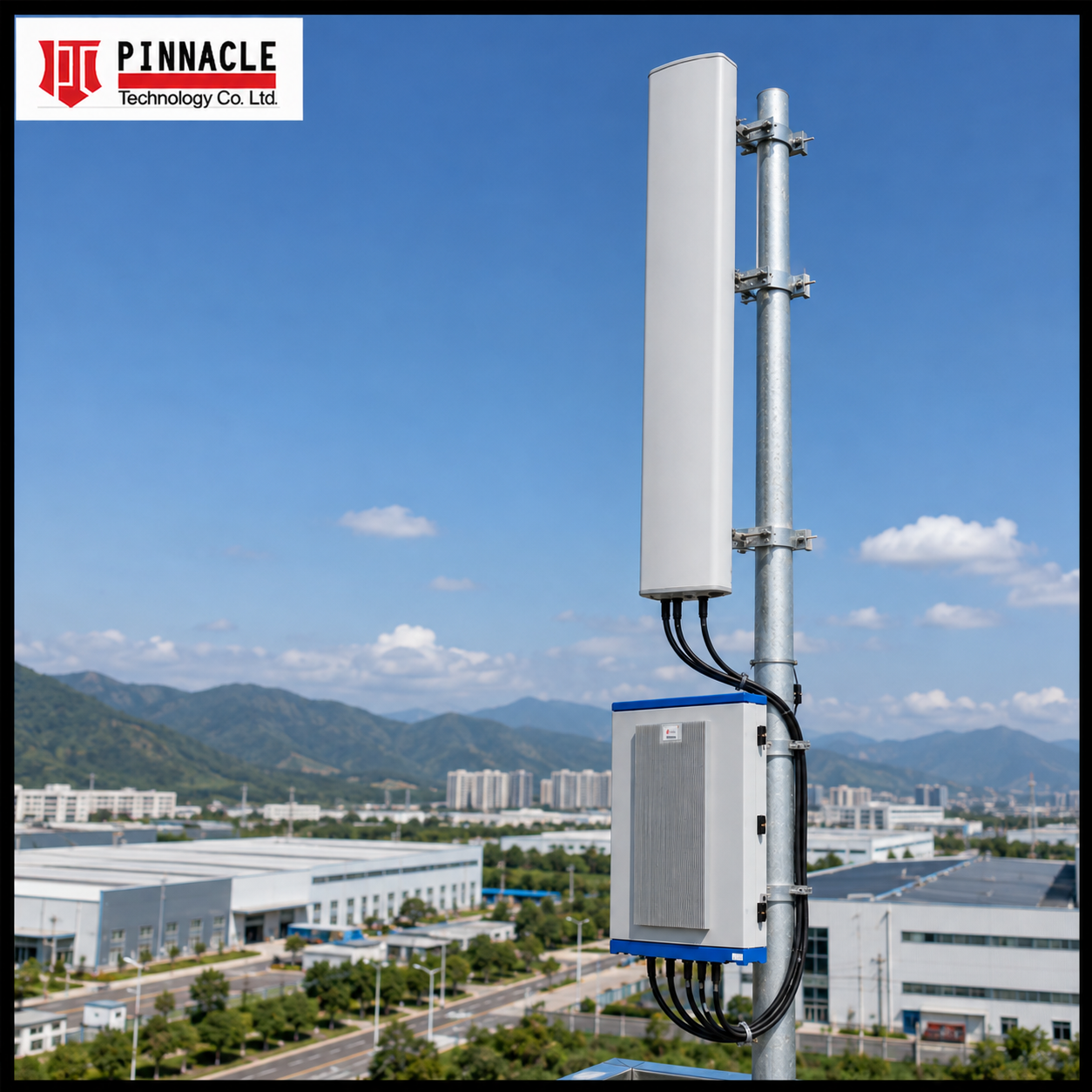

Broadband Panel Antenna Solution
The system supports one ultra-wideband high-gain directional panel antenna covering all configured frequency bands.
Advantages
  • One antenna for all 6 or 8 bands
  • Reduced installation time
  • Lower cable loss
  • Lower installation cost
  • Simplified maintenance
  • High front-to-back ratio
  • Long-distance directional coverage
  • Optimized for large outdoor areas
Intelligent Network Management
  • Remote Web Access
  • Cloud Management Platform
  • SNMP
  • Ethernet Communication
  • Remote Firmware Upgrade
  • Real-Time Status Monitoring
  • Output Power Monitoring
  • Temperature Monitoring
  • VSWR Monitoring
  • Alarm Notification
  • User Permission Management
  • Device Log Recording
Typical Coverage Applications
  • Oil & Gas Fields
  • Mining Sites
  • Airports
  • Ports
  • Industrial Parks
  • Large Warehouses
  • Border Security
  • Highways
  • Railway Stations
  • Stadiums
  • Smart Cities
  • Remote Villages
  • Tourist Areas
  • Mountain Regions
Coverage Reference
RF Output Power Coverage Area*
20 W 2,000-10,000 m²
40 W 5,000-20,000 m²
80 W 15,000-50,000 m²
100W 10-40KM
