Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
Specifications
MOQ :
1set
Packaging Details :
Carton
Jamming Range :
0.5–2 KM
Certification :
ISO 9000
Model Number :
PTC-UAV-DJ100
System Type :
Fixed Installation
Part No :
PTC-UAV-DJ100
Supply Ability :
50000
Detection Distance :
2-6km
Precision Jamming Bands :
900 MHz / 2.4 GHz / 5.2 GHz / 5.8 GHz
Direction Finding Range :
0-2km
Place of Origin :
Shenzhen China
Price :
Contact Us
Direction Finding :
2-6G
Delivery Time :
10-20days
Detection Frequencies :
100-6000mhz
Brand Name :
PTC
Description
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz

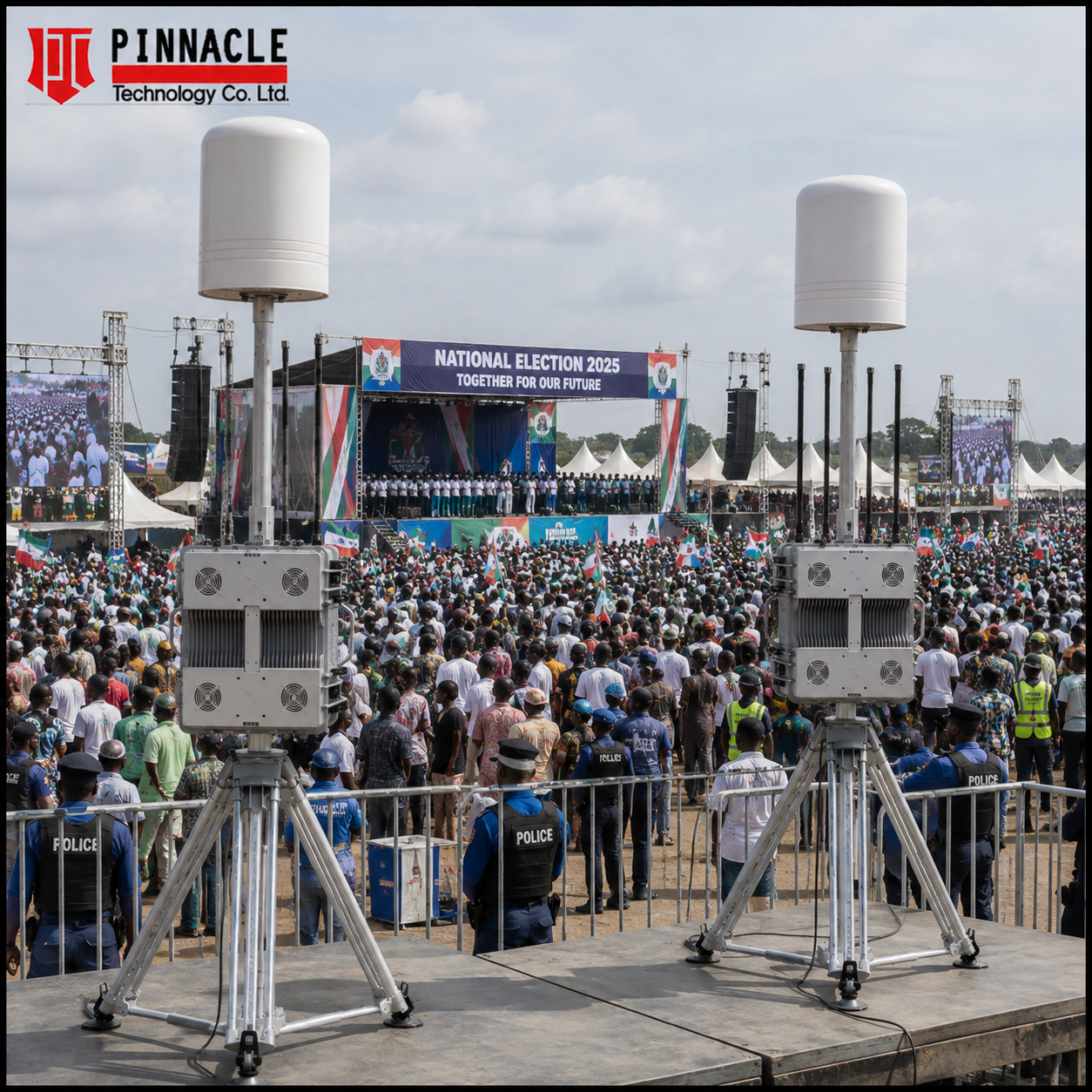

The Fixed Anti Drone Detector with Direction Finding and Precision Jamming System is an integrated counter-UAS solution designed for professional protection of critical infrastructure, industrial facilities, airports, prisons, oil and gas sites, stadiums and other controlled areas.
The system combines wideband drone signal detection, RF direction finding and precision multi-band response in one fixed-site platform. It can monitor drone-related RF signals across 100-6000MHz, with a detection range of approximately 2-6KM, depending on the environment, target signal and system configuration.
For signal localization, the system provides direction finding from 2-6GHz, with a direction-finding range of approximately 0-2KM. This helps security personnel determine the direction of detected UAV-related signals and improve situational awareness.
The precision response subsystem supports configured bands including 900MHz, 2.4GHz, 5.2GHz and 5.8GHz, with an effective response range of approximately 0.5-2KM, depending on installation conditions and local RF regulations.
Key Features
  • 100-6000MHz Wideband Drone Detection
  • 2-6KM Detection Range
  • 2-6GHz Direction Finding
  • 0-2KM Direction-Finding Range
  • 900MHz / 2.4GHz / 5.2GHz / 5.8GHz Precision RF Response
  • 0.5-2KM Response Range
  • Fixed outdoor installation
  • Suitable for continuous site monitoring
  • Integrated detection, direction finding and response architecture
  • Designed for professional UAV security applications
Technical Specifications
Function Specification
Drone Detection Frequency 100-6000 MHz
Detection Range 2-6 KM
Direction Finding 2-6 GHz
Direction Finding Range 0-2 KM
Precision Jamming Bands 900 MHz / 2.4 GHz / 5.2 GHz / 5.8 GHz
Jamming Range 0.5-2 KM
System Type Fixed Installation
Applications Critical Infrastructure, Industrial Sites, Prisons, Airports, Stadiums, Border Security, Oil & Gas Facilities
Fixed anti-drone detection system with 100-6000MHz detection, 2-6KM range, 2-6GHz direction finding and multi-band precision RF response. Contact us for technical specifications.
Fixed Anti Drone Detector with Direction Finding and Precision Jamming System 100-6000MHz
PINNACLE Technology Co., Ltd. provides professional RF and counter-UAS solutions with configurable system architectures for different site sizes and security requirements.
