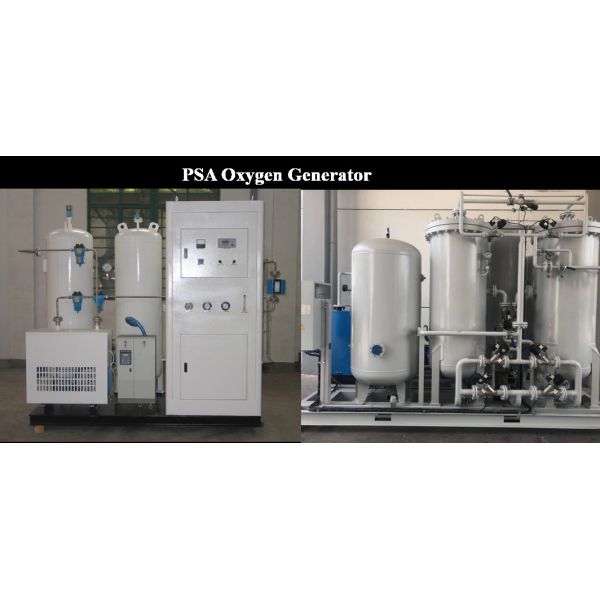

Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Automatic PSA Oxygen Generator, Hospital, medical, and Filling Production Line
Specifications
Capacity :
5-1500 Nm3/h
Purity :
90%-95%
Dew point :
-65℃
Operate power :
1 KW
Operation :
Fully automatic
Life span :
8-10 years
Consumption :
Energy-saving
Application :
Hospital Filling Production Line
Material :
Carbon steel/stainless steel
Brand Name :
Joshining
Model Number :
JO-PO
Certification :
CE,ABS,CCS,BV,DNV,ASME,GOST,
Place of Origin :
Suzhou,China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000 sets/year
Delivery Time :
2 months after received down payment
Packaging Details :
Normal exported wooden case
Description
Automatic PSA Oxygen Generator for Hospital, Medical, and Filling Production Lines
Product Specifications
Attribute Value
Capacity 5-1500 Nm3/h
Purity 90%-95%
Dew point -65℃
Operate power 1 KW
Operation Fully automatic
Life span 8-10 years
Consumption Energy-saving
Application Hospital Filling Production Line
Material Carbon steel/stainless steel
PSA Industrial Oxygen Generator Technology

Our PSA (Pressure Swing Adsorption) technology represents a revolution in non-cryogenic air separation and oxygen generation, utilizing a special grade of Zeolite Molecular Sieve (ZMS).

The system operates by passing compressed air through a Twin Tower PSA module with automatic changeover valves. After drying in a Refrigerated Dryer, the air contacts the ZMS bed which preferentially adsorbs nitrogen molecules. While one tower produces nitrogen, the other undergoes regeneration through depressurization. The oxygen output is collected in a surge vessel where pressure is maintained by a Back Pressure Regulator.

Technical Specifications
Model No JO-PO
Capacity 2~240Nm³/h
Purity 50~95%
Initial Pressure 0.05~0.55Mpa (Customized)
DewPoint ≤-45°C (Customized)
Operating Principle

The system utilizes zeolite molecular sieve as a sorbent to produce oxygen through PSA technology. The molecular sieve demonstrates greater nitrogen adsorption capacity than oxygen under specific pressures. A PLC controls pneumatic valves to alternate adsorption and desorption cycles between two towers, achieving oxygen/nitrogen separation and producing oxygen at desired purity levels.

Quality Assurance & Service
  • 12 months quality warranty after acceptance or 18 months after equipment delivery
  • Lifetime maintenance service commitment
  • 36-hour on-site response for domestic customers during warranty
  • Comprehensive training in operation, maintenance, and troubleshooting
  • 24/7/365 technical support
  • Scheduled maintenance reminders and regular system surveys
  • Lifetime availability of accessories and wear parts
  • Free remote instruction and training
  • Affordable spare parts and service after warranty
  • Individual trace files and quarterly surveys for all products
Applications
  • Ferrous metallurgy: Electric furnace steel making, blast furnace iron making, cupola oxygen blasting, heating, and cutting
  • Non-ferrous metal refineries: Productivity improvement, energy cost reduction, and environmental protection
  • Water treatment: Oxygen aeration, active sludge process, surface water reaeration, fish farming, and industrial oxidation
  • Other industries: Chemical production, solid waste incineration, concrete production, and glass manufacturing
  • Custom high-pressure systems available (up to 250 bar) for cylinder filling
  • Medical-grade oxygen production with optional purification systems
