1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
1-1.5s Sealing Time Blood Bag Tube Sealer for Blood Bank and Hospital Automatic Sealing Type
Specifications
Brand Name :
Cenlee
Model Number :
FR-6.0
Certification :
ISO9001/13485，CE
Place of Origin :
China
MOQ :
1 set
Price :
550-711USD PER UNIT
Payment Terms :
Western Union, L/C, D/P, T/T
Supply Ability :
5000 sets per month
Delivery Time :
10 working days
Packaging Details :
carton
Model :
FR-6.0
Name :
Bag Tube Sealer
Sealing Type :
Automatic
Application :
PE or PVC, outer diameter 2mm--6mm, wall thickness
dimension(l*w*h) :
355mmx180mmx175mm
Maximum Seal Width :
6mm
sealing time :
1-1.5s
Power :
working: 150W / standby: 3W
Power supply :
AC single phase, 110V or 220V±10V, 50Hz/60Hz, 5A
Description

Blood Sealing Machine Blood Bag Tube Sealer for Blood Bank and Hosiptal

Product Description:

The automatic heat sealer is used for sealing and heat sealing of medical PVC blood collection bag catheters.
It is mainly applicable to the blood transfusion department, blood collection department and component department of the hospital at all levels, blood bank and medical research and so on. Working Principle: The high-frequency electrode on the heat-sealing head conducts high-frequency induction heating to the PVC pipeline, so that the PVC pipeline reaches a molten state (the PVC material conduit is polarized under a high-frequency electric field), and the heat-sealing electrode presses the molten part. A heat seal is completed after the time.
Main Features:
1. Adopt transistor high frequency generator. Its radiation is weak.
2. The circuit is mature and stable. Safe and reliable. Long service life.
3. The heat sealing process is fully automated. There is no voltage adjustment and time adjustment.
4. Humanized design with small size, light weight, easy movement and simple operation.
5. The advantages of rapid, accurate and stable heat sealing are suitable for heat sealing of mobile blood collection tubes. Operation

Instruction:

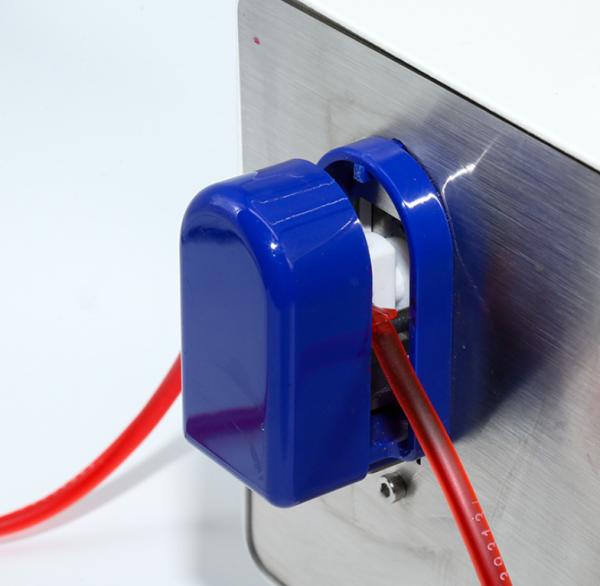

1. Pinch the two sides of the pipeline to be heat-sealed with both hands, and put the pipeline into the heat-sealing tank.
2. Use a little more force with your right hand to trigger the probe/switch in the heat seal slot.
3. At this time, the heat sealing head slowly pulls in, which is the working state.
4. About 2-6 seconds, the heat sealing is completed at this time, and it stops automatically.
5. After the heat sealing is completed, take out the heat sealing hose, cut the hose along the heat sealing gap or pull the hose slightly with both hands to separate the two sections.
Product describtion
Specification
model
FR-6.0
Sealing Time
1-1.5s
Power supply
150W, AC110/220V ±10%, 50/60Hz
Sealing Type
Automatic
Name
Blood Bag Tube Sealer
Applicable
hospital biological industry
materials
Dimensions
Diameter of Tube
2mm~6mm, wall thickness ≤1.5mm
N.W/G.W
6.5/7kg
Applicable materials
PE or PVC, outer diameter 2mm--6mm, wall thickness ≤1.5mm
RF Power
30w
Operation method
Plug in
Application
hospital biological industry
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q: Are you manufacturer or trader?
A: CenLee has been specialized in manufacturing laboratory centrifuges for more than 40 years.

Q: Do you accept small orders?
A: Yes, our MOQ is one set laboratory centrifuge.

Q: What's the delivery time of high speed centrifuge?
A: 1~7 days after payment received. (According to the order,maybe longer.)

Q: Is there any discount on the price?
A: Definitely we have, As professional high speed laboratory centrifuge manufacturer in China. We have very competitive and
favorable price in this market. because we are factory and we run big volume. More quantity, more discount.

Q: Can you accept customer's designs?
A: Yes, We have technical support and satisfactory training. ODM/OEM are available.

Q: Can you make customer's design(logo) on the package?
A: Yes, OEM/ODM package is acceptable.

Q: Do you have after-sales sevice?
A: Yes,we have. We can offer you operation vedio of high speed laboratory centrifuge.
