250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250
Specifications
Brand Name :
Winston/OEM
Model Number :
WSTR3000 Series
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD165 to USD3000
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Voltage :
380VAC
Power :
5.5KW to 630KW
Phase :
3 phase
OEM :
Yes
RS485 :
Yes
Protection class :
IP20
Frequency :
50/60HZ
Description

250KW 380 Volt AC Motor Soft Starter Three Phase , Electronic Soft Starter WSTR3250

General


WSTR3 Series soft starter can work with three phase,AC squirrel cage induction asynchronous motor,the voltage is 320V-460V,50Hz/60Hz and the current is 1200A and below.The soft starter is a device type.it is necessary t add breakers(short circuit protection) and AC Contactor (Bypass) inside the cabinet.together with switches are made up of electric motor control circuit.

Mail function

This Motor Soft Starter can reduce the starting current of Motor and the power-distribution capacity to Motor effectively , so it could save the cost .
Can reduce the starting stress of motor and other loading equipments , so that lengthen their service life .
The function of soft stopping can solve effectively the surging problem of inertia system when stopping . The conventional motor starting equipments can not realize it .
The perfect and reliable protection features , can give the effective protection to the operator's safety as well as the motor and matched equipments.

The External shape and installation dimensions of 5.5KW-55KW

Type Power(KW) Current(A)
WSTR3005-015 5-15KW 30
WSTR3018 18KW 36
WSTR3022 22KW 44
WSTR3030 30KW 60
WSTR3037 37KW 74
WSTR3045 45KW 90
WSTR3055 55KW 110
WSTR3075 75KW 150
WSTR3075 75KW 150
WSTR3090 90KW 180
WSTR3115 115KW 230
WSTR3132 132KW 264
WSTR3160 160KW 320
WSTR3200 200KW 400
WSTR3250 250KW 500
WSTR3320 320KW 640
WSTR3400 400KW 800
WSTR3450 450KW 900
WSTR3500 500KW 1000
WSTR3630 630KW 1260

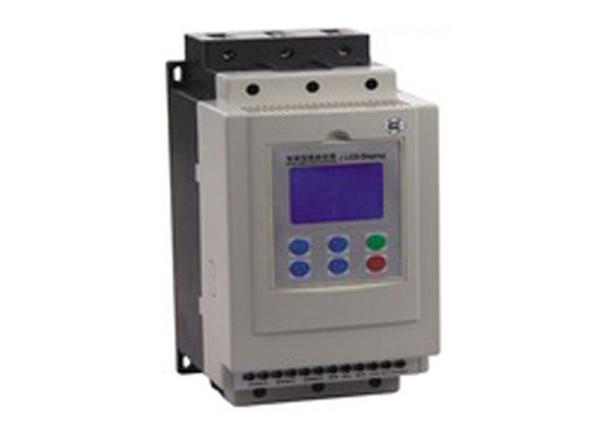

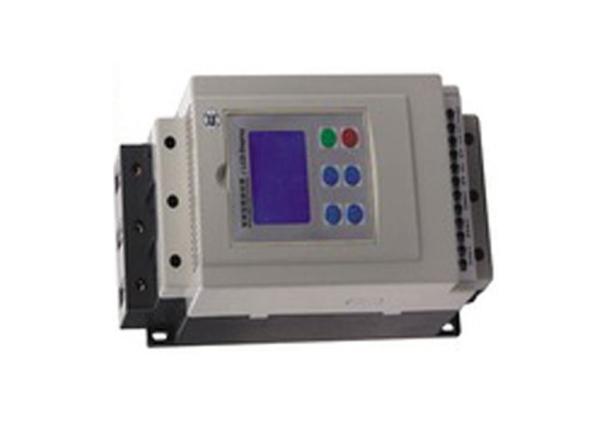

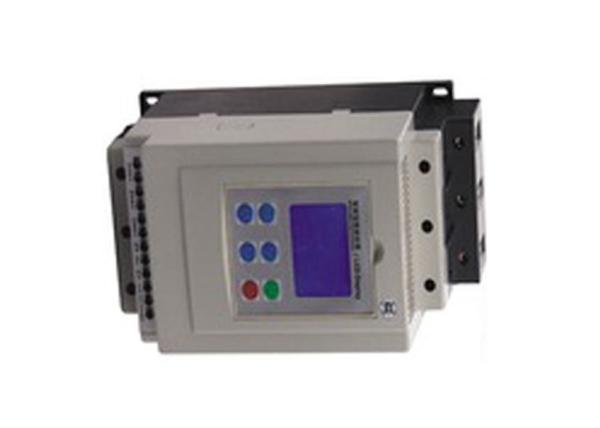

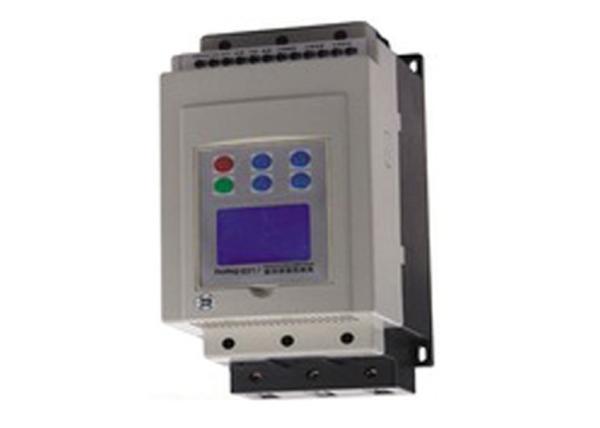

Product picture

250KW 380 Volt AC Motor Soft Starter Three Phase Electronic WSTR3250

Our Services
  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
