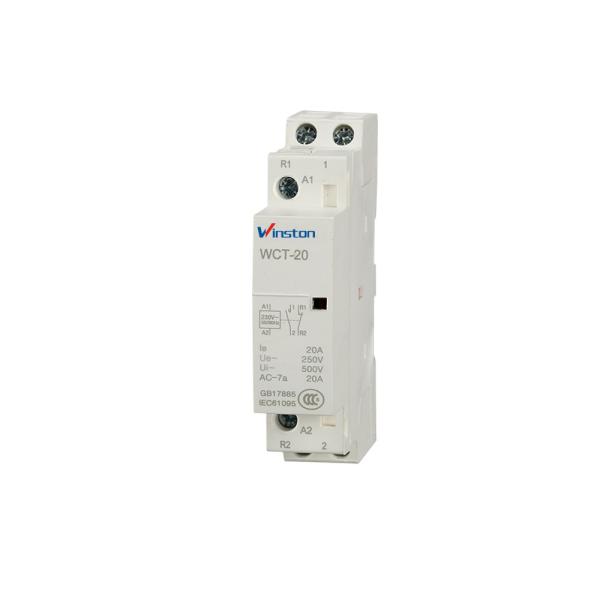

20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control
20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control
20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control
20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control
Specifications
Brand Name :
Winston/OEM
Model Number :
WCT 20A 2P 1NO NC
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD3.03 to USD6.8
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Main Circuit Rating Voltage :
220VAC
Phase :
2
Type :
Small Contactor
OEM :
Yes
Degree of protection :
IP40
Frequency :
50Hz/60Hz
Main Circuit Rating Current :
3.8VA
Width :
18mm
Rated current :
20A
Description

Hot Chinese Product 20A 1NO NC Electricity WCT 2P Small Contactor

Product description

The breadth of the WCT contactor range satisfies most application cases.
WCT contactors can be combined with auxiliary control, protection and indication functions.

Technical data

Rating(In) AC7a

Control voltage

(VAC)(50Hz)

 Contact Width modul
2P 20A 230...240 2NO 2
Power circuit
Voltage Rating(Ue) 1P, 2P
250VAC
3P, 4P
400VAC
Endurance(O-C)
Electrical
100000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation voltage(Ui)
500VAC
Pollution degree
2
Rated impulse withstand voltage(Uimp)
2.5kV(4 kV for 12/24/48V AC)
Degree of protection

(IEC 60529)
Device only
IP20
Device in modular enclosure
IP40
Tropicalization (IEC 60068-1)
Treatment 2(relative humidity 95% at 55℃)

Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed at the place where there shall be no severe impact and vibration.

Consumption

WCT contactors-50Hz
Raring(In)
Control voltage(V AC)(50Hz)
Consumption
Max.
power
AC7a
AC7b
Holding
Inrush
2P
20A
6.4A
230....240
2.7VA
9.2VA
1.2W

Dimension

20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control

Connection

20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control

20A 1NO NC Electricity WCT 2P Small AC Contactor Auxiliary Control
