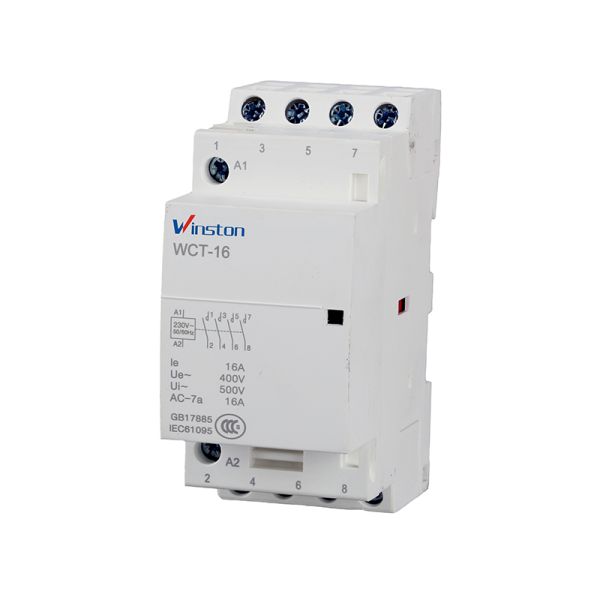

220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
Specifications
Brand Name :
Winston/OEM
Model Number :
WCT 16A 4P 4NO
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD5.1 to USD8.41
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Main Circuit Rating Voltage :
220VAC
Phase :
4 phase
Rated voltage :
220 / 230 380 / 400 v
OEM :
Yes
Degree of protection :
IP40
Frequency :
50Hz/60Hz
Main Circuit Rating Current :
3.8VA
Width :
36mm
Description

220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

Advantage.

- Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;


- The fast and flexible production form aim at the customer require;


- The deliveries exactly in accordance with customer orders


- The fast transportation.

Technical data

Rating(In) AC7a

Control voltage

(VAC)(50Hz)

 Contact Width modul
4P 16A 24 4NO 4
220...240 4NO 4
220...240 2NO+2NC 4
Power circuit
Voltage Rating(Ue) 3P, 4P
400VAC
Endurance(O-C)
Electrical
100000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation voltage(Ui)
500VAC
Pollution degree
2
Rated impulse withstand voltage(Uimp)
2.5kV(4 kV for 12/24/48V AC)
Degree of protection

(IEC 60529)
Device only
IP20
Device in modular enclosure
IP40
Tropicalization (IEC 60068-1)
Treatment 2(relative humidity 95% at 55℃)

Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • Pollution class 2.
  • Installation method DIN Rail mounting type.

Consumption

WCT contactors-50Hz
Raring(In)
Control voltage(V AC)(50Hz)
Consumption
Max.
power
AC7a
AC7b
Holding
Inrush
4P
16A
5A
24
4.6VA

34VA
1.6W
220...240
4.6VA
34VA
1.6W
220....240
4.6VA
34VA
1.6W

Dimension

220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor

220V WCT 4 Phase 4NO Air Conditioner Parts Types Of Contactor
