Specifications
Brand Name :
Winston/OEM
Model Number :
MFR 012
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD 8.33 pcs
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Temperature range :
0~60°C;-10~+50°C
Service life :
> 50,000 cycles
Enclosure material :
Plastic
Voltage :
15A AC120V,10A AC250V
Protection type :
IP20
Working temperature :
-45℃~+80℃
Size :
60*33*43mm
Frequency :
50/60HZ
Description

Electromechanical Mechanical 25V Adjustable MFR 012 DC Room Thermostat

  1. Adjustable relative humidity
  2. Change-over contact
  3. High switching capacity
  4. Easily accessible terminals


The electromechanical hygrostat MRF 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded.

In this way condensation and corrosion is effectively prevented.

TECHNICAL PARAMETER

Switch difference*

4% RH (±3% tolerance)

Permissible air velocity

15m/sec

Contact type

change-over contact

Service life

> 50,000 cycles

Min. switching capacity

20V AC/DC 100 mA

Max. switching capacity

25VAC, 5A

DC 20W

Connection

3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm²,

stranded wire (with wire end ferrule) 1.5mm²

Mounting

clip for 35mm DIN rail, EN60715

Casing

plastic according to UL94 V-0, light grey

Weight

approx. 60g

Fitting position

variable

Operating / Storage humidity

max. 90 % RH (non-condensing)

Protection type

IP20

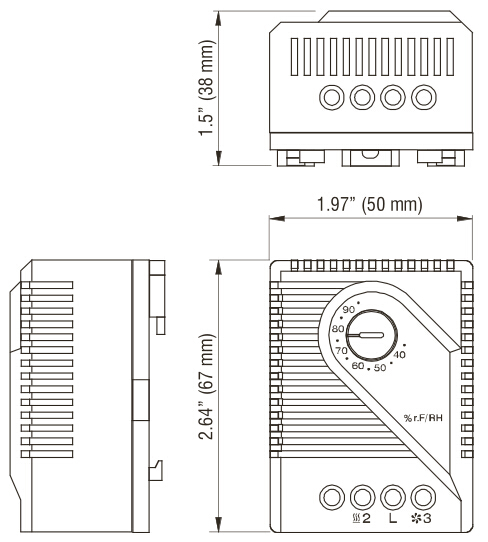

DIMENSION

Adjustable MFR 012 DC Room Thermostat Electromechanical Mechanical 25V IP20

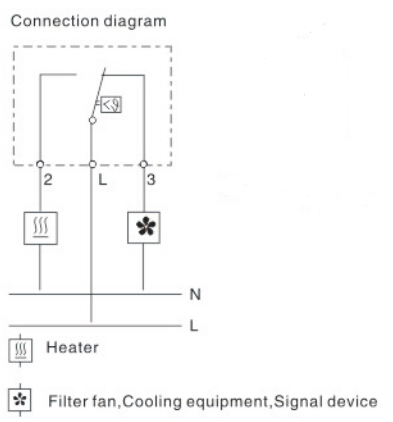

WIRING DIAGRAM

Adjustable MFR 012 DC Room Thermostat Electromechanical Mechanical 25V IP20

Adjustable MFR 012 DC Room Thermostat Electromechanical Mechanical 25V IP20
