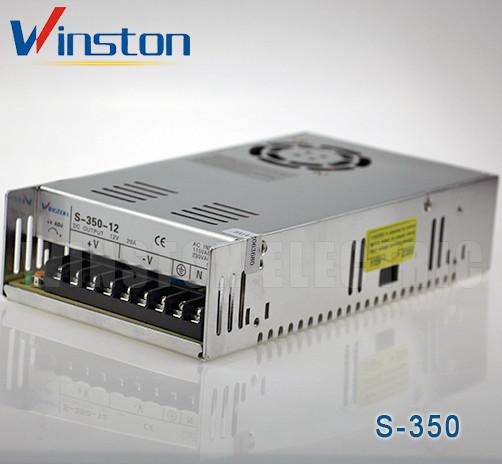

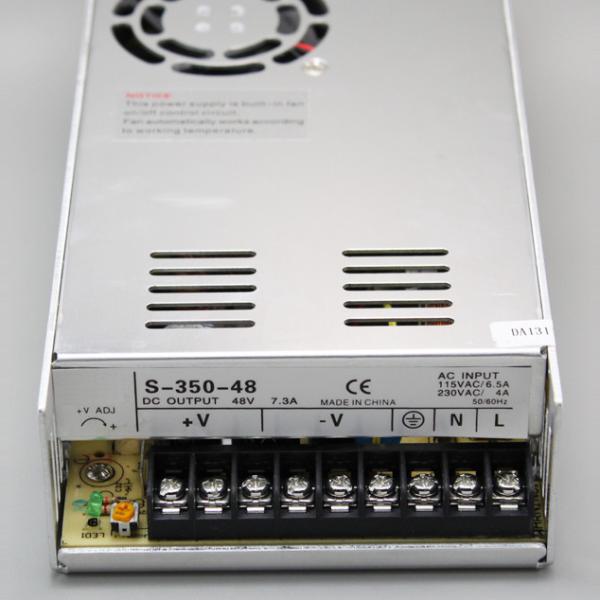

Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
Specifications
Brand Name :
Winston/OEM
Model Number :
S-350W 12V 15V 24V 48V
Certification :
CE,ROSH
Place of Origin :
China,Zhejiang
MOQ :
1PCS
Price :
USD18.26 to USD20.9
Payment Terms :
T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :
10000PCS/Month
Delivery Time :
3-15days after get payment.
Packaging Details :
Export standard carton box
Warranty :
2 Years
OEM :
YES
ODM :
YES
Dimensions :
215*115*50mm
Condition :
Original New
Weight :
1KG
Output Power :
350w
Working temperature :
-10℃~+50℃
Description

Classic Normal S-350 Seires 12V 350W Single Output Switch Mode Power Supply

Feature

Built-in active power factor correction(PFC) function for SP models

Built-in EMI filter, extreme low ripple

100% full load burn-in test

Application : Industrial control, security, intelligent building, LED lighting etc.fields


Summary

  • Single output: power 350w
  • Input voltage: 90-132VAC/180-264VAC

Technique parameter:

Model

S-350

-5

S-350

-9

S-350

-12

S-350

-15

S-350

-18

S-350

-24

S-350

-27

S-350

-36

S-350

-48

S-350

-60

S-350

-70

S-350

-110
DC output voltage current 5V 0-50A 9V 0-38A 12V 0-29A 15V 0-23.3A 18V 0-19.4A 24V 0-14.6A 27V 0-13A 36V 0-9.7A 48V 0-7.3A 60V 0-6A 70V 0-5A 110V 0-3.2A
Wave and noise

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

150

mVp-p

200

mVp-p

200

mVp-p

240

mVp-p
Inlet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stablity ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 73% 78% 83% 83% 84% 85% 85% 85% 86% 86% 86% 86%
Adjustable range for DC voltage ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
input voltage range 90-132VAC/180-264VAC by switch 254-370VDC 47-63Hz
Inpact current Cold start current 50A/230VAC 25A/115VAC
Overload proctection 105%-135% cut off the output, automatic recovery
Over-voltage protection 115%-150% shut down O/P voltage, re-power on to recover
Setup rise hold up time 200ms, 50ms, 20ms/230vac at full load
Withstand voltage

I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature -10℃~+50℃
Overall dimension 215*115*50mm
Weight 1kg
Packing 45.5*31.5*26cm/20PCS/20kg

PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.


Dimensions

Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series

Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series

Classic Normal 12V 350W Single Output Switch Mode Power Supply S - 350 Series
