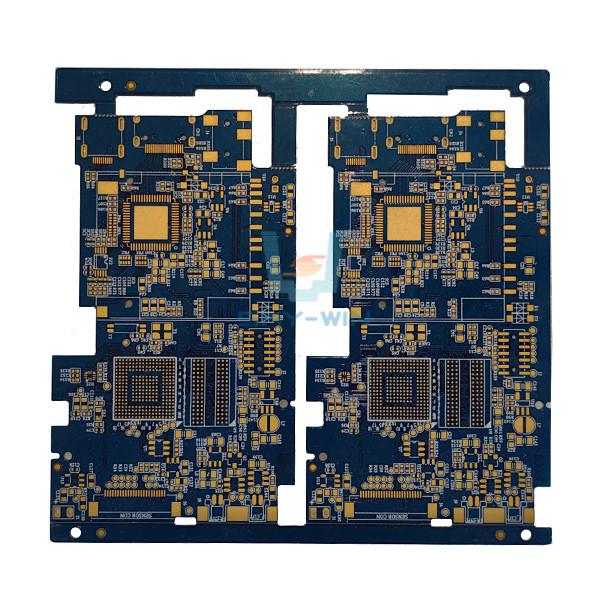

Customized Prototype PCB Assembly Black FR4 Multilayer Printed Circuit Board

Prototype PCB Assembly Capability

Number of Layer 1 - 18 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer - 0.3MM ( 12 mil )
4 Layer - 0.4MM ( 16 mil )
6 Layer - 0.8MM ( 32 mil )
8 Layer - 1.0MM ( 40 mil)
10 Layer - 1.1MM ( 44 mil )
12 Layer - 1.3MM ( 52 mil )
14 Layer - 1.5MM ( 59 mil )
16 Layer - 1.6MM ( 63 mil )
18 Layer - 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 - 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
Flash Gold, Immersion Gold
Immersion Silver, Immersion Tin
Gold Finger, OSP

Prototype PCB Assembly Features


1. One Stop OEM Service, Made in Shenzhen of China
2. Manufactured by Gerber File and BOM List from Customer
3. FR4 Material, Meet 94V0 standard
4. SMT, DIP technology suport
5. Lead Free HASL, Environmental Protection
6. UL, CE, ROHS Compliant
7. Shipping By DHL,UPS, TNT, EMS or Customer requirement

To get a full quotation of the PCB/PCBA, pls provide the information as below:

  • Gerber File, with detail specification of the PCB
  • BOM List (Better with excel fomart)
  • Photoes of the PCBA (If you have done this PCBA before)

Partner with Sky-win PCBA Manufacturing

With our OEM FR4 Electronic PCB Assembly Service, you can streamline your manufacturing processes, reduce costs, and enhance the performance of your consumer electronics. From smartphones and tablets to wearable devices and smart home technology, our comprehensive service is designed to meet the demands of a wide range of electronic products.

Partner with Sky-win and experience a seamless, hassle-free manufacturing journey. Let us be your trusted one-stop solution for OEM FR4 Electronic PCB Assembly Service, and together, we can bring your visionary consumer electronics to life.

Contact us today to learn more about our services and how we can collaborate to create exceptional consumer electronic products that stand out in the market.
