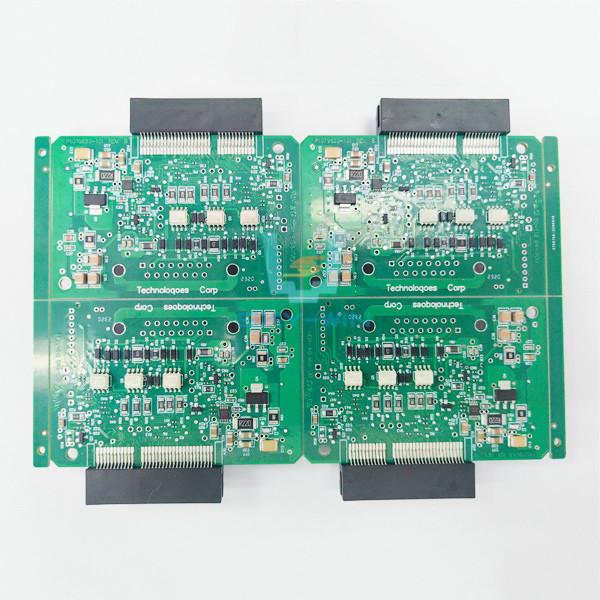

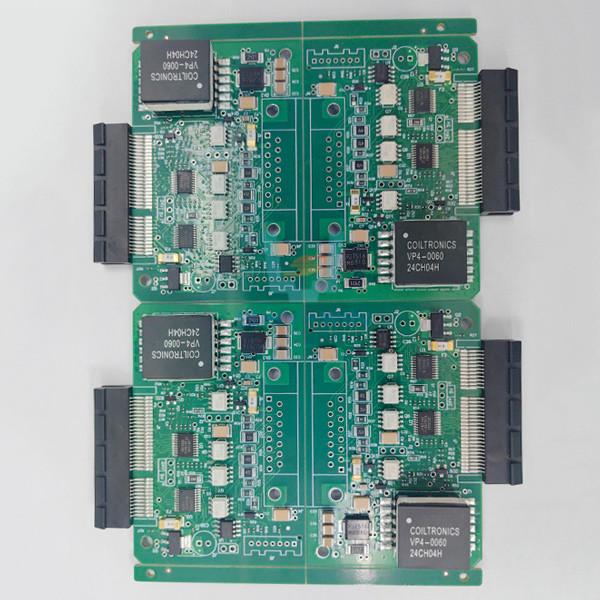

FR4 Medical PCB Assembly ROHS High Frequency Pcb Manufacturer
FR4 Medical PCB Assembly ROHS High Frequency Pcb Manufacturer
FR4 Medical PCB Assembly ROHS High Frequency Pcb Manufacturer
FR4 Medical PCB Assembly ROHS High Frequency Pcb Manufacturer
Specifications
Brand Name :
Sky-Win
Model Number :
003M
Certification :
IATF16949/ROHS
Place of Origin :
Shenzhen
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per months
Delivery Time :
5-8 work days of turnkey pcb assembly
Packaging Details :
Cartons
Item :
Medical PCB Assembly
PCB layers :
1-12layers
Material of Turnkey pcb assembly :
High Speed FR4
Manufacturing quality system :
IATF16949
Solder mask color :
Green,white,black,red,blue…
Silkscreen Color :
White,black,yellow,blue…
Product Case :
Implantable Medical Devices
Min Hole Size :
0.2mm (+/- 0.025)
Copper Thickness :
0.5~4oz
Size :
5mm~1200mm
Surface Finish :
ENIG,OSP,Imm Tin,Imm Silver
Description

Medical PCB Assembly FR4 High Frequency PCB One Stop Design Service For Implantable Medical Devices

High Frequency PCB Concept


High-frequency PCB refers to a special circuit board with a high electromagnetic frequency, which is used for PCB in the field of high frequency (frequency greater than 300MHZ or wavelength less than 1 meter) and microwave (frequency greater than 3GHZ or wavelength less than 0.1 meter). It is a circuit board produced on a microwave substrate copper clad plate by using part of the ordinary rigid circuit board manufacturing process or by using a special treatment method.

Medical PCB Assembly Application

Wearable medical devices

Implantable Medical Devices
Mobile clinical workstation
Medical computer monitor

Parameter of PCB Assembly of Medical For High Frequency PCB

Application Segment Auto,Industrial,Medical,DataCom,Consumer
PCB Layer Count 1~12 Layer
Material High speed FR4, BT, Rogers
Board Thickness 0.2mm~3.0mm
Copper Thickness 0.33oz~3oz
Size 5mm~1200mm
Min. LW/LS(mm) 0.05/0.05
Min. Hole(mm) 0.1
Solder Mask Green, Yellow, Blue, Black, White
Surface Finish ENIG,OSP,Imm Tin,Imm Silver
Certificate IATF16949/ROHS
PCB Service OEM / ODM

Sky-win is an Excellent PCB Assembly Manufacturer In Medical Industry

Medical and PCB manufacturing industry has a close and indispensable relationship, the key medical equipment can not be separated from PCB manufacturing technology and design solutions, and the medical market to comply with high quality standards, but also promote the technical development of PCB manufacturing industry, Shenzhen Sky-win PCBA one-stop service provider, long-term engaged in PCBA, component procurement and other fields of work, products service in medical, transportation, industrial control, consumer electronics and other major fields, for the global intelligent hardware enterprises to provide high standards, high quality hardware manufacturing and processing services!
