FR4 Multilayer Pcb Assembly Manufacturer DIP Infotainment System​
FR4 Multilayer Pcb Assembly Manufacturer DIP Infotainment System​
Specifications
Brand Name :
Sky Win
Model Number :
T7
Certification :
IATF16949
Place of Origin :
China
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
50000pcs per months
Delivery Time :
5-8 days
Packaging Details :
Carton
Material of PCB :
FR-4
Layers :
4 layers
Board thickness :
1.6 mm
PCB quality system :
ROHS
Value-added service :
One years after sale
Material accuracy :
0201+BGA 0.65mm
PCB Glod process :
Immersion Gold
Copper thickness :
3oz（105µm）
Description

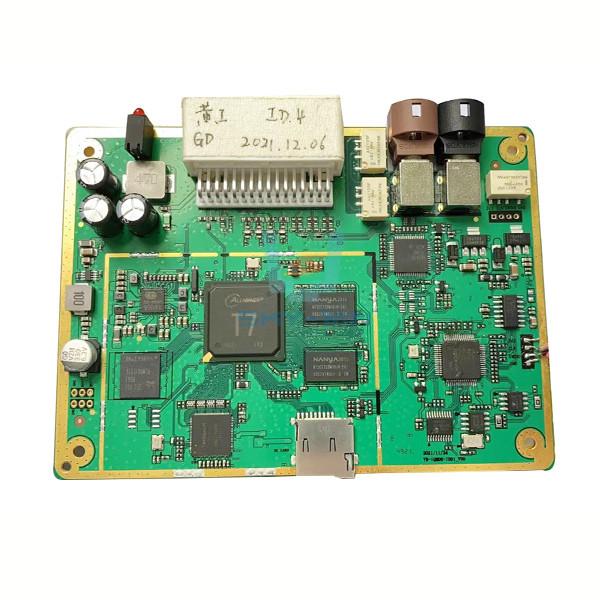

FR4 Multilayer PCB Assembly SMT Assembly Automotive PCB Assembly Service SMT/DIP Infotainment system​

General Introduction of Multilayer PCB

As the name suggests, a multi-layer circuit board can only be called a multi-layer circuit board with more than two layers, such as four layers, six layers, eight layers, and so on. Of course, some designs are three-layer or five-layer circuit, also called multi-layer PCB circuit board.

Conductive wiring diagram larger than the two-layer board. The insulating substrate is separated between the layers. After each layer of the circuit is printed, each layer of the circuit is overlapped by pressing. After drilling, the electrical connection between them is usually achieved through plated through holes on the cross section of the circuit board.

PCBA Testing Services

Our PCBA facility is equipped with state-of-the-art testing and validation equipment. Finished PCB components are checked for proper component placement and functionality through a variety of methods, including AOI inspection, in-circuit testing, and x-ray inspection.

PCBA SMT processing is very complicated and includes multiple important processes, such as PCB board manufacturing process, component procurement and inspection, SMT assembly, DIP, and PCBA testing. Among them, PCBA testing is the most critical quality control step in the entire PCBA processing process. The testing determines the final performance of the product.

PCB Product Detail:

SMT Project name Item T7
Manufacturing process SMT ,DIP , AOI test, X-RAY,CNC panel
Material accuracy 0201+BGA 0.65mm
Number of materials 87 kinds
Material consumption 334 pcs
PCB Glod process Immersion Gold
Number of PCB layers 6 layers
Material FR-4
Board thickness 1.6 mm
Manufacturing quality system IATF16949
PCB quality system ROHS/UL
Application

IEntertainment system, digital instrument, 360 circumnavigation system

ADAS ,DMS
Value-added service 1 year after sale

Quality Assurance

Incoming Quality Control

PCB Incoming Inspection

Automatic X-Ray Inspection

Automated Optical Inspection

Flying Probe Test

Free DFM Check
