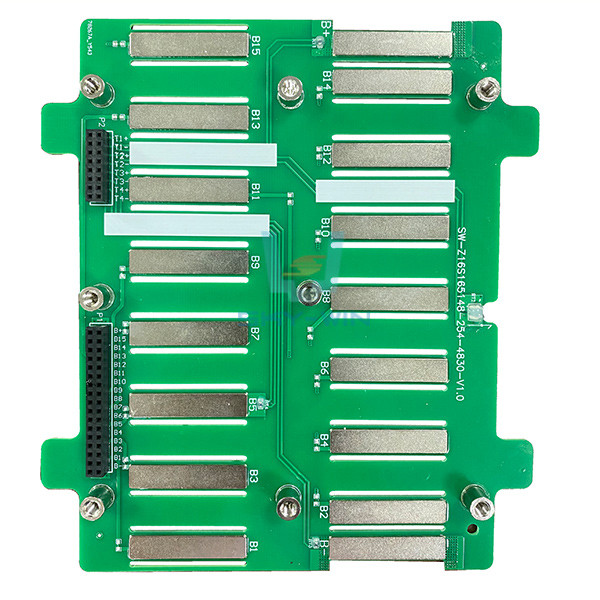

32 Layers Electronic PCB Assembly ROHS Printed Circuit Board Manufacture
32 Layers Electronic PCB Assembly ROHS Printed Circuit Board Manufacture
Specifications
Brand Name :
Sky-Win
Model Number :
Automotive PCB Assembly 3528
Certification :
IATF16949/ROHS
Place of Origin :
Shenzhen
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per months
Delivery Time :
5-8 work days of turnkey pcb assembly
Packaging Details :
Cartons
Item :
Electronic PCB Assembly
PCB process :
immersion gold
PCB layers :
1 - 32 Layers
PCB surface :
Double-sided
Material of Turnkey pcb assembly :
FR-4
Board thickness :
1.6mm
Manufacturing quality system :
IATF16949
PCB quality system :
ROHS/UL
Manufacturing process :
SMT smt patch, DIP, AOI detection, X-RAY irradiation analysis, CNC Panel
Soldermask Color :
Green/White/Black/Yellow/Blue/Red
Description

Green Soldermask SMT Electronic PCB Assembly Printed Circuit Board Manufacturing For Consumer Electronic

What Color Is The Circuit Board Of PCB?


It looks like the substrate determines the color of the PCB, but it's actually the solder resistance film. The substrate is usually green, but the solder shield above it can be blue, yellow, orange, purple, red, black, white, and of course green.

The Importance Electronics PCB Assembly

PCB is the support body of electronic components. The manufacturing quality not only directly affects the reliability of electronic information products, but also affects the integrity of signal transmission between electronic components.

Electronic PCB Assembly Capabilities

Item Capabilities
Layer Count
1 - 32 Layers
Max Board Dimension
24*24" (610*610mm)
Min Board Thickness
0.15mm
Max Board Thickness
6.0mm - 8.0mm
Copper Thickness
Outer Layer:1oz~30oz, Inner Layer:0.5oz~30oz
Min Line Width/Line Space
Normal: 4/4mil (0.10mm); HDI: 3/3mil (0.076mm)
Min Hole Diameter
Normal: 8mil (0.20mm) ; HDI: 4mil (0.10mm)
Min Punch Hole Dia
0.1" (2.5mm)
Min Hole Spacing
12 mil (0.3mm)
Min PAD Ring(Single)
3mil (0.075mm)
PTH Wall Thickness
Normal: 0.59mil (15um); HDI: 0.48mil (12um)
Min Solder PAD Dia
Normal: 14mil (0.35mm); HDI: 10mil(0.25mm)
Min Soldermask Bridge
Normal: 8mil (0.2mm); HDI: 6mil (0.15mm)
Min BAG PAD Margin
5mil (0.125mm)
PTH/NPTH Dia Tolerance
PTH: ± 3mil (0.075mm) ; NPTH: ±2 mil (0.05mm)
Hole Position Deviation
±2 mil (0.05mm)
Outline Tolerance
CNC: ± 6mil (0.15mm); Die Punch: ± 4mil (0.1mm); Precision Die: ± 2mil (0.05mm)
Impedance Controlled
Value>50ohm: ±10%; Value≤50ohm: ±5 ohm
Max Aspect Ratio
8:01
Surface Treatment
ENIG, Flash Gold, Hard Gold Finger, Gold Plating(50mil), Gold finger,
　
Selected Gold plating,ENEPIG, ENIPIG; HAL, HASL(LF), OSP, Silver Imm., Tin Imm
Soldermask Color
Green/White/Black/Yellow/Blue/Red

Deliver Time For PCB & PCBA

Layer/Days Sample(Normal) Sample(Fast) Mass Production
Single/Double 2-3days 24hours 5-7days
Four Layer 7-10days 3days 7-10days
Six Layer 7-10days 5days 13-15days
Eight Layer 15-20days 7days 15-20days

Click here to explore our sky-win electronic PCB assembly solutions and discover how we can transform your ideas into reality.

Shenzhen SKY-WIN Technology Co., Ltd was founded in February 2015, focusing on PCBA OEM/ODM one-stop service, solution customization, SMT patch, DIP plug-in, functional testing, assembly and other OEM/ODM services.
