Specifications
Brand Name :
Sky-Win
Model Number :
Automotive PCB Assembly 9675
Certification :
IATF16949/ROHS
Place of Origin :
Shenzhen
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per months
Delivery Time :
5-8 work days of turnkey pcb assembly
Packaging Details :
Cartons
Item :
High Precision Automotive Pcb Assembly
Material precision :
0402+QFN+QFP
Number of material types :
85 kinds
Material quantity :
352 pcs
PCB process :
immersion gold
PCB layers :
2 layers
PCB surface :
Double-sided
Material of Turnkey pcb assembly :
FR-4
Board thickness :
1.6mm
Manufacturing quality system :
IATF16949
PCB quality system :
ROHS
Application :
360 panoramic image (XT4(compatible with XT4,5,6, Weilang, GX low configuration, XL, Envision, Envision), security monitoring/car computer/car host/car audio system
Manufacturing process :
SMT patch, DIP /AOI test, X-RAY irradiation analysis, CNC Panel
Value-added service :
One year after sale
Description

What Benefits Can High Precision Automotive Pcb Assembly Bring To The Car'S 360 Panoramic Image?

High-precision Automotive PCB assembly (Printed Circuit Board Assembly) for automotive 360 panoramic imaging systems can bring several benefits, including the following:

  1. Higher image quality: High-precision Automotive PCB assembly ensures the stability and reliability of electronic components, thus providing higher quality electronic signal transmission. This is critical for automotive 360 panoramic imaging systems, which need to capture and transmit high-resolution images. By using high precision PCB assembly, electronic interference and signal distortion can be reduced, resulting in clearer and more accurate images.
  2. Higher performance and responsiveness: High-precision PCB assembly can provide faster signal transmission and processing capability. In automotive 360 panoramic video systems, this means faster image acquisition and processing, allowing drivers to get panoramic images in a more timely manner, improving driving safety and convenience.
  3. Smaller size and higher integration: High-precision PCB assembly technology enables smaller size and higher integration of electronic components. For automotive 360 panoramic camera systems, this means that the size of cameras and sensors can be reduced, making it easier to mount them in different locations on the vehicle while reducing the impact on the vehicle's appearance.
  4. Higher reliability and stability: The automotive environment requires the highest level of reliability and stability for electronic systems. High-precision Automotive PCB assembly technology can provide better electrical connections and mechanical strength, thus increasing the reliability and stability of the system. This is especially important for the automotive 360 panoramic camera system, which needs to work under various complex road and climate conditions.

In summary, high precision Automotive PCB assembly is very beneficial for automotive 360 panoramic camera systems, providing higher image quality, performance and responsiveness while achieving smaller size and higher integration, as well as higher reliability and stability. These benefits can enhance the driver experience, enhance driving safety, and lay the foundation for the development of smart driving technology.

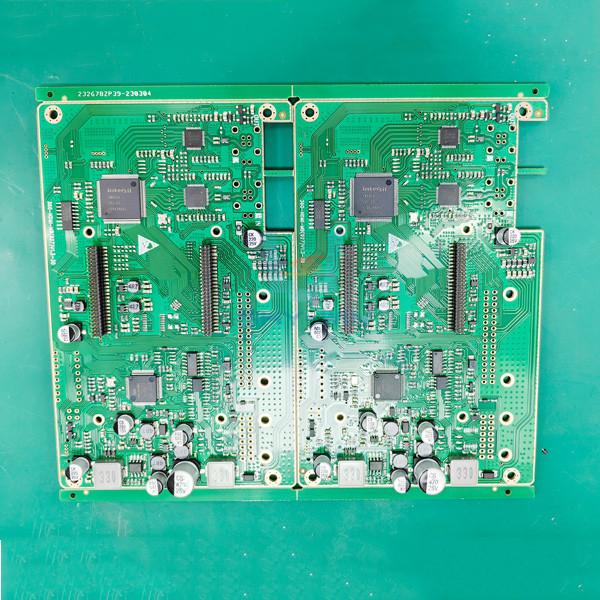

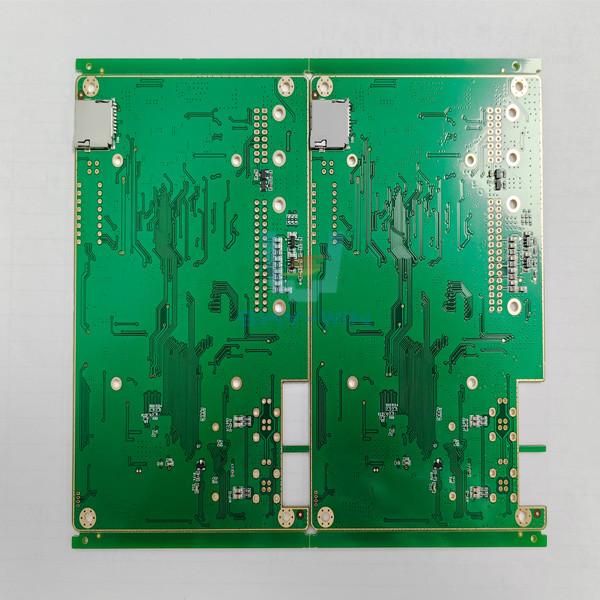

Specification of High Precision Automotive Pcb Assembly

Item High Precision Automotive Pcb Assembly
Service process OEM
Material precision 0402+QFN+QFP
Number of material types 85 kinds
Material quantity 352 pcs
PCB process Immersion gold
PCB layers 2 layers
PCB surface Double-sided
Material of Turnkey pcb assembly FR-4
Board thickness 1.6 mm

Turnkey pcb assembly certification

IATF16949 /ROHS
Application areas 360 Around View Monitor/360 panoramic image (XT4(compatible with XT4,5,6, Weilang, GX low configuration, XL, Envision, Envision), security monitoring/car computer/car host/car audio system
Manufacturing process SMT Patch, DIP/AOI inspection, X-RAY irradiation analysis, CNC Panel

Why Sky-win is an Automotive Excellent PCB Assembly Manufacturer?

  1. Sky-win PCB assembly manufacturer obtain IATF16949 /ROHS certification.
  2. Sky-win PCB assembly manufacturer has high quality manufacturing capability: An excellent Automotive PCB assembly manufacturer should have high quality manufacturing capability to ensure the quality and reliability of PCBs.
  3. Sky-win PCB assembly manufacturer has good production process: There are good production process and standard operation procedures to ensure that every step of operation is strictly executed according to the requirements, thus reducing errors and defects in production.
  4. Sky-win PCB assembly manufacturer has excellent equipment and technology: We have advanced manufacturing equipment and technology to meet the needs of different Automotive PCBs, and we have certain technical strength and R&D capability.
  5. Sky-win PCB assembly manufacturer has excellent customer service: we are able to respond to customers' needs in a timely manner and provide excellent service and support, including pre-sales, in-sales and after-sales services.
  6. Sky-win PCB assembly manufacturer has reasonable price: provide reasonable price and cost-effective products, so that customers can reach a balance point between price and quality.

To sum up, Sky-Win is an excellent PCB assembly manufacturer. Sky-win PCBA Assembly Manufacturing provides industry-leading, panoramic monitored automotive PCB assembly solutions that deliver an unprecedented safety and driving experience for your vehicle.
