10 Layers Quick Turn PCB Fabrication Immersion Gold Surface Multilayer PCB Board Prototype
10 Layers Quick Turn PCB Fabrication Immersion Gold Surface Multilayer PCB Board Prototype
Specifications
Brand Name :
Sky-Win
Model Number :
SMT-PCBA-E11
Certification :
IATF16949/ROHS
Place of Origin :
Shenzhen
MOQ :
100 piece
Price :
$0.1- $4.9
Payment Terms :
T/T, Western Union
Supply Ability :
50000 pcs per months
Delivery Time :
5-8 work days of turnkey pcb assembly
Packaging Details :
Cartons
Item :
Quick Turn PCB Fabrication
Manufacturing quality system :
IATF16949
Solder mask color :
Green,white,black,red,blue…
Silkscreen Color :
White,black,yellow,blue…
Surface finishing :
Immersion Gold
PCB Solder Type :
Water Soluble Solder Paste, RoHS lead free
Base material :
FR-4
Number of layers :
10 Layers
Type :
Customizable,Electronic Board
PCBA Testing :
X-ray,AOI Test,Functional test
PCBA package :
QFN,BGA,SSOP,PLCC,LGA
Description

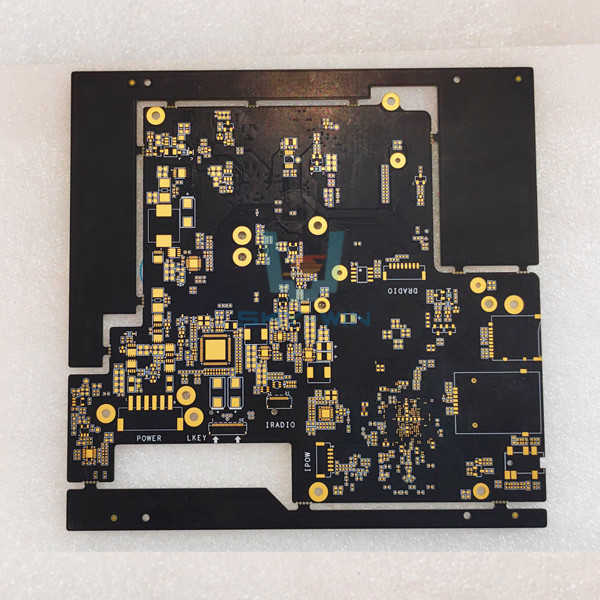

Immersion Gold Surface Multilayer PCB Board Prototype 10 Layers Quick Turn PCB Fabrication

Quick Turn Printed Circuit Board Fabrication Capabilities

Article Description Capability
Sercive PCB and SMT assembly with one-stop service
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
Material Laminate materials FR4, high TG FR4, high frequency, alum, FPC
Board cutting Number of layers 1-32
Min.thickness for inner layers 0.003”(0.07mm)
(Cu thickness are excluded)
Board thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist 7/1000
Copper weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
E-test Function Test 100% Functional test
PCBA Testing X-ray,AOI Test,Functional test
Pcb assembly one-stop service electronic manufacxturer service
Component sourcing Yes
Certificate IATF16949,ROHS,UL
Delivery time: PCB 3-12days
PCBA 8-20days
Tolerance of pcb ±5%
Max size of finish board 450*450mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB outline Square,circle,irregular(with jigs)
package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen

Advantages of Quick Turn PCB Fabrication


The biggest benefit of fast turnaround is that it helps to test design ideas or components more quickly. It provides assistance in manufacturing design to reduce time to market and reduce costs. It also determines product quality and value before investing in mass production. In addition, the use of standard Sops to reduce manufacturing time can also optimize costs, which is an important source of competitive advantage.

Why Sky-win is an Excellent PCB Assembly Manufacturer?

1. Sky-win has high quality manufacturing capability: An excellent PCB assembly manufacturer should have high quality manufacturing capability to ensure the quality and reliability of PCBs.

2. Sky-win has good production process: There are good production process and standard operation procedures to ensure that every step of operation is strictly executed according to the requirements, thus reducing errors and defects in production.

3. Sky-win has excellent equipment and technology: We have advanced manufacturing equipment and technology to meet the needs of different PCBs, and we have certain technical strength and R&D capability.

4. Sky-win has excellent customer service: we are able to respond to customers' needs in a timely manner and provide excellent service and support, including pre-sales, in-sales and after-sales services.

5.Sky-win has reasonable price: provide reasonable price and cost-effective products, so that customers can reach a balance point between price and quality.

6. Sky-win keeps improving: constantly reviewing and improving itself and actively introducing new technologies, new techniques and new equipments to keep the competitiveness in the market.

To sum up, Sky-Win is an excellent PCB assembly manufacturer.
