Black Printing 32 Inch 10ms Capacitive Multi Touch Screen
Black Printing 32 Inch 10ms Capacitive Multi Touch Screen
Black Printing 32 Inch 10ms Capacitive Multi Touch Screen
Black Printing 32 Inch 10ms Capacitive Multi Touch Screen
Specifications
Brand Name :
Touch China
Model Number :
ZCC-4824
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
13K per month
Delivery Time :
20 days
Packaging Details :
Standard export package
Type :
Projected capacitve touch screen
Size :
32 inch
Touch points :
10 points
Working temperature :
-20~70
Structure :
cover glass + sensor glass
Surface Hardness :
≧7H
IC solution :
ILITEK / EETI
Application :
PCAP Touch Panel
Interface :
USB / I2C / RS232
Panel color :
black printing
Description

32 Inch Multi Capacitive Touch Screen With USB Touch Controller With AG Glass ​

Basic specification:

Size 32 inch
Total thickness 4.3±0.3mm
Outline of Cover Lens 757.12*450.6±0.5mm
Outline of ITO Sensor 732*427.41±0.5mm
Viewing Area 699.4*393.84±0.3mm
Active Area 700.92*395.58±0.3mm
Interface USB
Input voltage 5V
Response time 10ms
Report rate 100 HZ
Input method Hand writing or capacitive pen
Transmittance ﹥85%

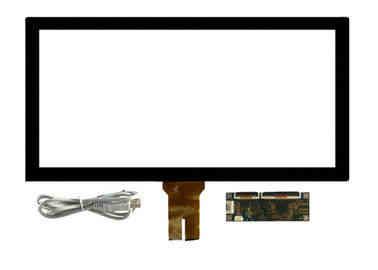

Package list 32 inch Touch panel,controller board and USB cable
AG Haze Degree 6±3

Reliable Testing:

Working temperature and
humidity		 -20~+70℃, 20~85%RH
Storage temperature and
humidity		 -30~+80℃, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 70℃, 120H
Cold resistance -20℃, 120H
Thermal shock -20 ℃ (0 . 5hour)-70 ℃ (0 . 5hour)
by 50 cycles
Humidity resistance The requirement shall be satisfied after being exposed at 85% RH for
120 hours and normal temperature and humidity for 24 hours.
Heat resistance The requirement shall be satisfied after being exposed at 80℃ for 120
hours and at normal temperature and humidity for 24 hours.
Cold resistance The requirement shall be satisfied after being exposed a t -30℃ for 120
hours and at normal temperature and humidity for 24 hours.
Thermal shock The requirement shall be satisfied after being exposed at -30℃ (0.5
hour)—80℃(0.5hour)by 50 cycles and at normal temperature for 24
hours

Competitive advantages:

1.21 years experience in designing and manufacturing touch panel, G+G / G+F+F are available.


2. A strong research team for both software and hardware and provide good pre-sales and after-sales service.


3. Except some standard products, customized touch panel from 3.5” to 86” now, the bigger size is been developing and researching.


4. Touch-China has created a complete ecological chain related to intelligent touch display products, from AG glass material - cover glass - capacitive touch panel- optical bonding with LCD display.

5. Own industrial parks, good guarantee for product quality and lead time.

6. Touch panels for automobile,industry are in a leading position in China.

Delivery time:

Sample: 10-15 days

Mass production:

1.Small sizes(smaller than 12.1 inch): 18 days.

2.Large sizes(larger than 12.1 inch):20-25 days.

Product drawing:

Black Printing 32 Inch 10ms Capacitive Multi Touch Screen

Black Printing 32 Inch 10ms Capacitive Multi Touch Screen

Packaging way:

Put 5pcs inside a box, each piece is separated by a piece of expandable polyethylene. Make sure FPC is not twisted and protective film remains
smooth.


Put two boxes into a large carton, fill the empty space with expandable polyethylene.

Black Printing 32 Inch 10ms Capacitive Multi Touch Screen

Black Printing 32 Inch 10ms Capacitive Multi Touch ScreenBlack Printing 32 Inch 10ms Capacitive Multi Touch Screen​
