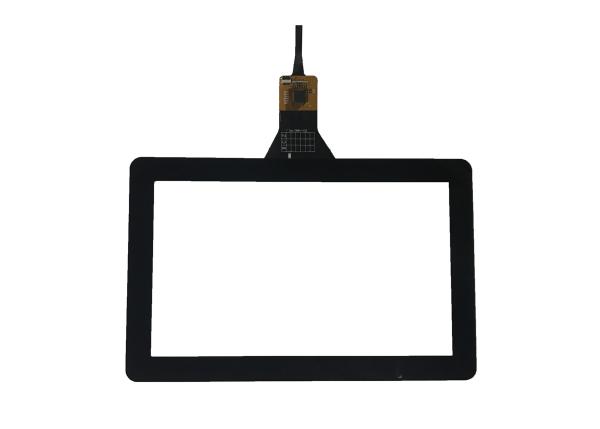

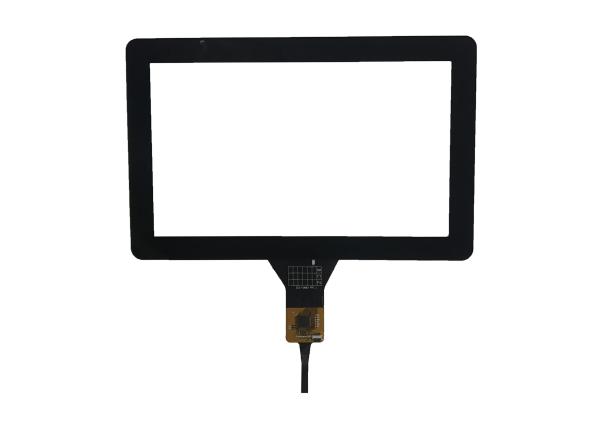

Goodix Touch Panel 7 Inch Touch Screen Strong Compatibility for Handheld Device
Goodix Touch Panel 7 Inch Touch Screen Strong Compatibility for Handheld Device
Goodix Touch Panel 7 Inch Touch Screen Strong Compatibility for Handheld Device
Goodix Touch Panel 7 Inch Touch Screen Strong Compatibility for Handheld Device
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-2893
Certification :
RoHS, CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
400K per month
Packaging Details :
Standard export package
Delivery Time :
10-20work days
Size :
7inch
Touch points :
5points
Interface :
IIC
TP Structure :
P+G (PET film+OCA+ITO sensor)
Surface Hardness: :
≧3H
IC controller :
Goodix
Transparent :
≥83%
OS :
Windows 7/8/10,Android,Linux,XP,WCE
Certificates :
CE, FCC, RoHS
Color :
Black bezel
Description

7 Inch Goodix Touch Panel Touch Screen Strong Compatibility for Handheld Device

Specification:

1 Type Projected capacitive touch panel
2 Size 7 inch
3 Total thickness 1.475±0.2mm
4 Outline of cover lens 164.2*99.2±0.1mm
5 Outline of ITO sensor 164.8*99.8±0.2mm
6 Viewing area 155.5*89±0.2mm
7 Active area 156.5*90±0.3mm
8 Interface I2C
9 Touch point 5 points
10 Transmittance ＞83%
11 Hardness ＞3H
12 Chipset Goodix 911
13 Working environment -20-70℃, ≤85%RH
14 Storage environment -30-80℃, ≤85%RH

Prodduct process:

  • The working principle of the capacitive screen

  • Small amount of voltage is applied to the electrodes on the four corners . A human body is an electric conductor, so when you touch the screen with a finger, a slight amount of current is drawn, creating a voltage drop.

  • The current respectively drifts to the electrodes on the four corners. Theoretically, the amount of current that

  • drifts through the four electrodes should be proportional to the distance from the touch point to the four corners.

  • The controller precisely calculates the proportion of the current passed through the four electrodes and figures

  • Out the X/Y coordinate of a touch point.

FAQ:

Q. Are you a manufacturer or a trading company?
A: We are a manufacturer.

Q. What is the delivery date for a sample?
A: Usually about 1-3 days for inventory. And bulk order's delivery time is generally 10 to 15 days.

Q. What's payment terms can you accpet?

A: T/T in advance, or 30% as deposite,70% as balance before delivery.

.

Q. How do you control the quality ?
A: We control the product quality by IQC,three tests on production lines,and 100% aging testing before packaging.

Q. What's MOQ?
A: MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.

Q. Can you give us a favorable discount ?
A: Of course, a favorable discount will be offered if the quantity is sizable.

Application:

-- Kiosk,Karaoke -- All in one --Digital Signage -- Tablet pc

-- Advertising player -- Education Whiteboard -- Medical device

-- Industrial PC panel -- Multi-touch table -- POS

-- Restaurant menu -- ATM

Some of our great partners:
cooperation with many large and internationally well-known enterprises
for example Hangsheng, ADAYO,
HIKVISION, Great wall information, BOE, iFLYTEK, CVTE, Advantech, KF, SMTC etc.
