13.3 Inch COF ILItek 2511 13.3 Projected Capacitive Touch Panel Scratch Resistant High Durability Financial System
13.3 Inch COF ILItek 2511 13.3 Projected Capacitive Touch Panel Scratch Resistant High Durability Financial System
13.3 Inch COF ILItek 2511 13.3 Projected Capacitive Touch Panel Scratch Resistant High Durability Financial System
13.3 Inch COF ILItek 2511 13.3 Projected Capacitive Touch Panel Scratch Resistant High Durability Financial System
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-7074
Certification :
CE, RoHS, REACH
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20K pcs / month
Delivery Time :
10-15days
Packaging Details :
Standard export package
size :
13.3inch
Interface :
USB
Touch Points :
10points
TP Structure :
Cover glass+UV glue+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
5V
TP type :
COF
Transmittance :
≥85%
IC controller :
ILItek 2511
Description
COF ILItek 2511 13.3" Projected Capacitive Touch Panel
Parameters of the touch panel
Size: 13.3inch
Total Thickness: 2.4±0.2mm
Outline of Cover Lens: 322*197.9±0.15mm
Outline of ITO Sensor: 302*177.9±0.2mm
Viewing Area: 293.5*165±0.2mm
Active Area: 294.5*166±0.3mm

TP Structure:

 G+G
Controller: ILItek 2511
Cover glass thickness: 1.1mm,2mm,3mm,4mm,5mm,6mm (optional)
Cover glass treatments: AG, AR, AF (Optional)
CTP interface: USB
Operating system: Android, Linux, XP, Win7, Win8, Win10
Working temperature and humidity -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, RoHS, REACH
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Ball drop test standard 227g, 100cm for 3 times
Warranty: 1 Year

Advantages of Touch-China

1. We have 23-year experience in designing and manufacturing touch panels.

2. We have a strong research team for both software and hardware and provide before and after-sale service.

3. We cooperate with excellent customer and suppliers.

4. Our capacitive touch panels of large sizes are certified for Mocrosoft Windows 8 certificate.

5. We have long-term cooperation with excellent IC suppliers all over the world.

6. We have good guarantee for product quality and lead time.

7. Our touch panels of large sizes and touch panels for automobile are in a leading position in touch panel industry.

Reliability test conditions

High temperature: 70℃, 120H

Low temperature: -20℃, 120H

Thermal shock: -20℃(0.5 hour)- 70℃(0.5 hour)by 50 cycles

Humidity resistance: 85%RH for 120 hours

Heat resistance: 80℃ for 120 hours

Cold resistance: -30℃ for 120 hours

FAQ

1. What’s your lead time?

Re: The lead time for both samples and mass production is 15 days.

2. Are you a trading company or manufacturer?

Re: We are a manufacturer.

3. What kind of products can you provide?

Re: We can provide capacitive touch panel from 3.5” to 86” and optical bonding products.

4. How to deal with the defective touch panel after they are shipped.

Re: First, we will make clear what the issue is. Usually the issue can be solved by either remote testing or sending back representative defective touch panels.

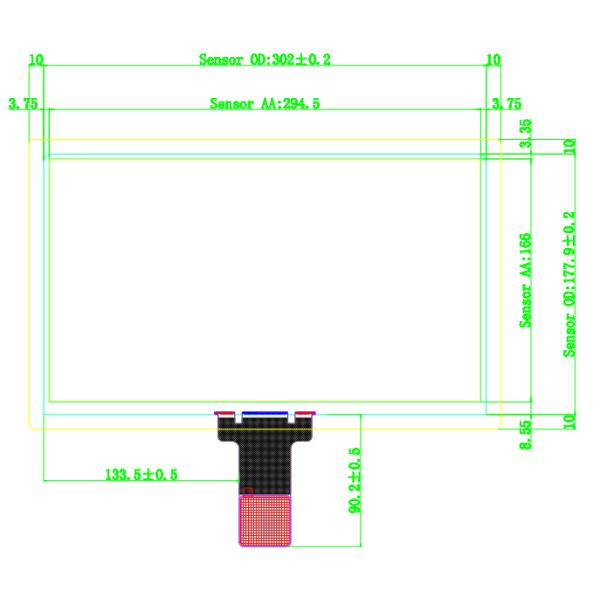

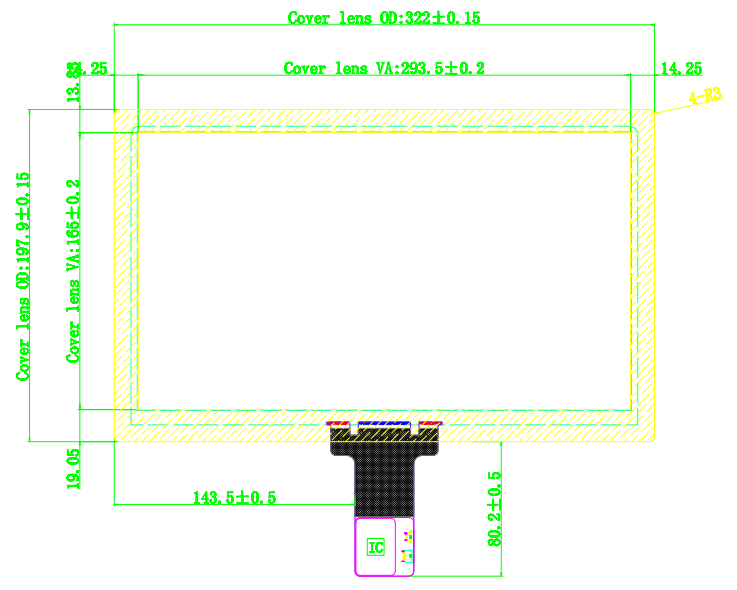

Engineering drawing

13.3 Inch COF ILItek 2511 13.3

13.3 Inch COF ILItek 2511 13.3

Package

There are total 10pcs in each package.

13.3 Inch COF ILItek 2511 13.313.3 Inch COF ILItek 2511 13.3

Shipments

DHL, UPS, FedEx, TNT
