17 inch Industrial grade Water-proof Capacitive Touch screen with AG Cover Glass

Specification:

Projected Capacitive Touch panel:

• Projected capacitive touch panels are built with two parallel layers of ITO but, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
• There is no air gap between layers like in a resistive touch panel.
• The patterns on the two parallel ITO layers form a grid of capacitors.
• The electric fields of these capacitors are projected through the top layer of glass.
• When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
• This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
• An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Development process:

• Receive customer's technical files, including PCAP drawing, LCD specification.
• Recommend standard products or customize products based on customer's requirements.
• Offer engineering drawing for confirmation and fill in project kick-off form.
• Make samples according to the confirmed drawing.
• Debug the samples based on the information on kick-off form, keep the FW.
• Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
• Pilot production.
• Mass production

Advantages:

• Physically tempered cover glass, support a ball of 500g falling on the center from 1.3m height.
• Enhanced durability and reliability
• Water proof, anti-explosion.
• Professional facilities and excellent design
• Optimized production capacity
• Optimized production yield rate.

Application:

Factory Automation
Industrial Control
Medical Equipment
Retail Kiosks
Auto Industry
POS terminals
Financial - ATM & Bill Pay Kiosks

Lead time:

• For goods in stock, 2-3 days after PO.
• For customized samples, 15 days after the confirmation of engineering drawing.
• For mass production, 18-20 days after PO.

Shipment service:

FedEx, DHL, UPS, TNT, Aramex etc.

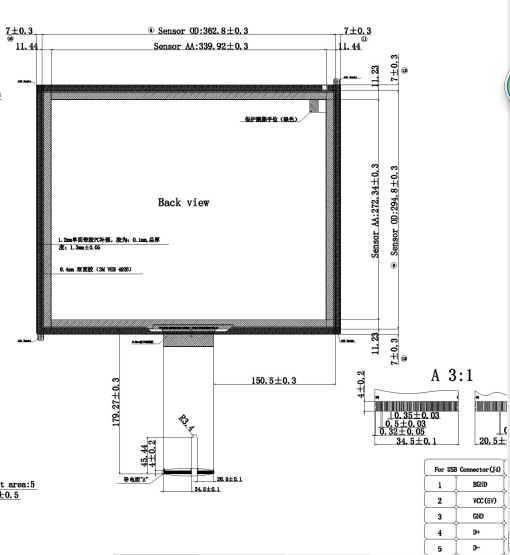

Engineering drawing:






Excellent waterproof:
