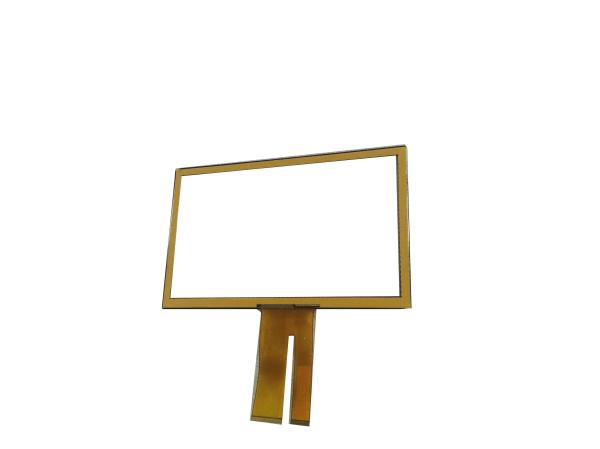

12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
12.5 Waterproof Touch panel with EETI controller for Industrial Touch Monitor
Specifications
Brand Name :
Touch-China
Model Number :
ZCC-4528V1
Certification :
CE, Rohs, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20K pcs / month
Delivery Time :
10-15days
Packaging Details :
Standard export package
size :
12.5inch
Interface :
USB
Touch Points :
10points
TP Structure :
Cover glass+UV glue+ITO sensor glass
Surface hardness :
More than 7H
Input method :
Finger or capacitive pen
Working voltage :
USB(5V)
TP type :
COB
Transmittance :
≥85%
IC controller :
EETI
Description

12.5" Waterproof Touch panel with EETI controller for Industrial Touch Monitor

Product Specification:

Size: 12.5inch
Total Thickness: 1.85±0.2mm
Outline of Cover Lens: 301.48*182.52±0.1mm
Outline of ITO Sensor: 297.48*178.52±0.3mm
Viewing Area: 277.48*156.52±0.2mm
Active Area: 278.48*157.52±0.3mm

TP Structure:

 G+G
Controller: ILITEK, WEIDA, EETI, Silicon Works etc.(Optional)
Cover glass thickness: 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional)
Cover glass treatments: AG, AR, AF, AE (Optional)
CTP interface: USB
Operating system: Win7, Win8, Win10, WCE, Android, Linux, XP
Working temperature and humidity: -20°C~70°C,20~85% RH, non-condensing
Storage environment and humidity : -30°C~80°C, 20~85% RH, non-condensing
Transparency ≥85%
Response time: <10ms
ESD Air discharge: 8KV
ESD Contact discharge: 4KV
Pen hitting life: ≥10,000,000/point
Pen sliding Durability: ≥500,000 times
Finger Touch life: ≥35,000,000 times
Certifications: CE, FCC, Rohs
Aspect ratio: 16:9
Report rate: 100HZ
Input method: Finger or capacitive pen
Warranty: 1 Year

Capacitive Touch Screen Features:

  • Response speed fast, smooth touch
  • Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms
  • Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
  • Precision-touch capacitive screen is using the body's current-sensing
  • Accuracy up to 99% proficient in writing, no break no drift
  • Completely dead 10-point touch really, any point can withstand more than 50 million times touch
  • No ghost after the first calibration, drift-free
  • Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable
  • Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems

Delivery Time:

  • Samples in stock: 1~3 working days
  • Customized project: 10~15days for samples
  • Mass production: 10~18days

Advantages:

  • Highly Efficient Production Line.
  • Optimized Yield Rate.
  • Highest Resolution, Sensitive & Fast Response.
  • Optimized Production Capacity
  • High Temperature Process Capability.
  • Enhanced Durability and Reliability.
  • Professional Facilities & Excellent Design.
  • OEM Acceptable.

Application:

  • Point-of-information kiosks
  • Vending and ticket sales
  • Electronic catalogs
  • Gaming, lottery, and amusement
  • Public pay phones
  • Multimedia marketing
  • Banking/financial transactions
  • Industrial control rooms
  • Computer-based training


Technical Drawings:

12.5

12.5
