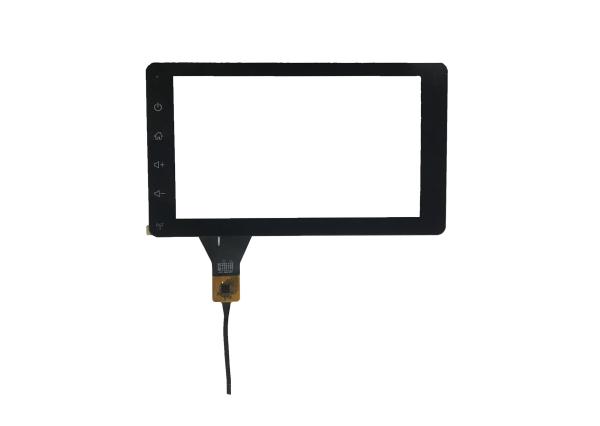

P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification
P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification
P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification
P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification
Specifications
Brand Name :
Touch China
Model Number :
ZCC-5021
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
350K per month
Delivery Time :
18 working days
Packaging Details :
Standard export package
Type :
Projected capacitve touch screen
Size :
7 inch
Touch points :
5
Aspect Ratio :
16:9
Structure :
P+G
Surface Hardness :
≧3H
IC solution :
Goodix
Working Voltage :
I2C(2.8V-3.3V)
Description

7 inch I2C Capacitive Multi Touch Panel

Basic specification:

Size 7 inch
Total thickness 1.475±0.15mm
Outline of Cover Lens 164.3*99.4±0.1mm
Outline of ITO Sensor 164.9*100±0.2mm
Viewing Area 155.08*88.69±0.2mm
Active Area 156.28*88.69±0.3mm
Interface I2C
Input voltage 2.8-3.3V
Working environment -20℃-70℃
Report rate -30℃-80℃
Input method Hand writing or capacitive pen
Transmittance ≥85%

Advantages of Our Factory:

  • Highly Efficient Production Line.
  • High Yield Rate.
  • High Resolution, Sensitive & Fast Response.
  • Optimized Production Capacity
  • High Temperature Process Capability.
  • Enhanced Durability and Reliability.
  • Professional Facilities & Excellent Design.
  • OEM Acceptable.

Delivery/ Lead time:

  • Samples in stock: 1~3 working days
  • Customized project: 10~15 days for samples
  • Mass production: 10~18 days

What is Projected Capacitive Touch panel:

  • Projected capacitive touch panels are built with two parallel layers of ITO, but unlike the old and cheap resistive touch panels, the ITO layers in a projected capacitive touch panel are sealed between two sheets of glass by an optically clear adhesive.
  • There is no air gap between layers like in a resistive touch panel.
  • The patterns on the two parallel ITO layers form a grid of capacitors.
  • The electric fields of these capacitors are projected through the top layer of glass.
  • When the user places a finger near the top surface of the touch panel, it couples with the electric fields.
  • This coupling changes the capacitance of several of the capacitors in the vicinity of the finger.
  • An algorithm converts these changes in capacitance into a location along the X and Y axes of the panel.

Technical drawing:

P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification

P+G 7 inch Touch Panel with IIC connector for Handheld Device ROHS Certification

Applications:

Kiosk,Karaoke,All in one,Digital Signage,Tablet pc,Advertising player,
Education Whiteboard,Medical device,Industrial pc panel,Multi-touch table,

POS,Restaurant menu,ATM etc.
