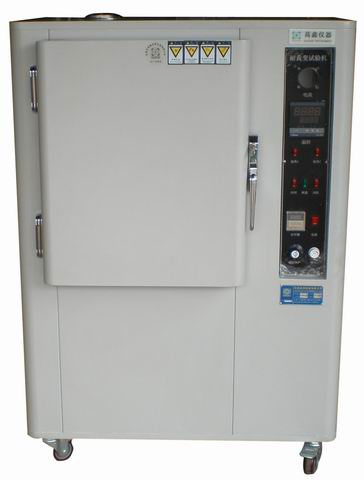

Anti-Yellowing Testing Chamber For White or light Color shoe materials Leather Fabric Rubber Footwear
Anti-Yellowing Testing Chamber For White or light Color shoe materials Leather Fabric Rubber Footwear
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5031-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-3000 Per set
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 working days
Packaging Details :
international standard strong package
Model :
GX-5031-A
Function :
anti-yellowing test
Type :
Sunlight bulb type
Light source :
300 W OSRAM bulbs
Heating method :
hot air circulation
Power supply :
AC220V, 5 A
Description

Anti-Yellowing Testing Chamber For White or light Color shoe materials Leather Fabric Rubber Footwear


1. Model: GX-5031-A (Lamp bulb type)

2. Test standard: ASTM-D1148, HG/T3689

3. Test principles: Using a sunlight lamp and a heating and temperature control device to simulate a natural environment, observe the change in the color of the sample surface within a specified time to determine the degree of discoloration of the sample, so as to determine the ability of the material to resist yellowing under solar radiation. The light source in the test chamber is a sunlight bulb, and the light emitted is similar to sunlight

4. Application scope: White or light color material, leather, PU, fabric for shoes materials. Vulcanized rubber

5. Specifications:

(1) The lamp bulb type test chamber

Light source: 300 w OSRAM bulbs

Heating method: hot air circulation

Wave length: 280nm-400 nm

Insulation: glass fiber

Sample plate: 300 mm diameter, rotating (3±1)r/min

Light density: Adjustable optical

Ultraviolet intensity: (25±0.4)W/ m2

Temperature accuracy: ±2℃

Sample size: (62 + 2) mm x (12 + 2) mm

Timer: LED, 0-9999 hr

Distance between the light bulb and the sample: (250 + 2) mm

Horsepower: 1/4 HP

Temperature control range: room temperature+10 ° C to 120 ° C

Inside box: 500 x500x600 mm

Test temperature: (50 + 2) ° C

Size: 1000 x650x1170 mm

Power supply: AC220V, 5 A

Weight: 135 kg



(2) The OSRAM Bulb Technical Parameters

Manufacturer: OSRAM

Name: UV ultraviolet (UV) light bulbs

Origin: Germany

Lamp life: 1000 hours

Cure time: 15 ~ 30 seconds

Lamp holder types: E27 screw

Brand: OSRAM

Wave length: 365 ~ 400 nm

Rated voltage: 220 v

Rated power: 300 w

Size: 127 * 185 * 127 mm



6. Standard Configuration of The lamp bulb type test chamber
The test machine
Imported 300W bulb
Two shelves
Rotating shelf
Operating instruction;
Product warranty card
Certificate
A roll of shading paper


Anti-Yellowing Testing Chamber For White or light Color shoe materials Leather Fabric Rubber Footwear
