Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20
Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20
Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20
Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5034
Certification :
BS-5131，SATRA TM20
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10-15 working days
Packaging Details :
International standard wooden package
Product Name :
Woman's shoes heel impact tester
Product Model :
GX-5034
Test Standard :
BS-5131，SATRA TM20
Capacity :
0~18.3J(13.5ft-lb),minimum reading0.68J（0.5ft-lb)
Swing arm :
Diameter of 25mm
Hammer :
φ108mm,49.2mm(D)
Impact edge :
25×6×35mm(W×D×L),3mm(R)
Specimen adjustable range :
0~25mm(H),angle of 0~45°
Volume :
63×40×105cm
Weight :
101kg
Description

Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20

1.Product Name:Woman's shoes heel impact tester

2.Product Model:GX-5034

3.Description:The testing machine is intended to determine the resistance of the heels of women’s shoes to the occasional heavy blows that occur in wear. The tester is applicable to all types of high heels from women’s shoes with heights greater than 38mm, but is particularly useful for moulded plastic heels incorporating a steel dowel for reinforcement.

4. Principle: A heel is secured around its seat and blows of increasing magnitude are applied near the tip in a forward direction until failure occurs. The energy of the blow required to cause failure and the type of failure are recorded.

5.Test Standard:BS-5131,SATRA TM20

6.Technical Parameter:

Capacity

0~18.3J(13.5ft-lb),minimum reading0.68J(0.5ft-lb)

Swing arm

Diameter of 25mm

Pendulum energy when swing arm is horizontal

17.3N-m(12.7ft-lb)

Hammer

φ108mm,49.2mm(D)

The distance between the center of Hammer to the canter of axle

432mm

Impact edge

25×6×35mm(W×D×L),3mm(R)

Specimen adjustable range

0~25mm(H),angle of 0~45°

Volume

63×40×105cm

Weight

101kg

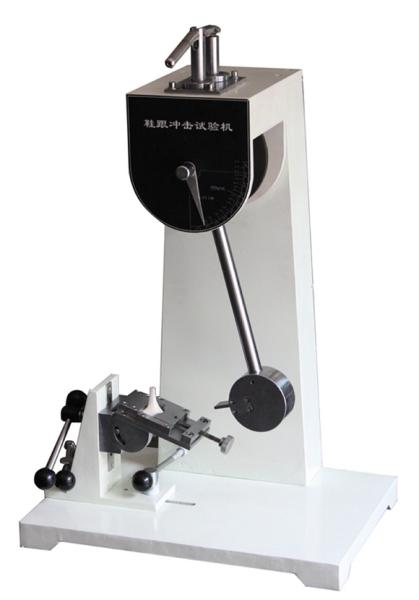

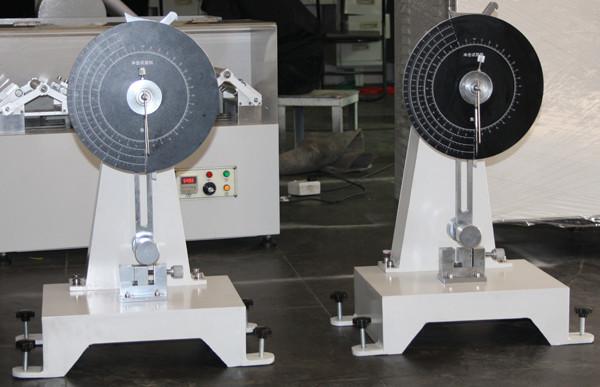

7. Picture

Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20Standard Footwear Testing Equipment / Woman's Shoes Heel Impact Tester SATRA TM20
