1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
Specifications
Brand Name :
Gaoxin
Model Number :
GX-5099
Certification :
ISO 2008
Place of Origin :
China
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen,T/T,
Supply Ability :
50 sets per month
Delivery Time :
40 working days
Packaging Details :
Non-fumigation wooden box
Working table :
200*200mm
Max load :
10kg
Peak acceleration :
20—1500G
Pulse duration :
0.5-7ms
Dimension :
600×550×1950mm（L×W×H）
Electrical requirements :
AC220V±10％ 50Hz，1KVA & 0.5—0.7MPa
Description

1500G High Acceleration Shock Impact Test Machine for Laboratory Testing

1. Product Name: Battery Acceleration Shock Tester

2. Product model: GX-5099

3. Test standard:

UN38.3,UL1642,UL2054,QC/T 743-2006 , QC/T 744-2006,GB 8897.4-2002,IEC60086-4 ,SN/T1414, SN/T1413 , YD1628, GJB2374, QB/T2052, IEC62133-2012, SAE-J2464,GB31241

4.Shock testing machine Features:

  • User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
  • Half sine, square waveform shock pulse programmers.
  • High rigidity shock tables.
  • A full range of safety features.
  • Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock.
  • Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation.

5.Specifications:

Main parameters
Working table 200*200mm
Max load 10kg
Peak acceleration 20—1500G
Pulse duration 0.5-7ms
Dimension(L×W×H) 600×550×1950mm
Net weight 650 kg
Electrical requirements AC220V±10％ 50Hz,1KVA & 0.5—0.7MPa
Measurement system
Input channel 2 CH
Sampling frequency 192kHz
Input form Voltage, charge
Coupling method AC, DC, ICP
Pulse duration 50-1ms
Voltage range -10V~+10V
Shock waveform Half sine
The operating system Microsoft Win XP/Win7/Win 8
Interface USB 2.0
Sensor of acceleration
Brand B&W
Model 22100
Output mode Charge type
Sensitivity 3.93 pc/g
Frequency range 0.5-12Khz
Acceleration range ±2500G
Working environment -40~+160℃
Other description
Supply power AC380V±10％
Compressed air 0.5-0.8Mpa
Temperature RT~40℃
Humidity 25℃＜85RH％
Reliability

The average failure rate≥5000 hours

Half-sine waveform generator for continuous use of not less than 8,000 times.

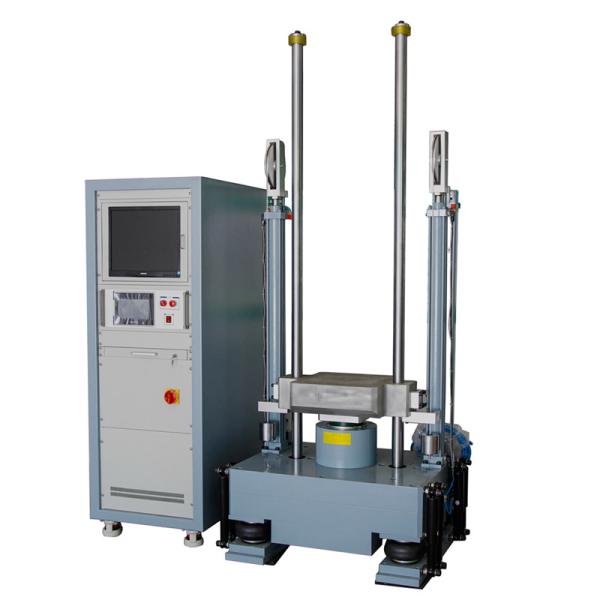

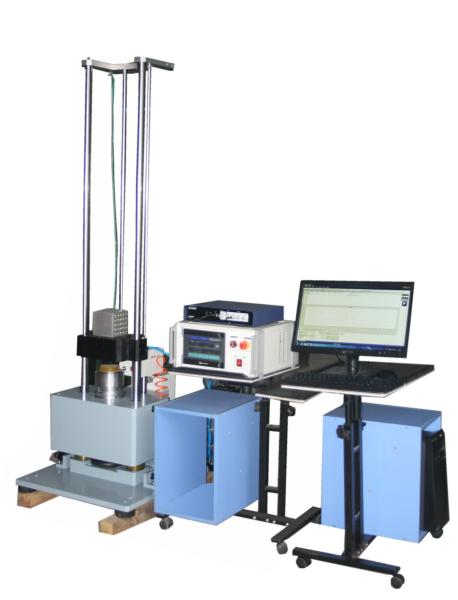

6. Product Picture

1500G High Acceleration Shock Impact Test Machine for Laboratory Testing

7.Company introduction:

Dongguan Gaoxin Testing Equipment Co., Ltd is a high tech company specialized in producing kinds of testing equipment which was established in 2007, located in manufacturing centre of China-Dongguan City where is close to Guangzhou city and Hong Kong.

Our advantages:

(1) Speciality in testing equipment

(2) Various products to choose from

(3) Accept customization

(4) Excellent after-sale service

1500G High Acceleration Shock Impact Test Machine for Laboratory Testing1500G High Acceleration Shock Impact Test Machine for Laboratory Testing
