Fatigue Footwear Testing Equipment With Touch Screen / Button Panel For Footwear Industry
Fatigue Footwear Testing Equipment With Touch Screen / Button Panel For Footwear Industry
Fatigue Footwear Testing Equipment With Touch Screen / Button Panel For Footwear Industry
Fatigue Footwear Testing Equipment With Touch Screen / Button Panel For Footwear Industry
Specifications
Brand Name :
GAOXIN
Model Number :
GX-5042
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10-15 working days
Packaging Details :
International standard wooden package
Dimension :
450x540x550mm
Weight :
51kgs
Description

Fatigue Tester with Touch Screen / Button Panel for Footwear Industry

1. Product Name:Fatigue Tester

2. Product Model:GX-2042

3. Description:This machine is designed for opening and closing the hook and loop fasteners, A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength. This machine has a memory function. You can adjust the force applied to the specimen by adjusting the counterweight and load.

4. Test standard:DIN-3415,SATRA TM123,ISO 22776,GB/T 3903.20,GB/T 3903.21,GB/T 23315-2009

5. Technical Parameter:

Specimen dimension Length 540±10mm width 20-50mm
Diameter of upper circular drum 162.5±0.5mm
Diameter of lower circular drum 160±0.5mm
Width of circular drum 70mm
Slot length 55±2mm width 4mm
Testing Speed 60±5r/min
Reversed time 30±5 s
Load 1±0.1N/mm
Testing times 5000r (adjustable)
Counter LED display 0-9999 random setting
Dimension 450x540x550mm
Weight 51kgs
Power 220V/110V 50Hz/60Hz Single Phrase

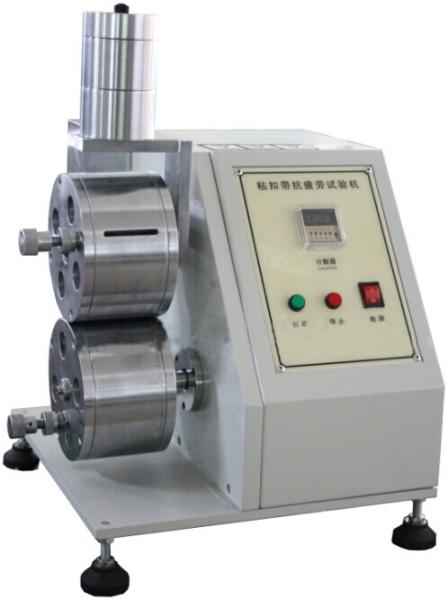

6. Picture

Fatigue Footwear Testing Equipment With Touch Screen / Button Panel For Footwear Industry
