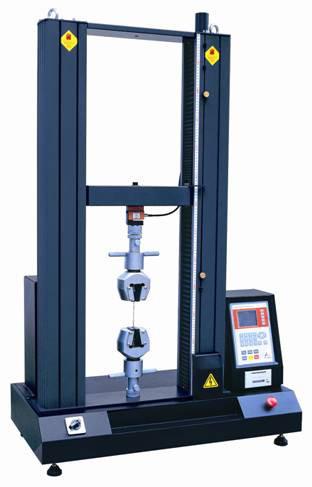

High Precision Universal Testing Machine Tensile Test Servo Control 5000 Kg
High Precision Universal Testing Machine Tensile Test Servo Control 5000 Kg
High Precision Universal Testing Machine Tensile Test Servo Control 5000 Kg
High Precision Universal Testing Machine Tensile Test Servo Control 5000 Kg
Specifications
Brand Name :
GAOIXN
Model Number :
GX-8001-M
Certification :
ISO 9001:2008; QS-9000; CE
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1set
Price :
negotiation
Payment Terms :
FOB Shenzhen, L/C, T/T, Western Union,
Supply Ability :
50 sets per month
Delivery Time :
15 work days
Packaging Details :
Non-fumigation wooden box
Power :
Servo
Type :
Universal Tensile Testing Machine
Capacity :
500, 1000, 2000, 5000 kg
Accuracy :
±0.5%
Test Speed :
25-500mm/min
Description

High Precision Servo Control Tensile Strength Testing Machine


Specifications:

Model

GX-8001-M

Maximum load

500, 1000, 2000, 5000 kg (optional)

Accurate

1 grade

Measuring accuracy

The value ±1% / the value±0.5%

Tester resolution

Max load 1/100000, constant the resolution

Effective testing width

400mm (or can be widened as customers requirement )

Effective tensile space

650,800,1000mm (or can be increased the height according to customers requirement)

Testing speed

From 0.5 to 1000mm/min

Unit

kgf, gf, lbf, N, kN, Mpa, pa(optional)

Accruacy of displacement measurement

Tolerance: ±0.5%

Accuracy of measured deformation

Tolerance:±0.5% (according to requirement of customer to choose the larger or small deformation)

Safety

Electronic-limit protection

Testing plat form moving device

Fast /slow( two speeds to control) ,can jog

Return Back

Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation

Overload protection

Overload 10%, automatic protection

Fixture

One set of tensile clamp

Volume

800*1000*2500mm (L*W*H)

Motor

servo motor and drive

Power

220V,50HZ or as the requirement

Wattage

0.66kW (different demand of force with different motor)

Weight

300 Kg(approx)

High Precision Universal Testing Machine Tensile Test Servo Control 5000 Kg

1.How can we guarantee quality?
Our Products have passed the certification of China National Standard System. The products have been tested according toGB/UN/UL/IEC/SAE/ISO/TAPPI/AATCC/ASTM/EN/DIN/JIS. The company has a complete organizatinal structure and management system,through the ISO9001 quality management system, ISO14001 environmental management system certification.

2.What can you buy from us?
Our products include battery testing equipment, leather testing equipment, footwear testing equipment, tensile testing machine,
environmental test chamber, paper testing machine etc.

3.What details are required for a quotation?
What is the test standard
What product or material testing from this machine
What is the Test object size
What is you want the machine appropriate size

4.Can I make changes before I ship?
No,it can not change if machine finished

5.When will my order ship?
Need 10-45 workdays base on which type the the machine

6.How can I track my order?
We will send the schedule by each stage
