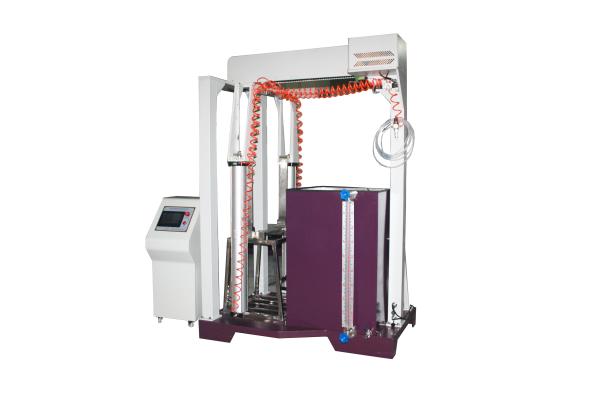

PLC Remote Control Sealed Water Immersion Testing Equipment For Electric Vehicle Battery
PLC Remote Control Sealed Water Immersion Testing Equipment For Electric Vehicle Battery
Specifications
Brand Name :
GAOXIN
Model Number :
GX-7006-CT
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
40 working days
Packaging Details :
Non-fumigation wooden box
Material :
Stainless steel
Application :
Battery, coin cell, pack
Control Mode :
PLC remote control, computer remote control
Operation mode :
program mode, setting mode
Language :
English
Display :
touch display
Supply Power :
AC220V
Inner box size :
W600 * D600 * H1000mm
Description

GB / T 31485 PLC Remote Control Sealed Water Immersion Testing Equipment for Electric Vehicle Battery

Product description:

Sealed water immersion test machine seawater immersion tank is mainly used for simulating a single battery or battery module immersed in seawater components at room temperature for 2h (seawater as a simulated seawater composition, a concentration of 3.5% NaCl solution), the water depth sufficient to submerge the test Of the single battery or battery module. Power battery seawater immersion testing machine to meet: GB / T 31485-2015 "electric vehicle battery safety requirements and test methods".

Specification:

The maximum weight of the test piece: 100kg:

The largest specimen size: W500 * D500 * H500mm

Test sample: can take into account the single battery, battery module seawater immersion test

Sink maximum inner box size: W600 * D600 * H1000mm

Sink material: SUS # 304 stainless steel, thickness 3.0mm

Time setting: 0 ~ 9999h / m / s According to test requirements can be set free

Battery Plating Material: SUS # 304 stainless steel

Power supply: 1∮, AC220V ± 10%, 50Hz ± 2%

PLC Remote Control Sealed Water Immersion Testing Equipment For Electric Vehicle Battery
