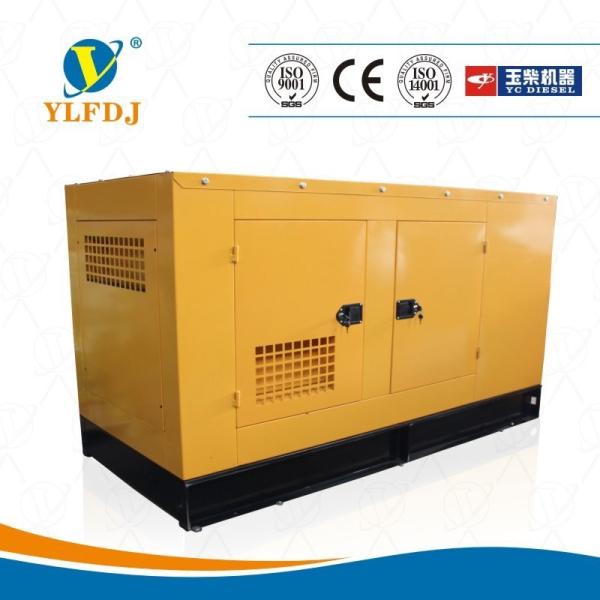

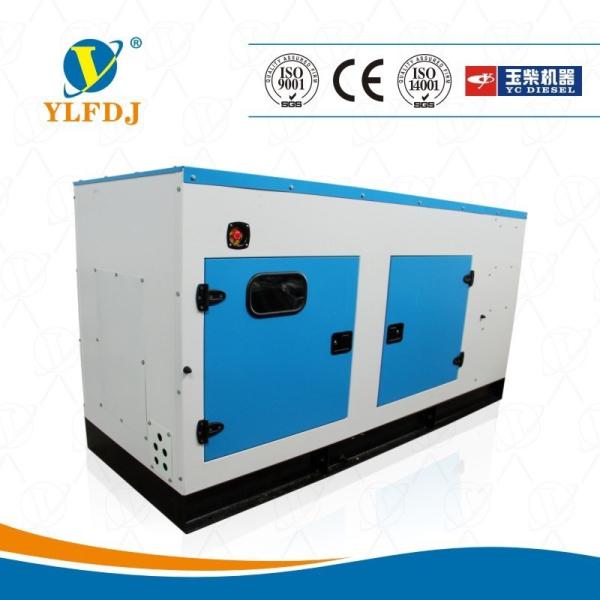

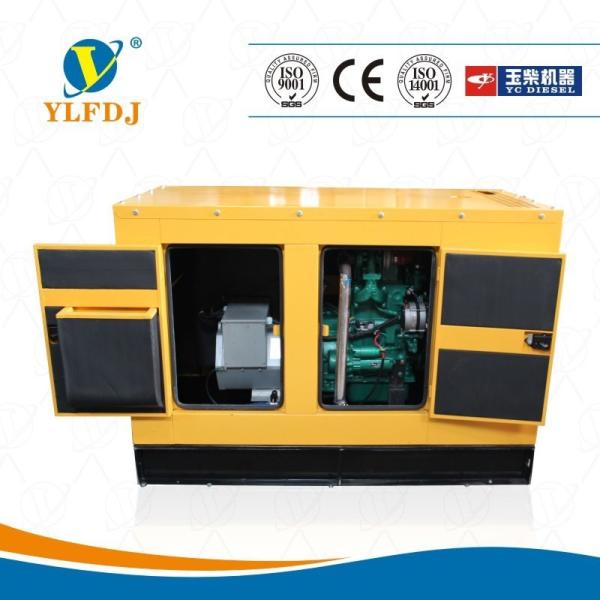

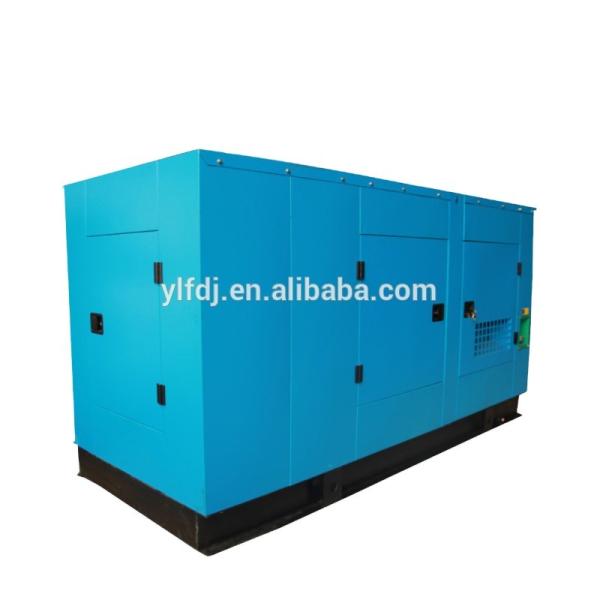

YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YC4D60-D25
Certification :
ISO CE
Packaging Details :
Packaging Detail: Packed with foam or plywood .
Supply Ability :
200 Set/Sets per Month
Price :
$4,750.00/sets 1-1 sets
MOQ :
1
Warranty :
1 year or 1000 hours
Rated Voltage :
400/230V
Rated Current :
72A
Speed :
1500rpm/1800rpm
Frequency :
50hz/60hz
Brand :
YLFDJ
Color :
As Customer require
Controller :
DSE / Stanford / Engga / Stanford / Yingli
Control mode :
Auto / Manul
Cooling System :
Water cooled
Starting Method :
By Battery
Port :
GUANGZHOU, SHENZHEN,FOSHAN
Description

37.5KVA/30KW Yuchai silent Diesel Generator Set Made in China 50/60HZ

YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVAYC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVAYC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVAYC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVAYC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA

Genset Model YLGF-30YC
Genset Power Capacity (kw/kva) 30/37.5
Rated Voltage (V) 400/230
Rated Current (A) 54
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 2300 x 960x 1500
Gross Weight (kg) 1300
Engine Brand YUCHAI
Diesel
Engine		 Engine Model YC4D60-D25
Prime Power (kw) 44
Engine Structure 4 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 102*118
Displacement (L) 3.8
Compression Ratio /
Lube Capacity (L) 10
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 220
Lube Consumption (g/kw.h) 0.5%
Rotating Speed (rpm) 1500/1800
Speed Governing machinery speed governor
Starting Method By 24V batteries
Alternator Brand YLFDJ
Alternator Alternator Model YL-30
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand HGM4010


Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).


YC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVAYC4D60-D25 Yuchai 30kw Diesel Generator Silent 37.5KVA
