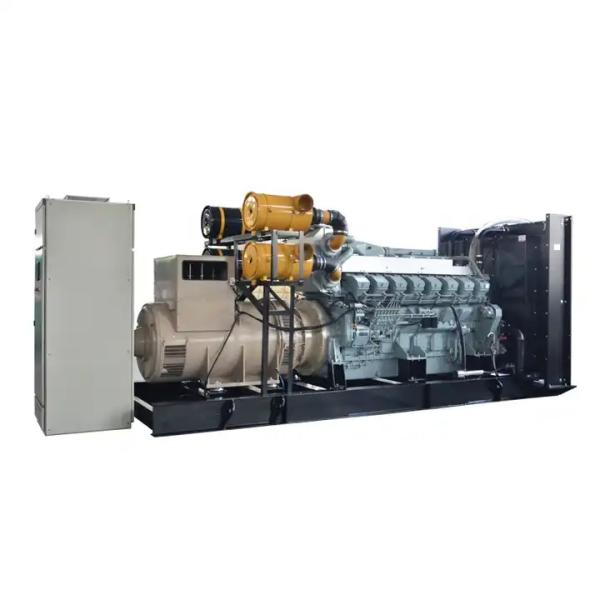

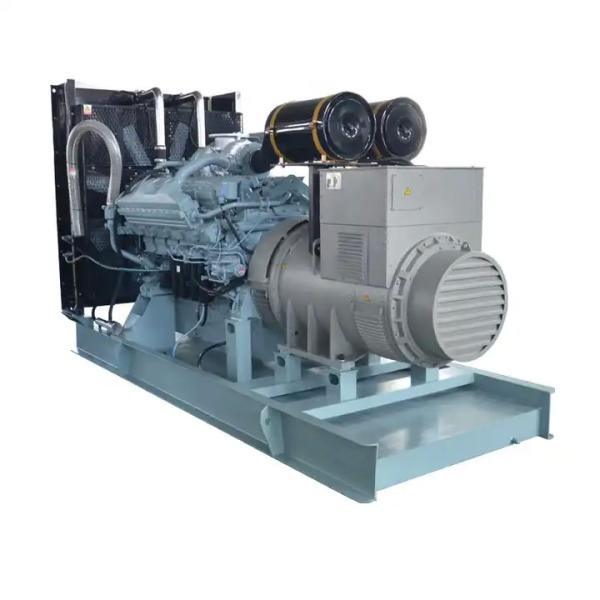

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva
Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva
Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva
Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YLGF-1300SM
Packaging Details :
Packing: foam and PE films.
Supply Ability :
500 Set/Sets per Month
Price :
$152,000.00/sets 1-2 sets
Certification :
ISO CE
MOQ :
1
Warranty :
1000 working hour -1year
Rated Voltage :
220V, 230V, 380v, 400V
Rated Current :
2340
Speed :
1500RPM, 1800RPM
Starting system :
Auto Start, Remote Start, 24V DC Electric Start
Type :
Open Frame, OpenType
Weight :
6700KG
Cooling System Type :
Water cooling system
Alternator brand :
Faraday
Engine Brand :
SME
Product Name :
YLGF-1300SM
Controller :
Smartgen
Engine Model :
S16R-PTA-C
Cooling system :
Closed Water-cooling System
Phase :
3-phase 4-wire
Rated Power :
Rated Power
Engine type :
4-cycle Water-cooled Diesel Engine
Port :
FOSHAN / GUANGZHOU / SHENZHEN
Description

SME Diesel Electric Generator 1300kw 1625kva S16R - PTA - C Shang chai SDEC Power Generator Genset

Product Description

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva

Genset Model YLGF-1300SM
Genset Power Capacity (kw/kva) 1300/1625
Rated Voltage (V) 400/230/110
Rated Current (A) 2340
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 3077*1435*1810
Gross Weight (kg) 6700
Engine Brand SME
Diesel
Engine		 Engine Model S16R-PTA-C
Prime Power (kw) 1450/1590
Engine Structure 16 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 170*180
Displacement (L) 65.37
Compression Ratio 14:1
Lube Capacity (L) 230
Fuel System PT type fuel injection pump
Fuel Consumption (L/h) 351
Lube Consumption (g/kw.h) 0.4
Rotating Speed (rpm) 1500
Speed Governing electric speed governor
Starting Method By 24V batteries
Alternator Brand Faraday
Alternator Alternator Model FD7C-4
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand HGM6120CAN
Packaging & Shipping

Packing: foam and PE films.

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva

Our Services

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva

Company Information

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kvaMitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva

FAQ

Mitsubishi S16r-Pta-C Sdec Genset Diesel Engine 1300kw 1625kva
