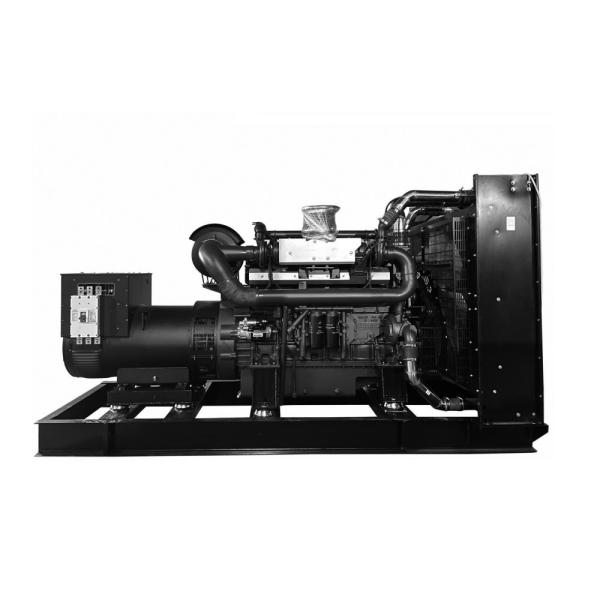

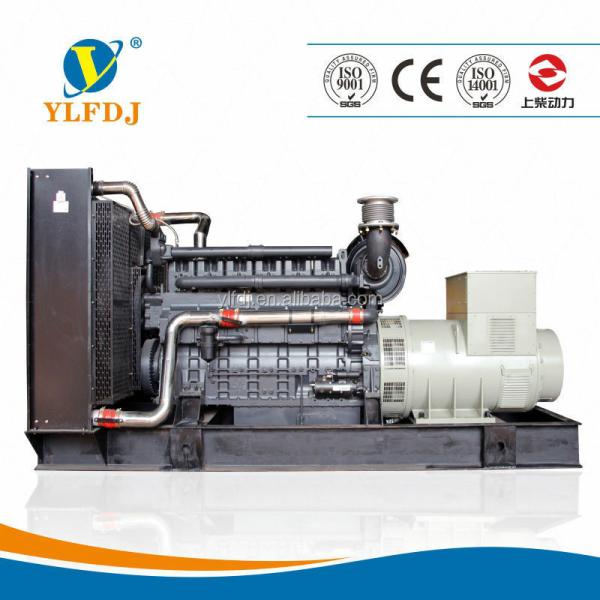

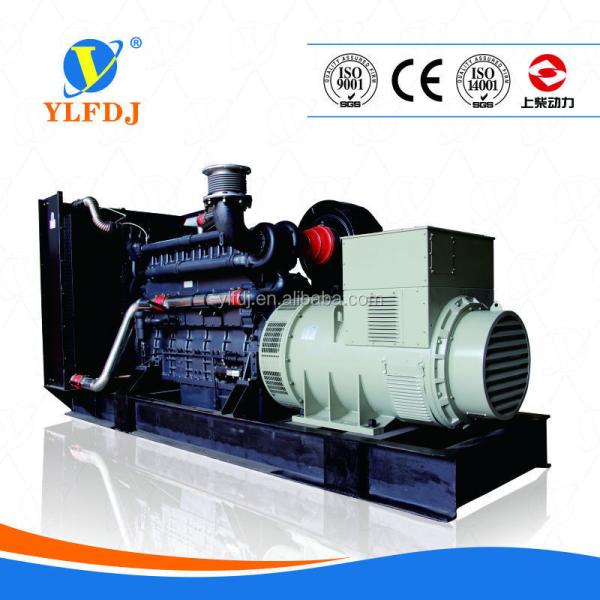

6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YLGF-560SC
Certification :
ISO CE
Packaging Details :
Export standard plywood case package
Supply Ability :
300 Set/Sets per Month
Price :
$38,000.00/sets 1-1 sets
MOQ :
1
Warranty :
1 year or 1000 hours
Rated Voltage :
230V/400V/110V
Rated Current :
1008A
Speed :
1500RPM/1800RPM
Frequency :
50HZ/60HZ
Product Name :
YLFDJ
Alternator :
YINGLI
Engine :
SDEC
Type :
Silent(super Silent)or Open
Controller :
Smartgen/Deepsea
Phase :
3 Phase 4 Wire
Port :
Guangzhou,SHENZHEN,FOSHAN
Description

560kw 700KVA Shang chai generator set

6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator6KTAA25-G38 560kw SDEC Diesel Generator 700kva Generator

Genset Model YLGF-550SC
Genset Power Capacity (kw/kva) 550
Rated Voltage (V) 400/230/110
Rated Current (A) 990
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 3500 x 1500x 1950
Gross Weight (kg) 4800
Engine Brand SHANGCHAI(SDEC)
Diesel
Engine		 Engine Model 6KTAA25-G38
Prime Power (kw) 616
Engine Structure 12 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 170*185
Displacement (L) 25.2
Compression Ratio 17:1
Lube Capacity (L) 70
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 208
Lube Consumption (g/kw.h) 0.5%
Rotating Speed (rpm) 1500/1800
Speed Governing machinery speed governor
Starting Method By 24V batteries
Alternator Brand YLFDJ
Alternator Alternator Model YLW-550
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand ZZ6110


Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.

Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs

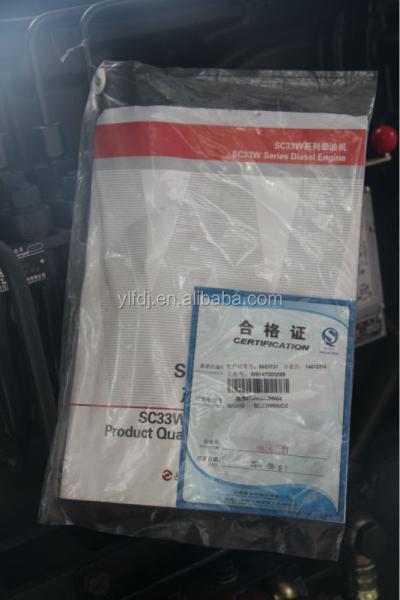

5.The tool kit and 1 set of manuals (English version).
