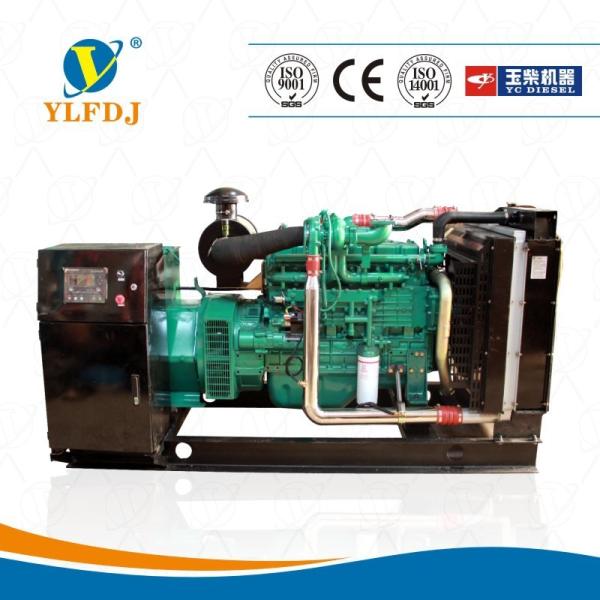

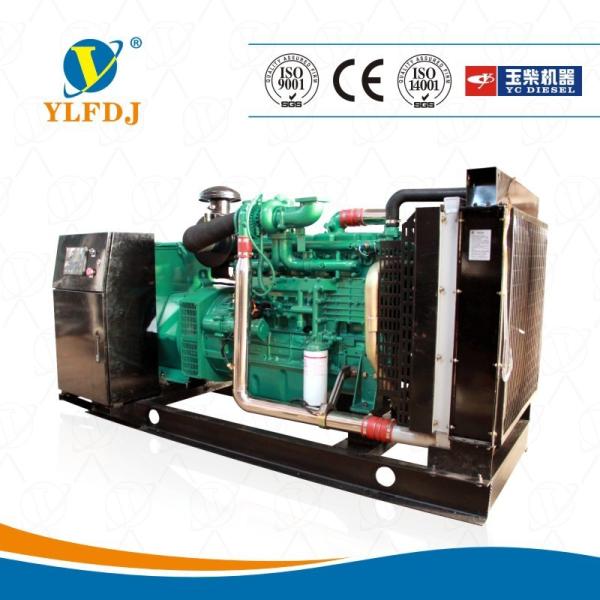

YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YC4A100Z-D25
Packaging Details :
Packaging Detail: Packed with foam or plywood .
Supply Ability :
200 Set/Sets per Month
Price :
$5,150.00/sets 1-1 sets
Certification :
ISO CE
MOQ :
1
Warranty :
1 year or 1000 hours
Rated Voltage :
400/230V
Rated Current :
108A
Speed :
1500rpm/1800rpm
Frequency :
50hz/60hz
Starting system :
24V DC Electric Start
Type :
Open Frame
Cooling System Type :
Water cooling system
Brand :
YLFDJ
Color :
As Customer require
Controller :
DSE / Stanford / Engga / Stanford / Yingli
Control mode :
Auto / Manul
Cooling System :
Water cooled
Starting Method :
By Battery
Port :
GUANGZHOU, SHENZHEN,FOSHAN
Description

Chinese Generator Manufacture Yuchai 60KW Generator

YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva

Genset Model YLGF-60YC
Genset Power Capacity (kw/kva) 60/75
Rated Voltage (V) 400/230
Rated Current (A) 108
Rated Frequency (Hz) 50/60
Rated Speed (rpm) 1500/1800
Power Factor / Phase Cos 0.8 Lagging, 3 phase
Cooling System Closed cycle water-cooled with fan,water tank
Overall Dimension (L×W×H) (mm) 1850 x 900x 1400
Gross Weight (kg) 950
Engine Brand YUCHAI
Diesel
Engine		 Engine Model YC4A100Z-D25
Prime Power (kw) 77
Engine Structure 4 Cylinder,Vertical,Inline,4 stroke
Bore×Stroke (mm) 110*125
Displacement (L) 4.75
Compression Ratio 17.5:1
Lube Capacity (L) 11.5
Fuel System PT type fuel injection pump
Fuel Consumption (g/kw.h) 214
Lube Consumption (g/kw.h) 0.5%
Rotating Speed (rpm) 1500/1800
Speed Governing Electronic speed governor
Starting Method By 24V batteries
Alternator Brand YLFDJ
Alternator Alternator Model YL-60
Insulation Class Class H
Steady Voltage Regulation ≤ +/- 0.5%
Instant Voltage Ragulation -15%~+20%
Voltage Fluctuation Rate ≤ +/- 0.5%
Steady Frequency Regulation ≤ +/- 0.5%
Instant Frequency Ragulation -7%~+10%
Phase/Connection Type 3 phase 4 wire/Y type
Controller Controller Brand HGM110


Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).


YC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kvaYC4A100Z-D25 Yuchai 60kw Diesel Generator 75kva
