YC6C1660-D31 yuchai generator 1000KW 1250KVA For Business Standby
YC6C1660-D31 yuchai generator 1000KW 1250KVA For Business Standby
Specifications
Brand Name :
YLFDJ
Model Number :
YLGF-100
Certification :
ISO CE
Place of Origin :
China
MOQ :
1
Price :
USD60000-80000/SET
Delivery Time :
25 working days
Packaging Details :
foam and PE films or plywood
Rated voltage :
110-480V,230/400V,220V / 380V
Frequency :
50/60HZ
Speed :
1500/1800rpm
Rated current :
Cheap Diesel Generator
Output type :
AC Three Phase
Rated power :
6kva-3000kva
Warranty :
12 Months/1000 Hours
Alternator :
SLG/Stamford/Marathon/Meccatle/Leroy-somer
Controller :
Smartgen/ Deepsea etc.
Product name :
1000kw Contaierized Yuchai 1250kva silent diesel generator set
Type :
Silent/Open,4-stroke
Control panel :
LCD Digital Display,Deepsea,Smartgen
Options :
Battery charger/ATS/Remote control
Color :
Customers' Requirement
Engine :
YUCHAI
Cooling method :
Water-cooled
Fuel tank :
8-10hours
Generator type :
Silent,Trailer,Open,containerized
Engine model :
YC6C1660-D31
Description

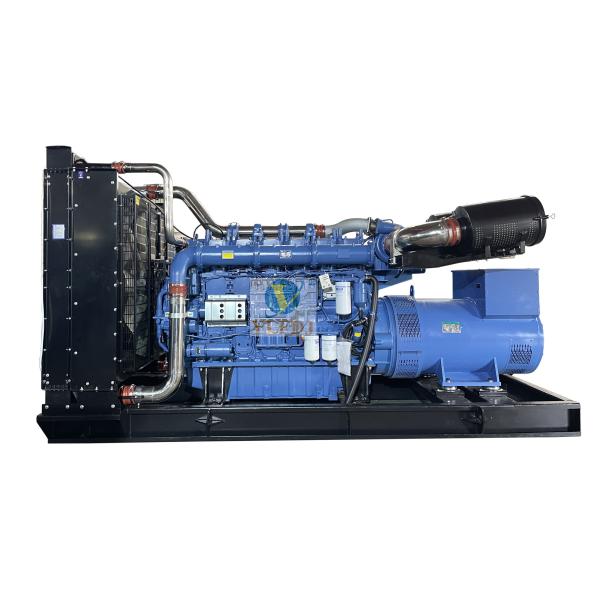

YCEC 1250KVA Yuchai YC6C1660-D31 Diesel Generator For Business Standby Or Used in Breeding, Farms,

//Diesel generator set
Genset Model YLGF-1000YC Frequency drop ≤5% Relative frequency tolerance band 2.00%
Genset Power(kva) 1250 Steady-state frequency band ≤1.5% Steady-state voltage deviation ≤±2.5%
Rated Voltage(v) 220/400 Relative frequency set drop range ≥3.5% Voltage imbalance degree 1.00%
Rated Current(A) 1800 Rative frequency set rise range ≥2.5% voltage recovery time ≤6s
Rated Frequency(Hz) 50 Transient frequency bias 100% sudden reduction power ≤+12% Voltage modulation 0.30%
Rated Speed(rpm) 1500 Relative voltage setting range ≤±5%
Power Factor(Cos∮) 0.8 Lagging Rate of voltage-setting change 0.2~1%/s
Phase 3 Phase 4 Wire The sudden power ≤-10% Transient voltage deviation 100% sudden reduction power ≤+25%
Dry weight 13000
LxWxH 6300*2200*2700 Frequency recovery time ≤5s The sudden power ≤-20%
//Engine technical parameters
Manufacturer Yuchai Maximum allowable air intake resistance (clean filter element)(kPa) 10kPa Fuel consumption
Model YC6C1660-D31
Main / standby power(KVA) 1361 air inlet system Turbocharged&Intercooled engine output L/h g/kw·h
Engine Structure Form Four-stroke Maximum exhaust temperature 450℃ 110% 543 204
Number of cylinders v-16 Lubricating oil specifications CF-40 100% 495 204
Displacement(L) 50 Lubricating oil grade 15W 75% 384 211
cylinder diameter(mm) 159 Fuel specification & grade international 0# diesel 50% 275 227
Stroke(mm) 159 fuel consumption rate(g/kw·h) 204 25% 160 263
compression Ratio 13.9:1 Maximum lubricating oil temperature 105℃
Speed(rpm) 1500 fuel system Cummins PT system
Speed regulation electronic fuel flow(L/h) 495
cooling water-cooled start rated voltage(V) DC24
engine weight (KG) 5561 Total lubrication system capacity(L) 176.8
//Generator technical parameters
generator mark YINGLI NO. YLW-1000 Insulation / temperature rise H/H
Rated power (kW) 1000 Rated power (kva) 1250 rated voltage (V) three-phase 400
modulus of a machine (%) 93.6 Power factor (cos φ) 0.8 cooling-down method Air cooling
levels of protection IP23 voltage regulator AVR Exciting magnetic way brushless excitation
Rated rotation speed (rpm) 1500 Bearing quantity Single bearing attended mode Y-type connection
//Control System
Brand SmartGen Kw/Amp detecting & Display Yes Digital Input 5
Model HGM6120CAN Monitor Interface Yes Relay Output 6
Display LCD(132*64) Programming Interface USB/RS485 Analogue Input 3
Operration panel silicon rubber RTC & Event Log Yes Operating Temp (-25~+70)℃
Language Chinese/English/others Scheduled Start Genset Yes CANBUS(J1939) Yes
AMF Yes Maintenance Yes
AC System 1P2W/2P3W/3P3W/3P4W DC Supply DC(8~35)V
Alternator Voltage AC(15~360)V(ph-N) Case Dimensions(L*W*H)(mm) 209*167*45
Alternator Frequency 50/60HZ Panel Cutout 186*141

Packing and Shipping:

Packaging and Shipping for Cummins Diesel Generator

Cummins Diesel Generator is packaged and shipped in accordance with industry best practices.

The product is securely packaged using high-grade materials, such as bubble wrap, cardboard, and foam.

The generator is then placed inside a wooden crate, which is banded and sealed for added protection.

The generator is shipped via a reputable freight carrier. The shipping cost depends on the size and weight of the generator,

as well as the chosen shipping method.

FAQ:

Q: What is the brand name of Cummins Diesel Generator?
A: The brand name is Minlong.
Q: Where is Cummins Diesel Generator made?
A: Cummins Diesel Generator is made in China.
Q: Does Cummins Diesel Generator have ISO9001 certification?
A: Yes, Cummins Diesel Generator is ISO9001 certified.
Q: What is the minimum order quantity for Cummins Diesel Generator?
A: The minimum order quantity is 1.
Q: What is the pricing for Cummins Diesel Generator?
A: The pricing for Cummins Diesel Generator is negotiable.
