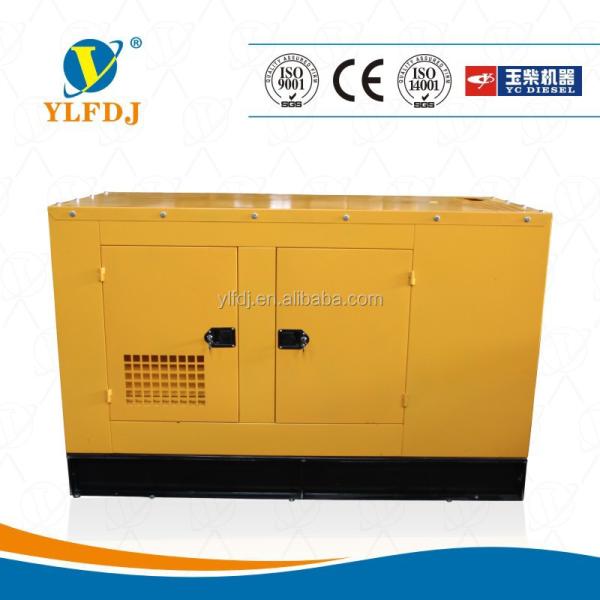

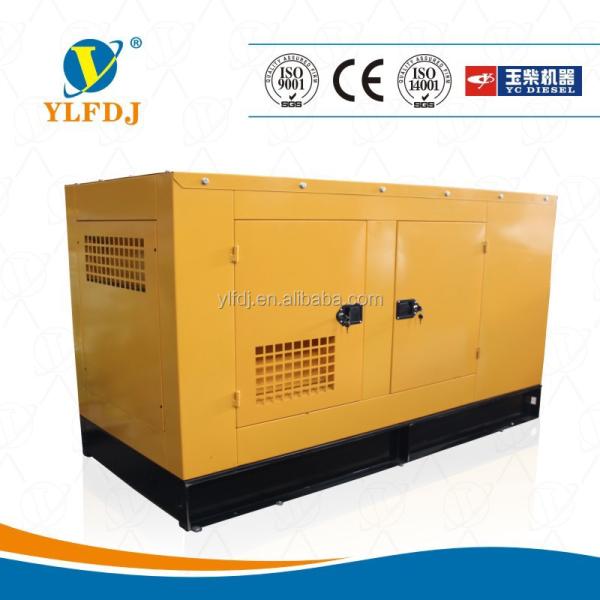

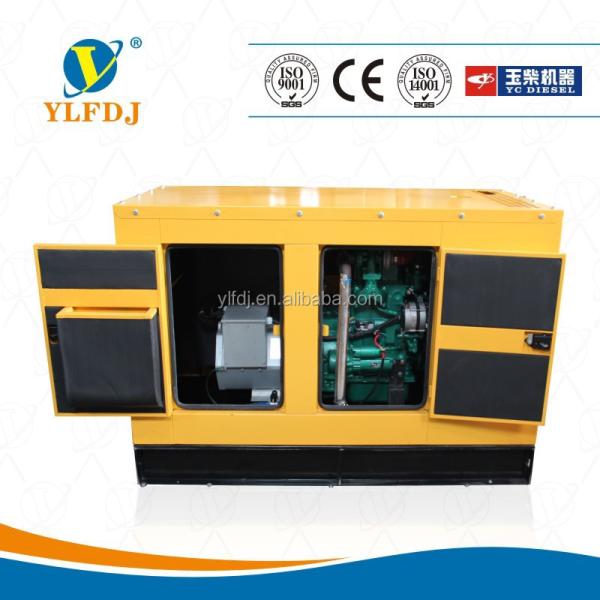

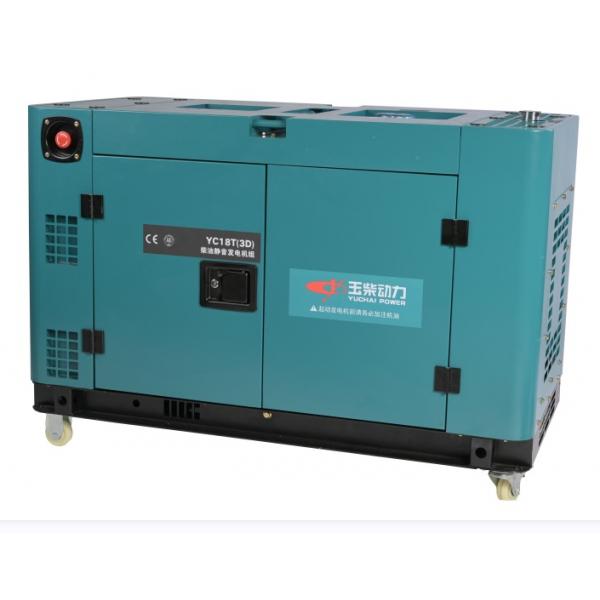

YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
Specifications
Place of Origin :
China
Brand Name :
YLFDJ
Model Number :
YC18T-3
Certification :
ISO CE
Packaging Details :
Packaging Detail: Packed with foam or plywood .
Supply Ability :
200 Set/Sets per Month
Price :
Negotiable
MOQ :
1
Warranty :
1 year or 1000 hours, 1000 Working Hours
Rated Voltage :
400/230V
Rated Current :
27A
Speed :
1500rpm/1800rpm
Frequency :
50hz/60hz
Brand :
YLFDJ
Color :
As Customer require
Controller :
DSE / Stanford / Engga / Stanford / Yingli
Control mode :
Auto / Manul
Cooling System :
Water cooled
Starting Method :
By Battery
Certificate :
CE(SGS)/ISO9001(SGS)/SASO(TUV)
Type :
Silent(super Silent)or Open
Phase :
3 Phase 4 Wire
Port :
GUANGZHOU, SHENZHEN,FOSHAN
Description

15kw 18.75KVA Yuchai silent diesel Generator

YC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator

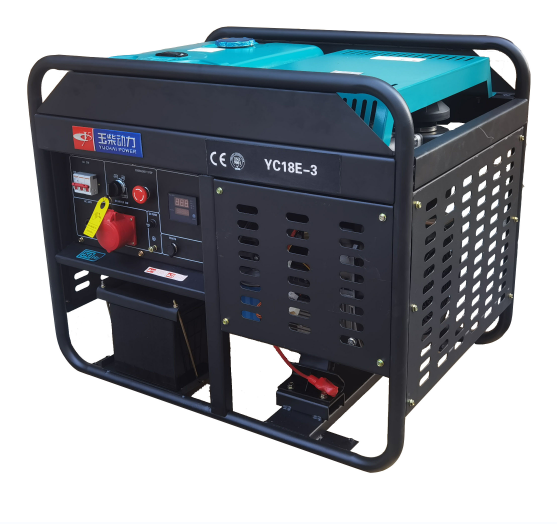

Model number YC18E-3 YC18T-3
Brand yuchai yuchai
Picture YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator YC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
Rated frequency (HZ) 50 50
Rated voltage (V) 380 380
Rated current (A) 28.5 28.5
Rated power (KW) 15 15
Rated power (Kva) 18.8 18.8
Maximum power (Kva) 20 20
Power factor (Cos Φ) 0.8 0.8
Phase number Three Phase Three Phase
Size (mm) 950*680*780 1257*670*780
Weight (KG) 280 345
Tank capacity (L) 26 25
Noise (separate @7 m) 85 75
Engine type YC292FE YC292FE
Form V-type two-cylinder, four-stroke, air-cooled,turbo charger V-type two-cylinder, four-stroke, air-cooled,turbo charger
Structure type open type Silent type
Suction mode turbo charger turbo charger
Speed regulation mode Machinery Machinery
Cylinder diameter (mm) 92 92
Piston path (mm) 75 75
Displacement (L) 0.997 0.997
Compressor 20:1 20:1
Fuel consumption rate g/kw·h 240 285
Oil Capacity (L) 2.75 2.75
Rated speed (r/min) 3000 3000
Engine power kw 18 18
Starting mode Electrical Starting Electrical Starting
Electric machine pure coppe pure coppe
Motor insulation class F F
Steady-state speed adjustment (%) 5 5
Temperature rise 40 40
Lubricating oil grade SAE 10W30 (CD level or above) SAE 10W30 (CD level or above)
Diesel type 0#(Summer) -10# (Winter) - 35# (cold) 0#(Summer) -10# (Winter) - 35# (cold)
Starting battery capacity 12V 32AH 12V 32AH
Dc output (V/A) 12V 8.3A 12V 8.3A
Controller Hanjing brand Hanjing brand
Disposition 1. Electric starting (including battery),
2.2V95 diesel engine,
3. Three-hole anti-loose,
4. Including wheels,
5. Wooden paper packaging		 1. Electric starting (including battery),
2.2V95 diesel engine,
3. Three-hole anti-loose,
4. Including wheels,
5. Wooden paper packaging

YC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator


Payment & Delivery Terms
1.Minimum Order Quantity: 1 set.
2.Packing Details: standard export packing.
3.Delivery Time: 30 working days after receipt of deposit or original L/C.
4.Payment Terms: T/T (30% as deposit,the balance to be paid before delivery) or L/C.
5.Valid time of the quotation: 30 days.
Attachment list
1.Fuel connecting pipes
2.12V DC battery c/w battery cables 2 sets
3.Industrial type silencer c/w stainless steel flexible exhaust bellows
4.Shock absorption rubbers 4 pcs
5.The tool kit and 1 set of manuals (English version).


YC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel GeneratorYC18T-3 15kw 18.8KVA Yuchai Silent Diesel Generator
