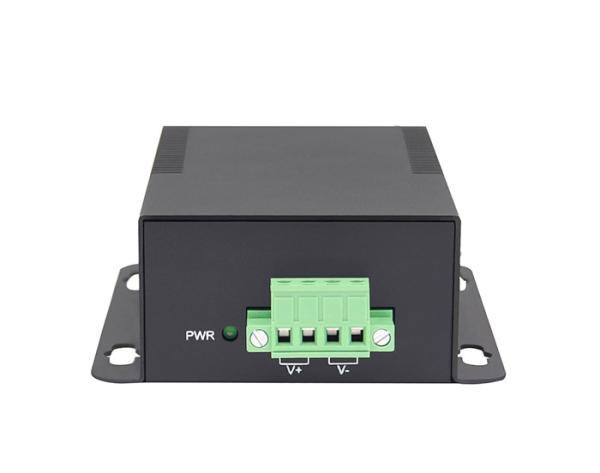

Single Port PoE Splitter 40-57V Input 5V 4A 20W Output IEEE802.3at for Non-PoE Network Device

Product features:

1. PT-PD208GM-5/9/12/24, IEEE802.3 at PoE splitter with isolated design. It works for 20/22.5/25.8/25.2W non-PoE PDs, such as network phone, wireless AP, network camera ONU (Optical Network Unit).

2. Its output power is 5Vdc 4A or 9Vdc 2.5A or 12Vdc 2.15A or 24Vdc 1.05A. It supports 10/100/1000Mbps of data speed. The power pin: 4/5(+), 7/8(-) .It is an isolated design inside to avoid high current input damage.

3. PT-PD208GM-5/9/12/24 is designed for indoor use with matel shell. It works with input voltage of 40-57Vdc from PoE injector. The effective distance is 100 meters over Cat5e/Cat6 cables. The model is small in size and easy to install with four mounting holes.

Introduction:

Procet AT PoE splitter. It output 5Vdc 4A or 9Vdc 2.5A or 12Vdc 2.15A or 24Vdc 1.05A or 24Vdc 1.05A,support 10/100/1000Mbps. It works as a converter separating power and data from PoE injector and transfer power and data to 20/22.5/25.8/25.2W non-PoE devices. Isolated design.

Products Description:

Schematic Diagram:

Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Ordering:

Order Info.: PT-PD208GM-5/9/12/24 5Vdc/4.0A/1000Mbps/4,5(+),7,8(-)

Packing: PT-PD208GM-5/9/12/24 x1
Manual x1

Stock Quantity: 100PCS

Warehouse Location: Dongguan China

Sample Delivery Time；Within 24H

Bulk Stock Delivery Time:Within 48H

Shipping Way:DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size: Qty: 20pcs/carton
G.W.: 16Kgs
Volume: 0.06 m³

Packing: Export Carton

Pallet size: 110 x 110cm

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Shipping:
